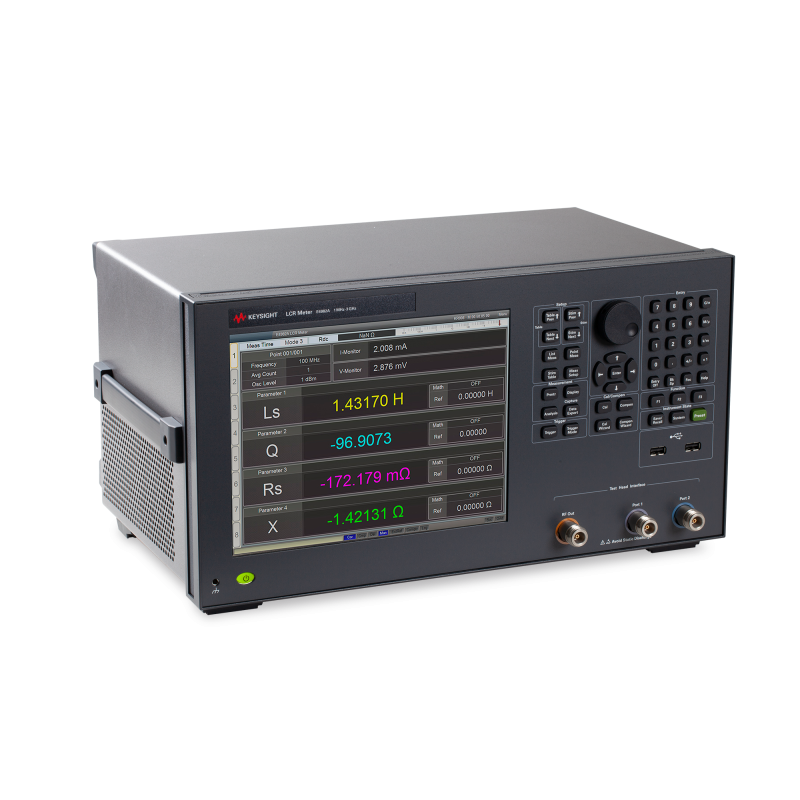

Keysight E4982A RF LCR Meter front-left three-quarter view
  • Keysight E4982A RF LCR Meter rear-panel view
  • Keysight E4982A RF LCR Meter front-left three-quarter view
  • Keysight E4982A RF LCR Meter front view

Keysight E4982A LCR Meter

E4982A
Keysight
  • Frequency options: 1 MHz to 300 MHz (030); 1 MHz to 500 MHz (050); 1 MHz to 1 GHz (100); 1 MHz to 3 GHz (300)
  • Basic measurement uncertainty (typical): 0.45%
  • DC resistance measurement range: 0.1 Ω to 100 Ω
  • DC resistance measurement resolution: 1 mΩ
  • Frequency resolution: 1 kHz with firmware B.02.20 or later; 100 kHz below B.02.20
  • Impedance measurement range (stated datasheet condition): 140 mΩ to 4.8 kΩ

Call for Price. Contact AppVision Australia.

E4982A

Click a model to email AppVision for a quote.

Model
Quantity

Description

Call for Price

Email AppVision for a quotation: E4982A

Keysight E4982A LCR Meter

Keysight E4982A LCR Meter provides lcr meter capabilities for impedance and component characterisation. Key parameters include frequency options 1 MHz to 300 MHz (030); 1 MHz to 500 MHz (050); 1 MHz to 1 GHz (100); 1 MHz to 3 GHz (300) and basic measurement uncertainty (typical) 0.45%.

Key capabilities

  • Frequency options: 1 MHz to 300 MHz (030); 1 MHz to 500 MHz (050); 1 MHz to 1 GHz (100); 1 MHz to 3 GHz (300)
  • Basic measurement uncertainty (typical): 0.45%
  • DC resistance measurement range: 0.1 Ω to 100 Ω
  • DC resistance measurement resolution: 1 mΩ
  • Frequency resolution: 1 kHz with firmware B.02.20 or later; 100 kHz below B.02.20
  • Impedance measurement range (stated datasheet condition): 140 mΩ to 4.8 kΩ
  • Impedance parameters: |Z|; |Y|; Ls; Lp; Cs; Cp; Rs; Rp; X; G; B; D; Q; θz; θy; user-defined parameter
  • Oscillator power range: –40 dBm to 1 dBm with 1 m cable and 50 Ω load

Technical specifications

Parameter Value
Frequency options 1 MHz to 300 MHz (030); 1 MHz to 500 MHz (050); 1 MHz to 1 GHz (100); 1 MHz to 3 GHz (300)
Basic measurement uncertainty (typical) 0.45%
DC resistance measurement range 0.1 Ω to 100 Ω
Impedance parameters |Z|; |Y|; Ls; Lp; Cs; Cp; Rs; Rp; X; G; B; D; Q; θz; θy; user-defined parameter
Impedance measurement range (stated datasheet condition) 140 mΩ to 4.8 kΩ
Frequency resolution 1 kHz with firmware B.02.20 or later; 100 kHz below B.02.20
Oscillator power range –40 dBm to 1 dBm with 1 m cable and 50 Ω load
Output impedance 50 Ω nominal

Official resources

Configuration, availability and support

AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact configuration, compatible accessories, Australian availability, lead time and quotation.

Product Details
E4982A

Specific References

MPN
E4982A
