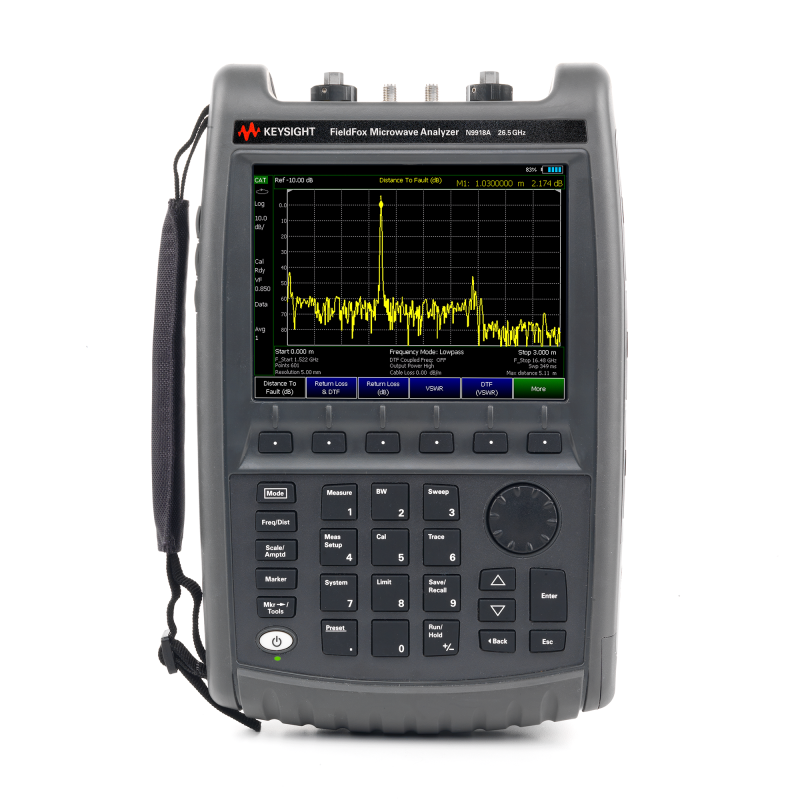

N9918A FieldFox straight front view
  • N9918A FieldFox straight front view
  • N9918A FieldFox actual-instrument rear view
  • N9918A FieldFox front-right three-quarter view
  • Keysight N9918A FieldFox side and connector view
  • Keysight N9918A FieldFox A handheld microwave analyzer straight-front view
  • Keysight N9918A FieldFox rear and stand view

Keysight FieldFox A-Series Microwave Handheld Analyzers

N9916A
Keysight
  • Analyzer configurations: Combination CAT/VNA platforms and spectrum-analyser-only platforms
  • Maximum frequency options: 14, 18, 26.5, 32, 44 or 50 GHz
  • CAT/VNA start frequency: 30 kHz on N991xA or 300 kHz on N995xA; option V5K extends N991xA to 5 kHz
  • Spectrum-analysis range: 5 kHz to the selected model maximum; option 233 enables SA on combination models
  • Resolution bandwidth: 1 Hz to 5 MHz in non-zero span and 10 Hz to 5 MHz in zero span
  • Phase noise at 1 GHz: −106 dBc/Hz specified and −111 dBc/Hz typical at 10 kHz offset

Call for Price. Contact AppVision Australia.

N9916A N9917A N9918A N9936A

N9937A N9938A N9950A N9951A

N9952A N9960A N9961A N9962A

Click a model to email AppVision for a quote.

Model
Quantity

Description

Call for Price

Select a model and email AppVision for a quotation: N9916A (default) · N9917A · N9918A · N9936A · N9937A · N9938A · N9950A · N9951A · N9952A · N9960A · N9961A · N9962A

Keysight FieldFox A-Series Microwave Handheld Analyzers

Keysight FieldFox A-Series Microwave Handheld Analyzers provides handheld rf analyser platform capabilities for S-parameter, component and network measurements. Key parameters include analyzer configurations Combination CAT/VNA platforms and spectrum-analyser-only platforms and maximum frequency options 14, 18, 26.5, 32, 44 or 50 GHz.

Key capabilities

  • Analyzer configurations: Combination CAT/VNA platforms and spectrum-analyser-only platforms
  • Maximum frequency options: 14, 18, 26.5, 32, 44 or 50 GHz
  • CAT/VNA start frequency: 30 kHz on N991xA or 300 kHz on N995xA; option V5K extends N991xA to 5 kHz
  • Spectrum-analysis range: 5 kHz to the selected model maximum; option 233 enables SA on combination models
  • Resolution bandwidth: 1 Hz to 5 MHz in non-zero span and 10 Hz to 5 MHz in zero span
  • Phase noise at 1 GHz: −106 dBc/Hz specified and −111 dBc/Hz typical at 10 kHz offset
  • VNA dynamic range: 95 dB specified on N991xA and 100 dB on N995xA under stated test conditions
  • Option 351 I/Q path: 10 MHz standard IF, up to 12.5 MSa/s I/Q pairs, 14-bit ADC and 4 MSa capture length

Model comparison — differences

Only parameters that differ between models are shown below. Shared series specifications are listed in Key capabilities above.

Model Maximum frequency Analyzer configuration
N9916A 14 GHz Combination analyzer
N9917A 18 GHz Combination analyzer
N9918A 26.5 GHz Combination analyzer
N9936A 14 GHz Spectrum analyzer
N9937A 18 GHz Spectrum analyzer
N9938A 26.5 GHz Spectrum analyzer
N9950A 32 GHz Combination analyzer
N9951A 44 GHz Combination analyzer
N9952A 50 GHz Combination analyzer
N9960A 32 GHz Spectrum analyzer
N9961A 44 GHz Spectrum analyzer
N9962A 50 GHz Spectrum analyzer

Official resources

Configuration, availability and support

AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact model and configuration, compatible accessories, Australian availability, lead time and quotation.
