Select a model and email AppVision for a quotation: N9912C (default) · N9913C · N9914C · N9915C · N9933C · N9934C · N9935C

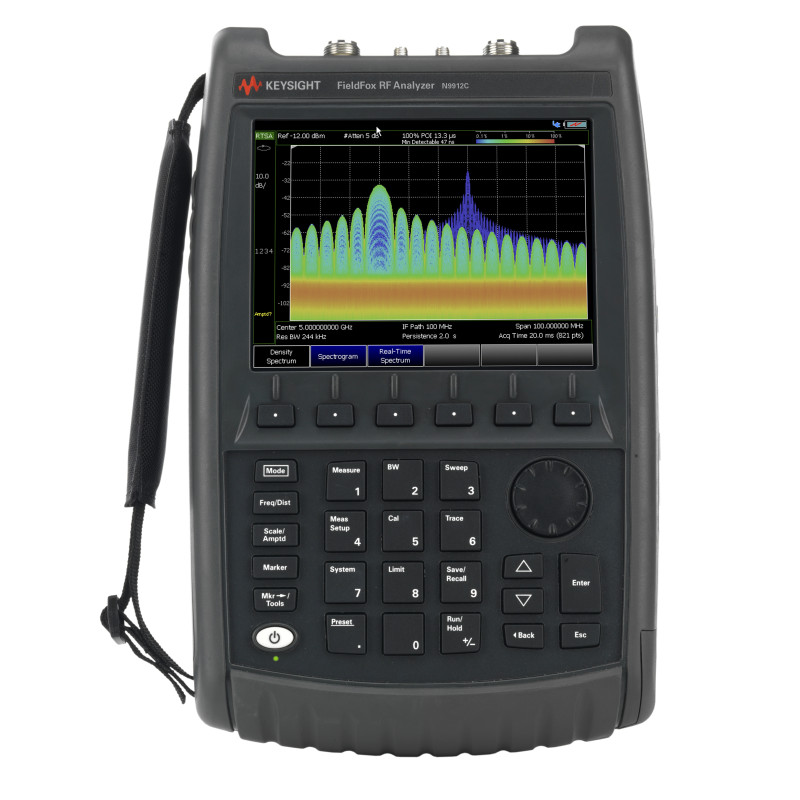

Keysight FieldFox C-Series RF Handheld Analyzers
Keysight FieldFox C-Series RF Handheld Analyzers provides handheld rf analyser platform capabilities for S-parameter, component and network measurements. Key parameters include analyzer configurations Combination analyser or spectrum-analyser-only configurations and maximum frequency options 4 GHz, 6.5 GHz or 10 GHz.
Key capabilities
- Analyzer configurations: Combination analyser or spectrum-analyser-only configurations
- Maximum frequency options: 4 GHz, 6.5 GHz or 10 GHz
- N9912C frequency options: 3 kHz to 4, 6.5 or 10 GHz with NA4/SA4, NA6/SA6 or NAX/SAX
- Standard analysis bandwidth: 10 MHz on N9913C/N9914C/N9915C and N9933C/N9934C/N9935C
- N9912C analysis bandwidth: 10 MHz standard and 40 MHz maximum with option
- Combination models: N9913C, N9914C and N9915C
- Spectrum-analyser models: N9933C, N9934C and N9935C
Model comparison — differences
Only parameters that differ between models are shown below. Shared series specifications are listed in Key capabilities above.
| Model |
Analyzer configuration |
Maximum frequency |
Analysis bandwidth |
| N9912C |
Software-defined combination analyzer |
4, 6.5 or 10 GHz by option |
10 MHz standard; 40 MHz optional maximum |
| N9913C |
Combination analyzer |
4 GHz |
10 MHz standard |
| N9914C |
Combination analyzer |
6.5 GHz |
10 MHz standard |
| N9915C |
Combination analyzer |
10 GHz |
10 MHz standard |
| N9933C |
Spectrum analyzer |
4 GHz |
10 MHz standard |
| N9934C |
Spectrum analyzer |
6.5 GHz |
10 MHz standard |
| N9935C |
Spectrum analyzer |
10 GHz |
10 MHz standard |
Official resources
Configuration, availability and support
AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact model and configuration, compatible accessories, Australian availability, lead time and quotation.
