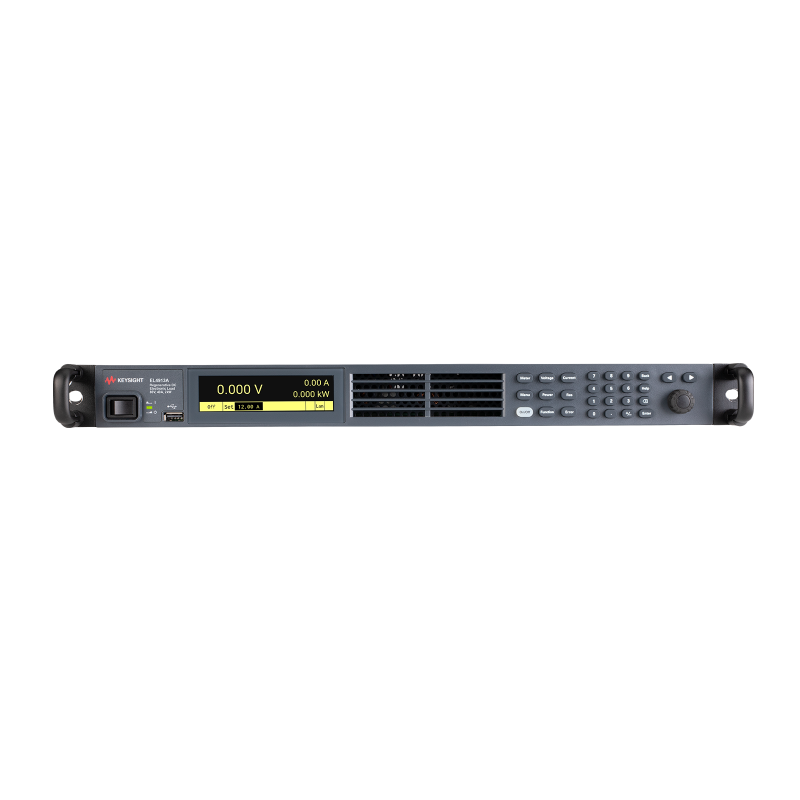

Keysight EL4913A exact-model regenerative electronic load straight front view
  • Keysight EL4913A exact-model regenerative electronic load straight front view
  • Keysight EL4913A exact-model regenerative electronic load straight rear view
  • Keysight EL4913A exact-model regenerative electronic load front-right three-quarter view

Keysight EL4900 Series Regenerative DC Electronic Loads

EL4913A
Keysight
  • Input count: One regenerative electronic-load input per model
  • Power ratings: 2 kW, 4 kW, 6 kW or 12 kW
  • Voltage configurations: 80 V, 500 V or 800 V
  • Current configurations: 8 A to 240 A depending on voltage and power rating
  • EL4943A resistance range: 0.005 to 400 ohms
  • EL4943A constant-power range: 0 to 12 kW

Call for Price. Contact AppVision Australia.

EL4913A EL4915A EL4916A EL4923A

EL4925A EL4926A EL4933A EL4935A

EL4936A EL4943A EL4945A EL4946A

Click a model to email AppVision for a quote.

Model
Quantity

Description

Call for Price

Select a model and email AppVision for a quotation: EL4913A (default) · EL4915A · EL4916A · EL4923A · EL4925A · EL4926A · EL4933A · EL4935A · EL4936A · EL4943A · EL4945A · EL4946A

Keysight EL4900 Series Regenerative DC Electronic Loads

Keysight EL4900 Series Regenerative DC Electronic Loads provides dc electronic load capabilities for power-device, supply and battery testing. Key parameters include input count One regenerative electronic-load input per model and power ratings 2 kW, 4 kW, 6 kW or 12 kW.

Key capabilities

  • Input count: One regenerative electronic-load input per model
  • Power ratings: 2 kW, 4 kW, 6 kW or 12 kW
  • Voltage configurations: 80 V, 500 V or 800 V
  • Current configurations: 8 A to 240 A depending on voltage and power rating
  • EL4943A resistance range: 0.005 to 400 ohms
  • EL4943A constant-power range: 0 to 12 kW
  • Rack height: 2U on EL4943A
  • AC input: Three-phase 380 to 520 VAC, 50/60 Hz on EL4943A

Model comparison — differences

Only parameters that differ between models are shown below. Shared series specifications are listed in Key capabilities above.

Model Maximum voltage Maximum current Input power
EL4913A 80 V 40 A 2000 W
EL4915A 500 V 12 A 2000 W
EL4916A 800 V 8 A 2000 W
EL4923A 80 V 80 A 4000 W
EL4925A 500 V 24 A 4000 W
EL4926A 800 V 16 A 4000 W
EL4933A 80 V 120 A 6000 W
EL4935A 500 V 36 A 6000 W
EL4936A 800 V 24 A 6000 W
EL4943A 80 V 240 A 12 kW
EL4945A 500 V 72 A 12000 W
EL4946A 800 V 48 A 12000 W

Official resources

Configuration, availability and support

AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact model and configuration, compatible accessories, Australian availability, lead time and quotation.

Product Details
EL4913A

Specific References

MPN
EL4913A
