Call for Price. Contact AppVision Australia.
Click a model to email AppVision for a quote.
Select a model and email AppVision for a quotation: N3300A (default) · N3301A · N3302A · N3303A · N3304A · N3305A · N3306A · N3307A

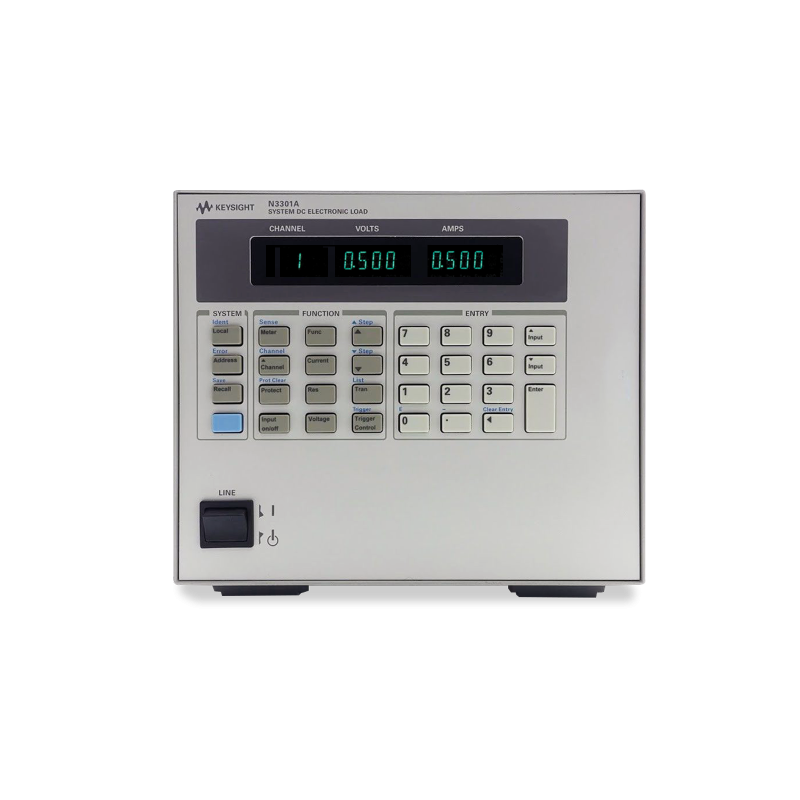

Keysight N3300 Series Modular DC Electronic Loads provides electronic-load mainframes and modules capabilities for power-device, supply and battery testing. Key parameters include slots / capacity by model N3300A: 6; N3301A: 2 and maximum voltage by model N3302A: 0 to 60 V; N3303A: 0 to 240 V; N3306A: 0 to 60 V; N3307A: 0 to 150 V.
Only parameters that differ between models are shown below. Shared series specifications are listed in Key capabilities above.
| Model | Slots / capacity | Chassis format |
|---|---|---|
| N3300A | 6 | Full rack |
| N3301A | 2 | Half rack |
| Model | Maximum voltage | Maximum current | Input power |
|---|---|---|---|
| N3302A | 0 to 60 V | 0 to 30 A | 150 W |
| N3303A | 0 to 240 V | 0 to 10 A | 250 W |
| N3304A | 0 to 60 V | 0 to 60 A | 300 W |
| N3305A | 0 to 150 V | 0 to 60 A | 500 W |
| N3306A | 0 to 60 V | 0 to 120 A | 600 W |
| N3307A | 0 to 150 V | 0 to 30 A | 250 W |
AppVision Australia is an authorised Keysight distributor. Contact AppVision to confirm the exact model and configuration, compatible accessories, Australian availability, lead time and quotation.
Specific References
Reference: M9714
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1200W 0-150V 0-240A
Reference: M9718B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: SDL1030X
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 300 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 0.1 mV, 0.1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to 500...
Reference: M9718D
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-500V 0-240A
Reference: AC/DC Source and Load
Brand: BriPower
· Compact modular design, 15KVA in 4U · Bi-directional design · Output: AC, DC, AC+DC · Single unit: maximum 15KW, 450V L-N, 30A/ph, DC-1KHz output · Single phase, 3-phase, split phase, and multi-channel output · Various modes: Regenerative AC/DC source, regenerative AC/DC load, BiPolar DC source · Regenerative RLC load in full frequency range · True...
Reference: N62400
Brand: NGI
N62400 series is developed based on NGI's years of experience in testing for fuel cell. It is with high accuracy, high reliability and high cost performance. N62400 can load high current under ultra-low voltage. The minimum operating voltage when loading 1200A can be low to 0.2V. It is designed in a 19 inch 3U chassis, which is available for benchtop use...
Reference: M9835
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over-current, over-voltage, overpower, overheating, and polarity reversal protection Available with RS232/RS485/USB serial interfaces. Supports remote voltage compensation and multi-data storage 15 kW 0-150V 0-500A
Reference: M9716B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 2400W 0-500V 0-120A
Reference: SDL1030X-E
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 300 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 1 mV, 1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to 500...
Reference: AC/DC Power Source & Load
Brand: BriPower
· Modular design, output power from 15kVA to 1080kVA · Bi-directional AC/DC power source, seamless transition between source and sink modes · Regenerative AC/DC load function · Output: AC, DC, AC+DC · Using true current feedback control when working in CC mode · Frequency Range: DC~ 5kHz · Soft start: effectively restrain the impulse current when power...
Reference: M9712B30
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 300W 0-500V 0-30A
Reference: N61100
Brand: NGI
N61100 series is a multi-channel DC programmable electronic load, with high reliability, high integration, high cost performance and full features. It is tailored for integrated applications, featuring in high communication response speed and high stability. N61100 series is with 19-inch 3U size, up to 12 channels, and supports LAN, RS232, and RS485...
Reference: M9718E
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-600V 0-120A
Reference: M9715B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-500V 0-120A
Reference: N6791A
Brand: Keysight
Outputs / inputs: 1 Maximum voltage: 0 to 60 V Maximum current: 0 to 20 A; 0 to 40 A Input power: 100 W; 200 W Operating modes: CV, CC, CR and CP Module width: Single-wide; up to four modules in a four-slot mainframe; Double-wide; up to two modules in a four-slot mainframe Call for Price. Contact AppVision Australia. N6791A N6792A Click a model to email...
Reference: M9715
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-150V 0-240A
