GORE PHASEFLEX Microwave/RF Test Assemblies, High end MM band cable, 110GHz

PHASEFLEX110G
GORE

GORE® PHASEFLEX® Microwave/RF Test Assemblies

  • torque, crush and kink resistance
  • 110 GHz test assembly
  • abrasion resistance
  • dust and moisture resistance
  • chemical resistance
  • wide temperature range
  • high connector pull strength
$715.00
Quantity
In-stock, same-day dispatch

Description

Overview

Gore offers a rugged, lightweight 110 GHz test assembly that optimizes the performance of test systems while reducing the total cost of test and ownership over time. Our assemblies provide reliable electrical performance with flexure and temperature in demanding environments.

A recent study showed that globally more than 75% of microwave/RF cable assemblies are replaced frequently due to damage during installation or operation. So, cable assemblies must be durable enough to withstand continuous movement, flexing, and exposure to environmental conditions while maintaining reliable electrical performance over time.

RUGGED CONSTRUCTION DELIVERS LONGER SERVICE LIFE

Our portfolio of GORE PHASEFLEX Microwave/RF Test Assemblies includes an 110 GHz version that can be flexed, formed, or repositioned without damage while providing excellent stability with flexure and temperature. These rugged, lightweight assemblies provide reliable electrical and mechanical performance in demanding environments for long service life. When tested, our 110 GHz test assemblies maintain low VSWR and insertion loss.

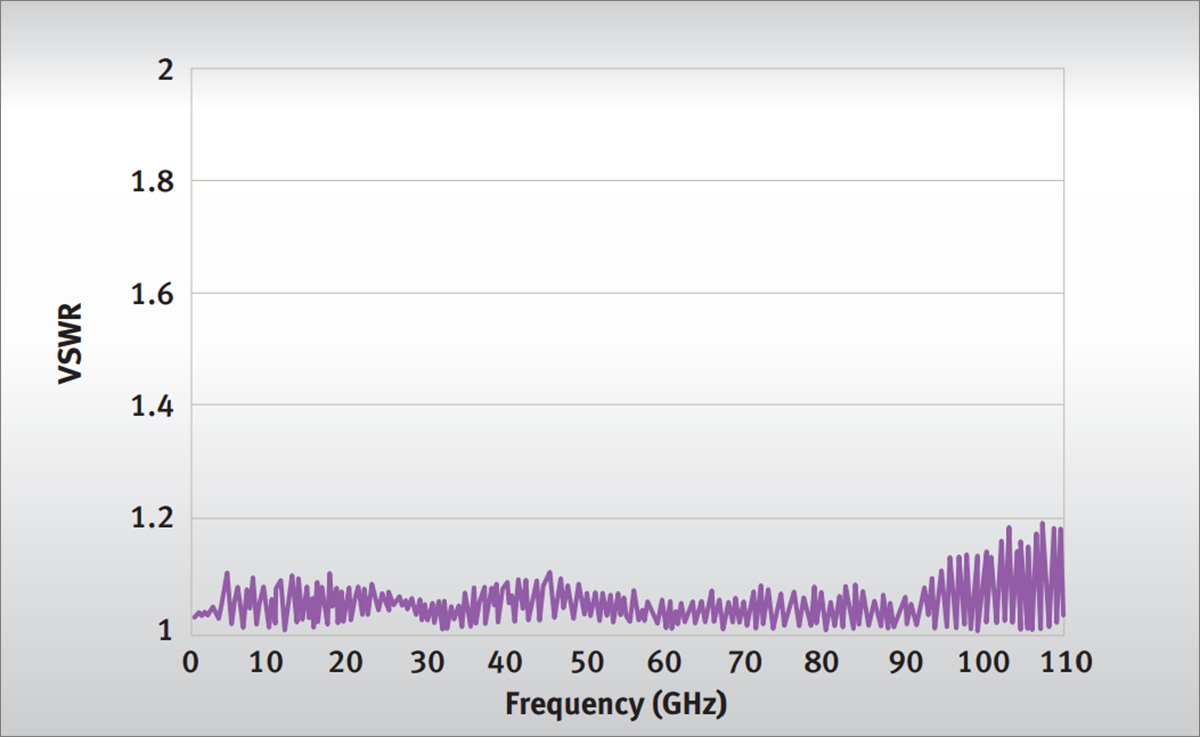

Typical VSWR and Insertion Loss of Gore’s 110 GHz test assemblies based on a 16 cm (6.3 in) assembly length.

Applications

GORE PHASEFLEX Microwave/RF Test Assemblies are engineered to perform reliably in a variety of test and measurement applications, including:

Courtesy, Keysight Technologies, Inc.

  • anechoic chambers
  • antenna ranges
  • automated test equipment
  • bench-top testing
  • electromagnetic compliance testing
  • high throughput RF production testing
  • nearfield scanners
  • portable analyzers
  • scalar network analyzers
  • test rack systems
  • vector network analyzers (VNAs)
  • wireless telecommunication module testing

Features & Benefits

GORE have engineered features for GORE® PHASEFLEX® Microwave/RF Test Assemblies that make them more durable in demanding environments. Features include:

  • torque, crush and kink resistance
  • abrasion resistance
  • dust and moisture resistance
  • chemical resistance
  • wide temperature range
  • high connector pull strength

GORE® PHASEFLEX® Microwave/RF Test Assemblies provide manufacturers with many benefits that improve electrical and mechanical performance such as:

  • consistent, repeatable measurements with stable electrical performance up to 110 GHz
  • longer service life with durable construction that resists crushing, twisting and kinking
  • enhanced phase and amplitude stability with flexure and temperature
  • increased throughput and reduced downtime with durable and reliable performance
  • a variety of connector options specifically engineered to optimize assembly performance
Product Details
PHASEFLEX110G
