Support Voltage: 3.3V, 5V;
Channels: 2;
Opening Angle: H80°x V34°;
Typical Detection Range car:40m;
Integrated Signal Processing: no;
Frequency Band: 24 GHz;
Supply Current: 75.00 mA;
Typical Detection Range person: 15m;
Tuning Range: 260MHz;
Size: 25 x 25 x 6

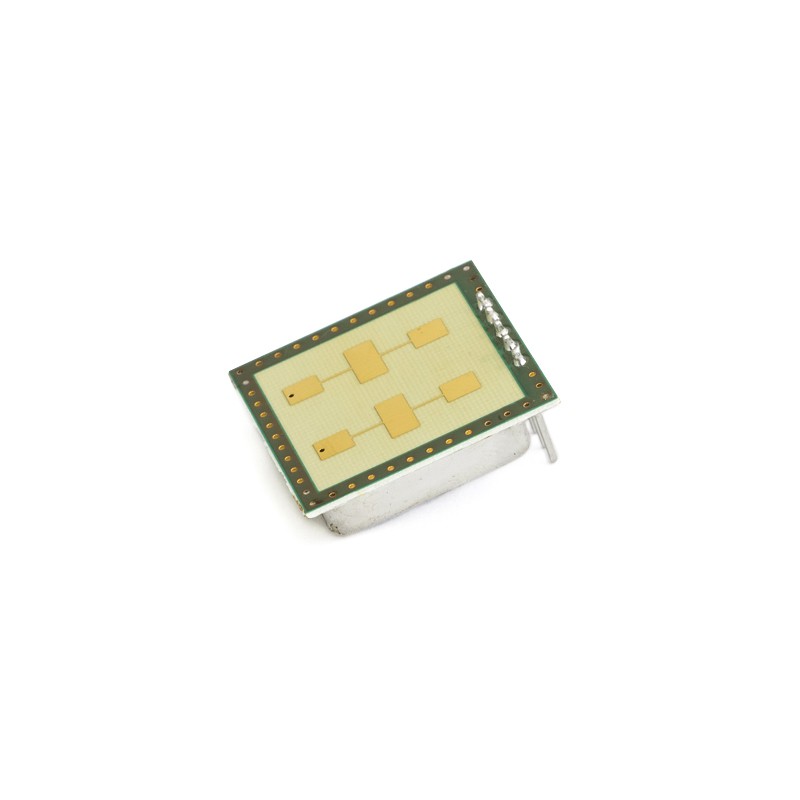

K-LC5 is an extended range dual channel Doppler Radar module with an asymmetrical beam for short range sensors. Dual IF I and Q allow movement direction detection and high performance signal processing. The FM input allows FSK or FMCW ranging applications.
An extremely slim construction with only 6 mm depth gives you maximum flexibility in your equipment design. Powerful starterkits with signal conditioning and visualization are also available. (ST100 / ST200)
Block diagram
| Model | FM Input | Supply | State |
| K-LC5-RFB-00D | yes | 5V | active |
| K-LC5-RFB-01D | no | 5V | active |
| K-LC5-RFB-00C | yes | 3.3V | active |

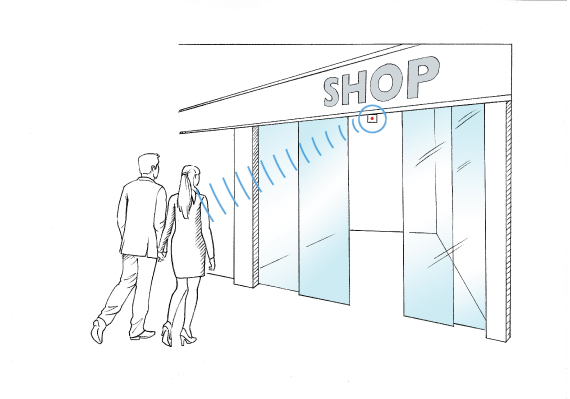

Door Opening

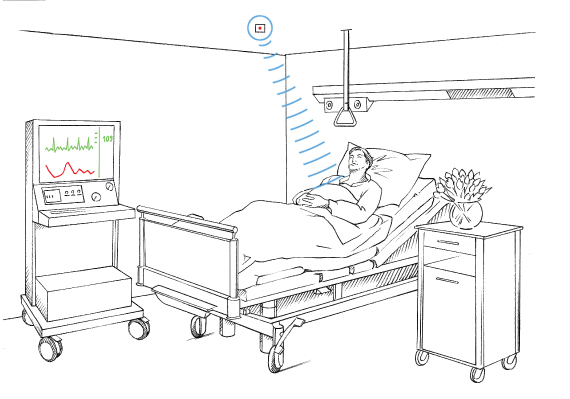

Vital Sign monitoring
• Measure heartbeat
• Breathing rate

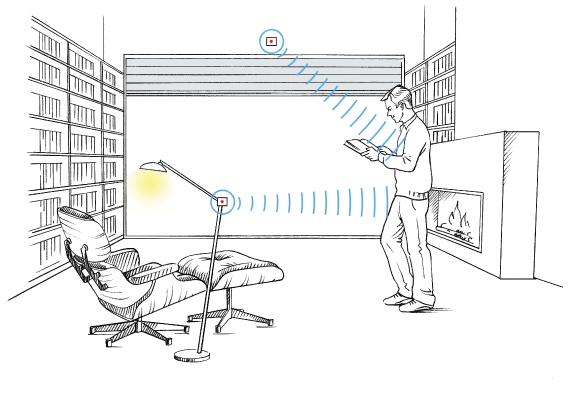

Indoor automation
• Automatic light activation
• Air-conditioning active if room is occupied

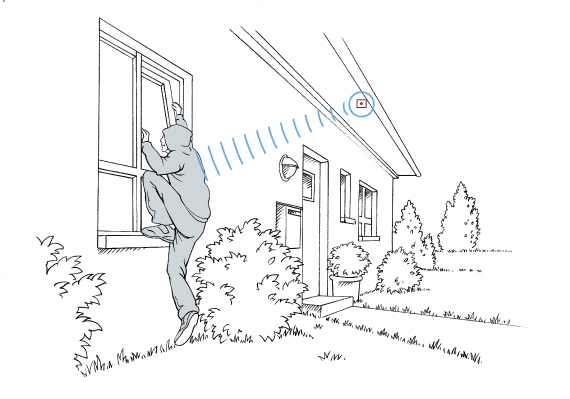

Intrusion Alarm
• Detection movement in room
• Measure distance to object

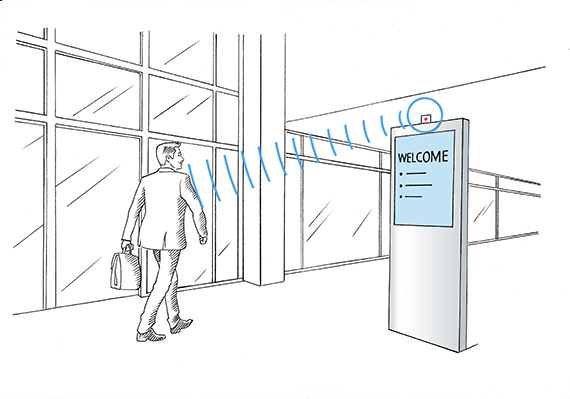

Movement detection
• Activate light on advertising boards
• Attract attention to an object
Speed measurement
• Inform driver of his actual speed
• Measure distances between vehicles
