Support Voltage: 3.3V, 5V;
Channels: 2;
Opening Angle: H80°x V12°;
Typical Detection Range car:62m;
Integrated Signal Processing: no;
Frequency Band: 24 GHz;
Supply Current: 85.00 mA;
Typical Detection Range person: 24m;
Tuning Range: 300MHz;
Size: 65 x 25 x 6

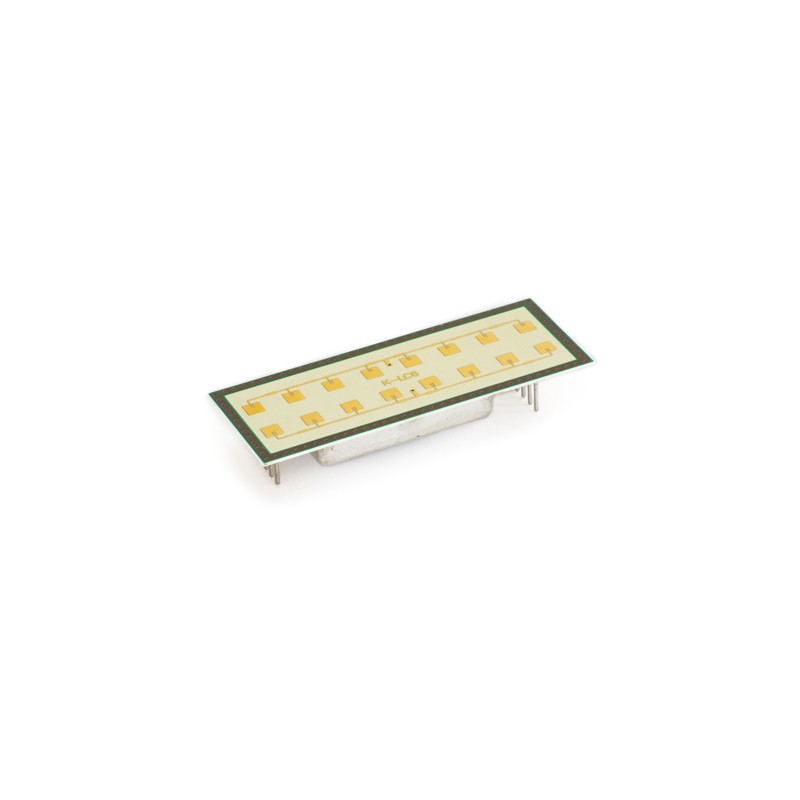

K-LC6 is a dual channel Doppler Radar module with an asymmetrical narrow beam for short to medium distance sensors. It is ideally suited for person or vehicle movement and presence sensors.
This module includes an RF low noise amplifier (LNA) for best signal to noise performance. Dual IF I and Q allow movement direction detection and high performance signal processing.
The optional internal IF amplifier is available in version
K-LC6-RFB-01x.
An extremely slim construction with only 6 mm depth gives you maximum flexibility in your equipment design.
Powerful starterkits with signal conditioning and visualization are also available (ST100 / ST200)

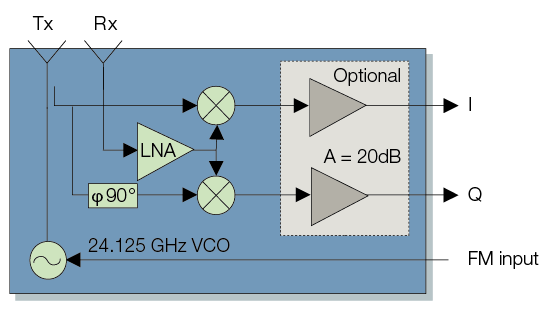

Block diagram
| Model | IF amplifier | Supply | State |
| K-LC6-RFB-00C | no | 3.3V | on request |
| K-LC6-RFB-00D | no | 5V | active |
| K-LC6-RFB-01C | yes | 3.3V | on request |
| K-LC6-RFB-01D | yes | 5V | active |
Movement detection
• Activate light on advertising boards
• Attract attention to an object
Speed measurement
• Inform driver of his actual speed
• Measure distances between vehicles
