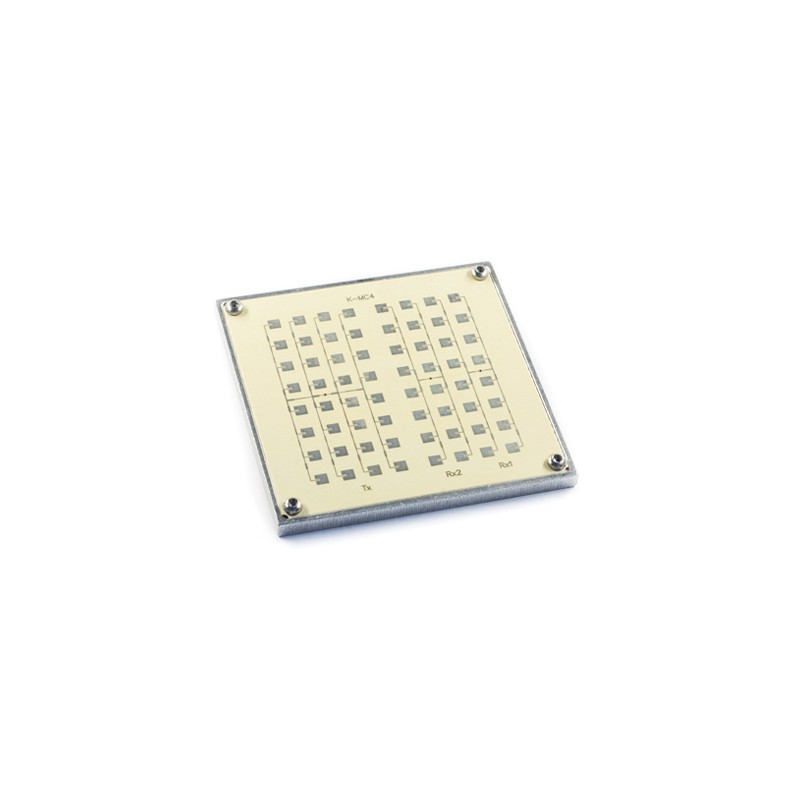

K-MC4 Radar Transceiver

Description

K-MC4 is a Doppler Transceiver with an asymmetrical beam and two receiver antennas. This configuration allows measuring the angle of moving objects. This technique is often simply called “Monopulse Radar”, but in fact it is a “Phase-Comparison Monopulse” technique

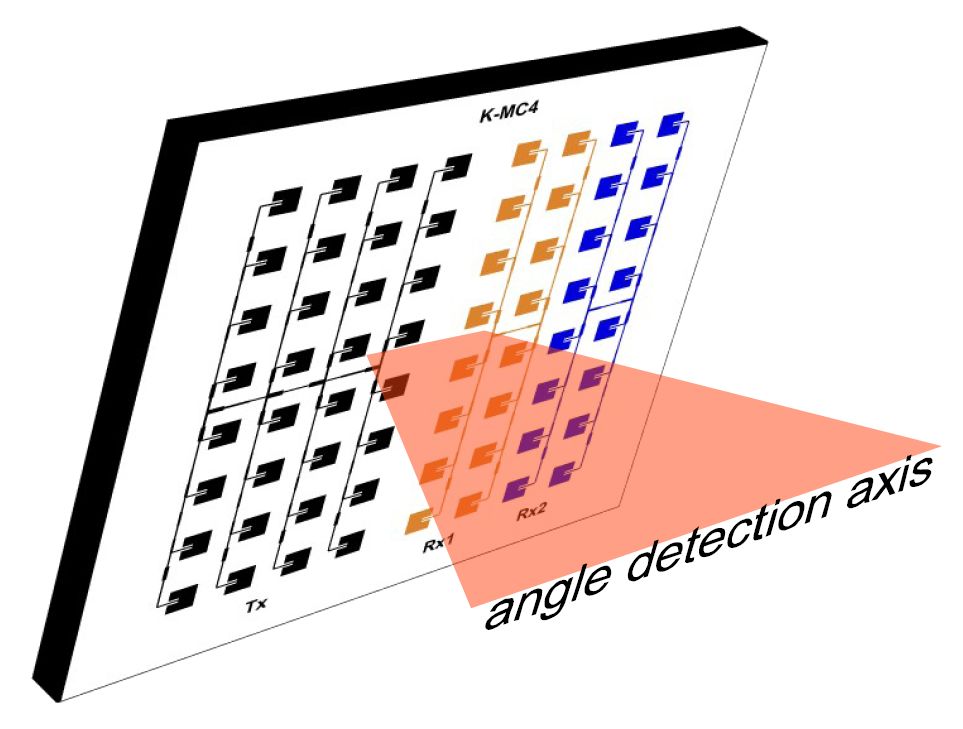

There are two receiver antennas shown here in different colors. Moving objects generate phase shifts between the 2 receiver channels.
Relation between object angle and phase shift at the two receiver channels is nearly linear: 1° object angle -> 6.7° IF phase shift.

K-MC4 contains IF preamplifiers for simplified interfacing to signal processing hardware. Large FMCW range and battery saving circuit ("RSW") make this module an exeptional choice for advanced traffic and security applications.
An extremely slim and compact construction with only 6mm depth gives you maximum flexibility in your equipment design.

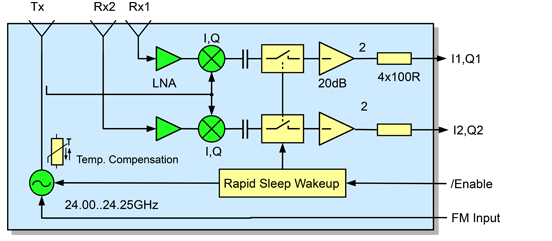

Block diagram

Typical Applications:

Intrusion Alarm

• Detection movement in room
• Measure distance to object

Movement detection

• Activate light on advertising boards
• Attract attention to an object

Speed measurement

• Inform driver of his actual speed
• Measure distances between vehicles
