Support Voltage: 24V;
Channels: 2;
Opening Angle: H25°x V12°;
Typical Detection Range car:15m;
Integrated Signal Processing: Yes;
Frequency Band: 24 GHz;
Supply Current: 300.00 mA;
Typical Detection Range person: 8m;
Tuning Range: 4000 MHz;
Size: 89 x 77 x 19

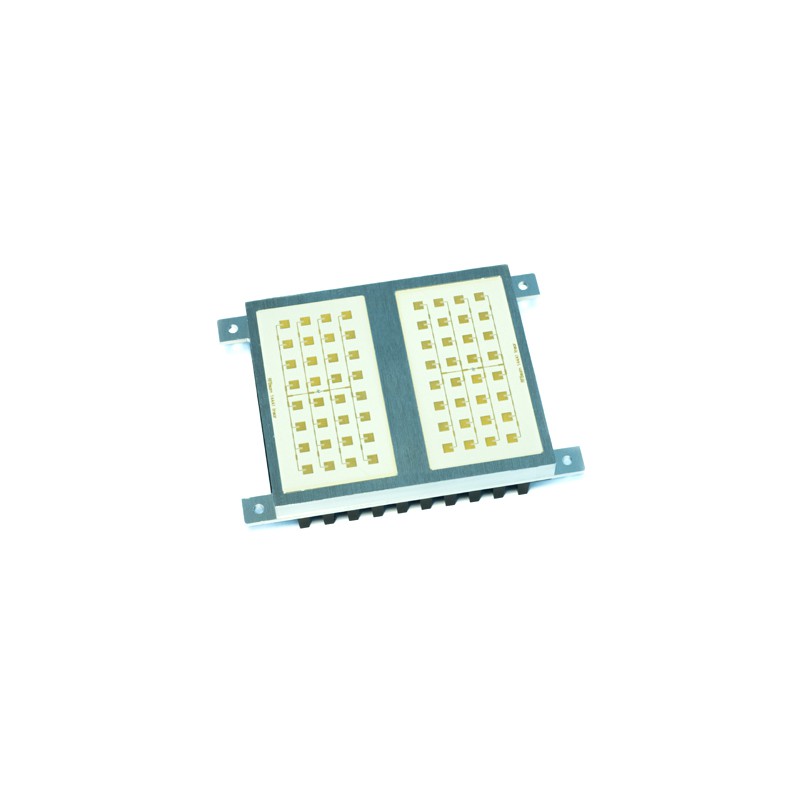

The K-XC1 is a demonstration system for a continuous wave (CW) Radar system for measuring distances to moving and stationary objects with a high resolution. It works similar to a Pulse Radar, but uses pulse compression technology to enlarge the transmitted pulse to a continuous wave signal. So it is possible to work with low power and still having a reasonable range coverage. This is called a Pseudo-Noise (PN) radar.
Indoor automation
• Automatic light activation
• Air-conditioning active if room is occupied
Intrusion Alarm
• Detection movement in room
• Measure distance to object
Reference: K-LD2
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 55.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 25 x 25 x 6
Reference: K-LC6
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V12°; Typical Detection Range car:62m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 85.00 mA; Typical Detection Range person: 24m; Tuning Range: 300MHz; Size: 65 x 25 x 6
Reference: K-LC1a
Brand: RFbeam
Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H80°x V34°; Typical Detection Range car:31m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 12m; Tuning Range: -, 180 MHz; Size: 25 x 25 x 6
Reference: K-MC3
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:180m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 70.00 mA; Typical Detection Range person: 70m; Tuning Range: 180MHz; Size: 105 x 85 x 7
Reference: K-MC1-LP
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:140m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 7.50 mA; Typical Detection Range person: 50m; Tuning Range: -MHz; Size: 65 x 65 x 7
Reference: K-MC1
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:150m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 90.00 mA; Typical Detection Range person: 56m; Tuning Range: 300MHz; Size: 65 x 65 x 7
Reference: K-LD2-EVAL
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 65.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 25 x 31 x 18
Reference: APV1231E
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H47°x V24°; Typical Detection in liner direction of moving objects :4m; Typical Detection in liner direction of static objects: 7m; Frequency Band: 24 GHz, ISM; Supply Current: 165 mA; Modulation: FMCW; Output format: Serial port ASCII; Size:2.2cm x 3.2cm
Reference: K-LC2
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:26m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 10m; Tuning Range: 140 MHz; Size: 25 x 25 x 6
Reference: K-MC4
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H30°x V12°; Typical Detection Range car:93m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 180.00 mA; Typical Detection Range person: 37m; Tuning Range: 180MHz; Size: 78 x 78 x 7
Reference: K-LD7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 30.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 38 x 25 x 14
Reference: ST100_EVAL
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Integrated Signal Processing: no; Supply Current: 200.00 mA; Size: 94 x 83 x 10
Reference: V-MD3
Brand: RFbeam
Key Features: Support Voltage: 12V, 24V; Channels: 4; Opening Angle: H60°x V36°; Typical Detection Range car:80m; Integrated Signal Processing: Yes; Frequency Band: 61 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 30m; Tuning Range: 40000 MHz; Size: 71 x 56 x 28
Reference: K-TS1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: -; Opening Angle: H30°x V30°; Typical Detection Range car:-m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 100.00 mA; Typical Detection Range person: -m; Tuning Range: 2000 MHz; Size: 103 x 76 x 11
Reference: APV1181X
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Detection in liner direction of moving objects : >8m; Detection in liner direction of static objects : >4m; Frequency Band: 24 GHz; Supply Current: 20mA(average); Modulation: FMCW; Output format: Serial port ASCII Size:5.2cm x 0.7cm
Reference: N300
Brand: AppVision
N300 is a Sea-based wind profiling radar based on millimeter wave detection technology.
Support Voltage: 24V;
Channels: 2;
Opening Angle: H25°x V12°;
Typical Detection Range car:15m;
Integrated Signal Processing: Yes;
Frequency Band: 24 GHz;
Supply Current: 300.00 mA;
Typical Detection Range person: 8m;
Tuning Range: 4000 MHz;
Size: 89 x 77 x 19
