Support Voltage: 24V;
Channels: 2;
Opening Angle: H-° x V-°;
Typical Detection Range car:-m;
Integrated Signal Processing: Yes;
Frequency Band: 24 GHz;
Supply Current: 300.00 mA;
Typical Detection Range person: -m;
Tuning Range: 4000 MHz;
Size: 89 x 77 x 19

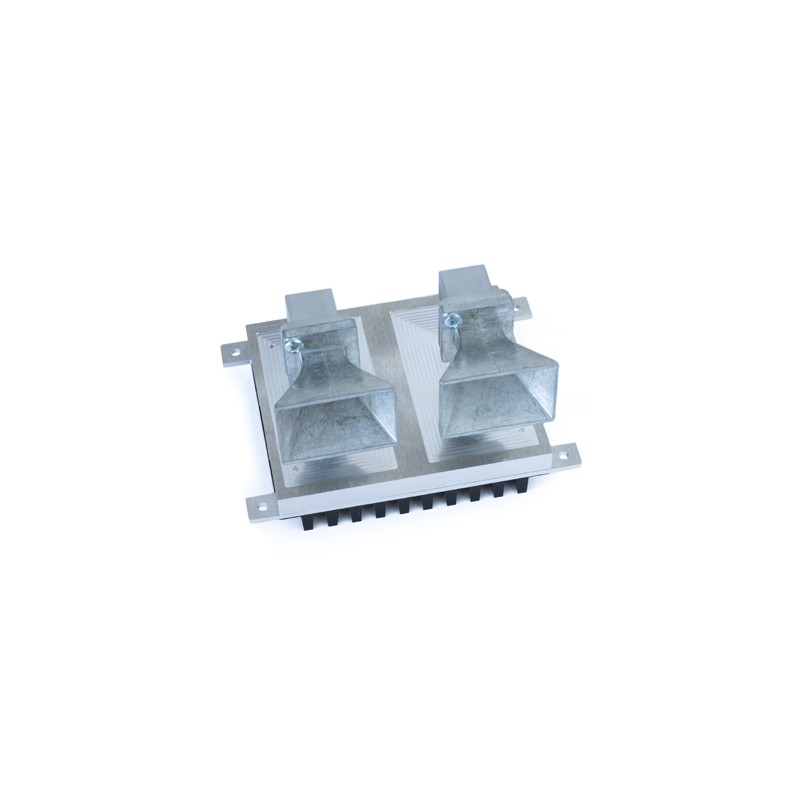

The K-XC1 is a demonstration system for a continuous wave (CW) Radar system for measuring distances to moving and stationary objects with a high resolution. It works similar to a Pulse Radar, but uses pulse compression technology to enlarge the transmitted pulse to a continuous wave signal. So it is possible to work with low power and still having a reasonable range coverage. This is called a Pseudo-Noise (PN) radar.
Indoor automation
• Automatic light activation
• Air-conditioning active if room is occupied
Intrusion Alarm
• Detection movement in room
• Measure distance to object
Reference: M1000
Brand: AppVision
M1000 is a ground-based wind profiling radar based on millimeter wave detection technology. Its function is to supplement the detection blind zone near the ground of traditional wind profiling radar.
Reference: K-MC4
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H30°x V12°; Typical Detection Range car:93m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 180.00 mA; Typical Detection Range person: 37m; Tuning Range: 180MHz; Size: 78 x 78 x 7
Reference: APV1161G
Brand: AppVision
Key Features: Support Voltage: 3.3V-5.5V; Channels: 1; Opening Angle: H55°x V55°; High Mount: 3m height, 3m detection radius for stationary human (adjustable), 5m for moving objects (adjustable) Horizontal Detection: 6m detection radius for moving detection (adjustable), 4m detection radius for presence detection (adjustable) Frequency Band: 24 GHz, ISM;...
Reference: V-MD3
Brand: RFbeam
Key Features: Support Voltage: 12V, 24V; Channels: 4; Opening Angle: H60°x V36°; Typical Detection Range car:80m; Integrated Signal Processing: Yes; Frequency Band: 61 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 30m; Tuning Range: 40000 MHz; Size: 71 x 56 x 28
Reference: RSP1_EVAL
Brand: RFbeam
Key Features: Support Voltage: 12V; Channels: 2; Opening Angle: H80° x V34°; Typical Detection Range car:60m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 20m; Tuning Range: - MHz; Size: 76 x 74 x 10
Reference: K-LD7-EVAL
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 40.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 40 x 40 x 18
Reference: K-MC3
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:180m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 70.00 mA; Typical Detection Range person: 70m; Tuning Range: 180MHz; Size: 105 x 85 x 7
Reference: K-MD7-EVAL
Brand: RFbeam
Small and low cost digital 24 GHz traffic radar sensor Measures speed, direction, distance and angle of moving objects Perfect for speed signs or simple traffic counting applications Maximum speed range of 200 km/h and distance range of 300m Typical detection distance of 50m for persons and 150m for cars Multi-target tracking for up to 8 moving objects...
Reference: ST500_EVAL
Brand: RFbeam
Key Features: Support Voltage: 48V; Channels: 1; Opening Angle: H80°x V12°; Typical Detection Range car:80m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 35m; Tuning Range: - MHz; Size: 120 x 40 x 10
Reference: APV1231E
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H47°x V24°; Typical Detection in liner direction of moving objects :4m; Typical Detection in liner direction of static objects: 7m; Frequency Band: 24 GHz, ISM; Supply Current: 165 mA; Modulation: FMCW; Output format: Serial port ASCII; Size:2.2cm x 3.2cm
Reference: K-MC1-LP
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:140m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 7.50 mA; Typical Detection Range person: 50m; Tuning Range: -MHz; Size: 65 x 65 x 7
Reference: APV2301H
Brand: AppVision
Key Features: Support Voltage: 5V; Channels: 4; Opening Angle: H32°x V28°; Typical Detection in liner direction :6m; Presence Detection: 5m; Frequency Band: 24 GHz, ISM; Supply Current: 200 mA; Modulation: FMCW; Output format: Serial port ASCII; Size:2.2cm x 3.2cm
Reference: K-LC1a
Brand: RFbeam
Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H80°x V34°; Typical Detection Range car:31m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 12m; Tuning Range: -, 180 MHz; Size: 25 x 25 x 6
Reference: N300
Brand: AppVision
N300 is a Sea-based wind profiling radar based on millimeter wave detection technology.
Reference: RFBeam-custom-bundle
Brand: RFbeam
1x ST100 Starter Kit (AUD $650 plus GST) 5x K-LC1a_V2 (AUD $18.18 * 5 plus GST) 1x International Freight (AUD $25 plus GST)
Reference: APV1181
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Typical Detection in liner direction of moving objects : >8m; Frequency Band: 24 GHz; Supply Current: 70mA; Modulation: CW; Output format: Serial port ASCII Size:4.2cm x 0.5cm
Support Voltage: 24V;
Channels: 2;
Opening Angle: H-° x V-°;
Typical Detection Range car:-m;
Integrated Signal Processing: Yes;
Frequency Band: 24 GHz;
Supply Current: 300.00 mA;
Typical Detection Range person: -m;
Tuning Range: 4000 MHz;
Size: 89 x 77 x 19
