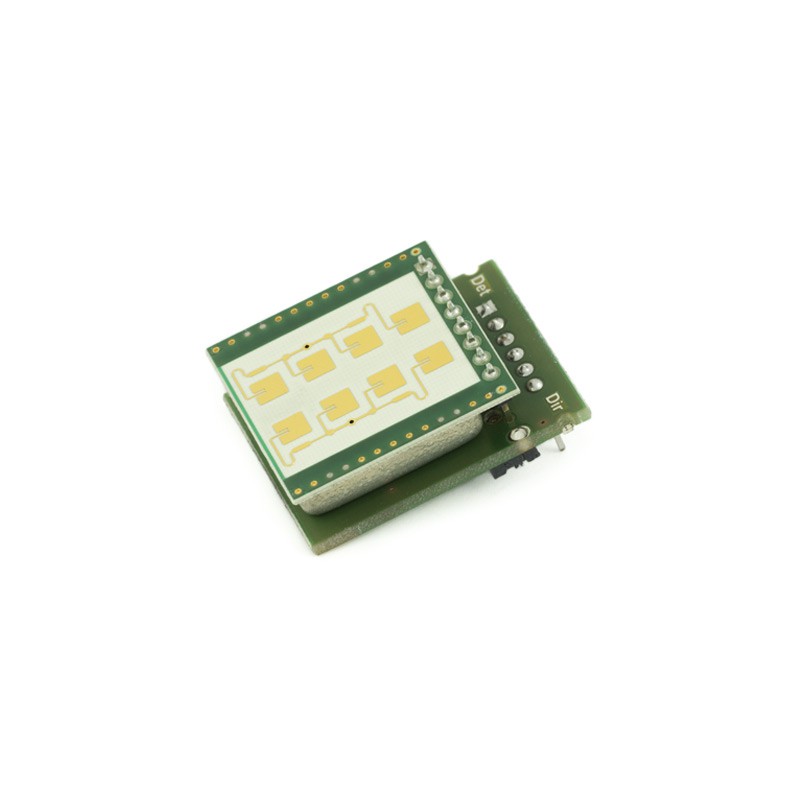

K-LD2-EVAL Evaluation Kit

Overview:

The K-LD2 Evaluation Kit is a fully operational movement detector. The evaluation board visualises the two digital outputs of the K-LD2 over LED’s. Two potentiometers allow quick adjustments of the sensor’s sensitivity and hold time.

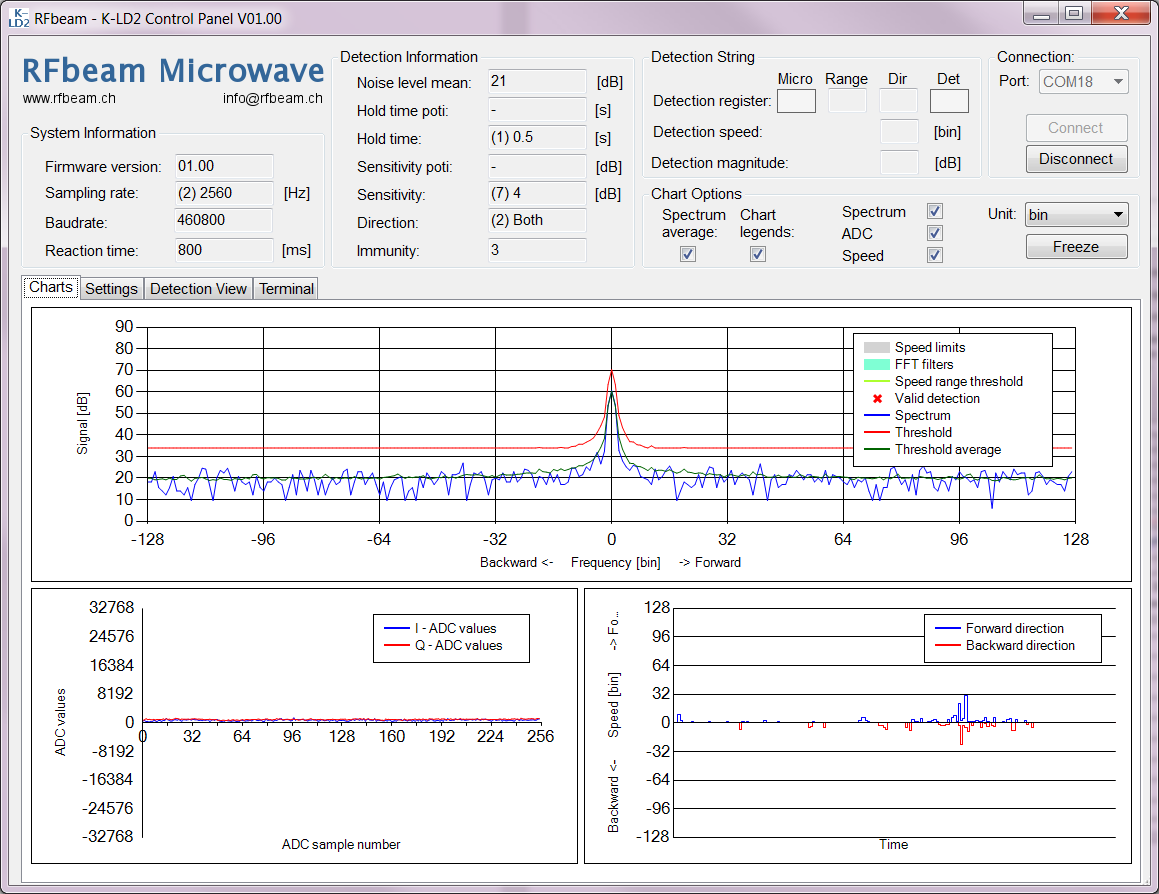

With the included powerful Control Panel software, development time is reduced drastically. All the parameters can be modified using the Control Panel, without having to look at the command list of the K-LD2. The influence of changed parameters can be directly checked in the real-time spectrum. Also ADC values and the dominant movements are displayed at the same time. Other parameters like sensitivity, filters and thresholds are directly shown in the spectrum to allow visual control. A unit conversion function allows to see spectrum and detection information either in bin, Hz or km/h. Simply save different settings of your K-LD2 and load them later for comparison or to order preprogrammed K-LD2 Sensors from RFbeam.

Typical Applications:

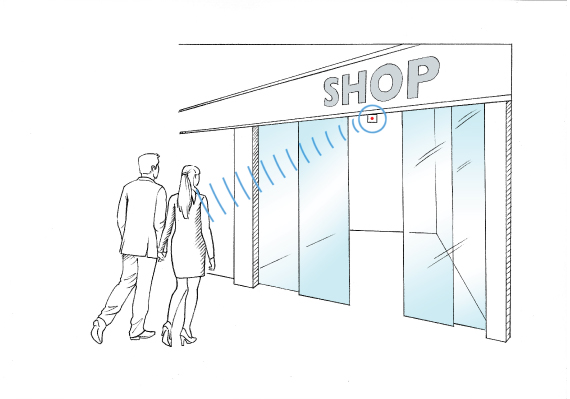

Door Open

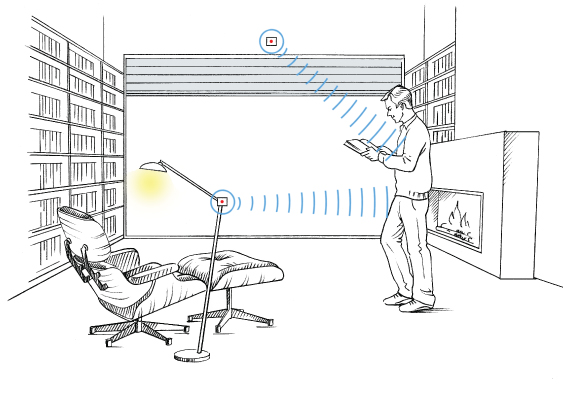

Indoor automation

• Automatic light activation
• Air-conditioning active if a room is occupied

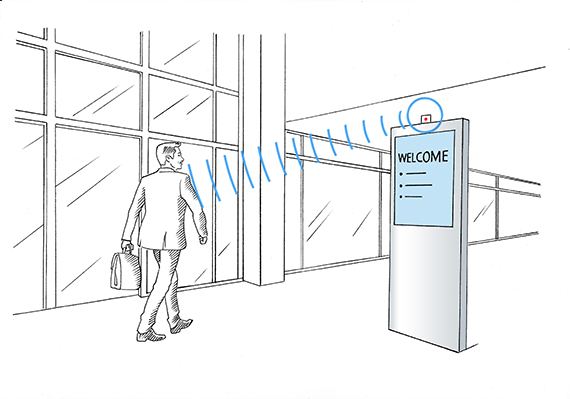

Movement detection

• Activate light on advertising boards
• Attract attention to an object

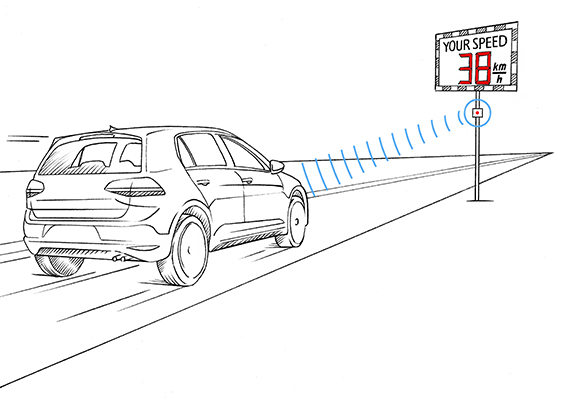

Speed measurement

• Inform the driver of his actual speed
• Measure distances between vehicles
