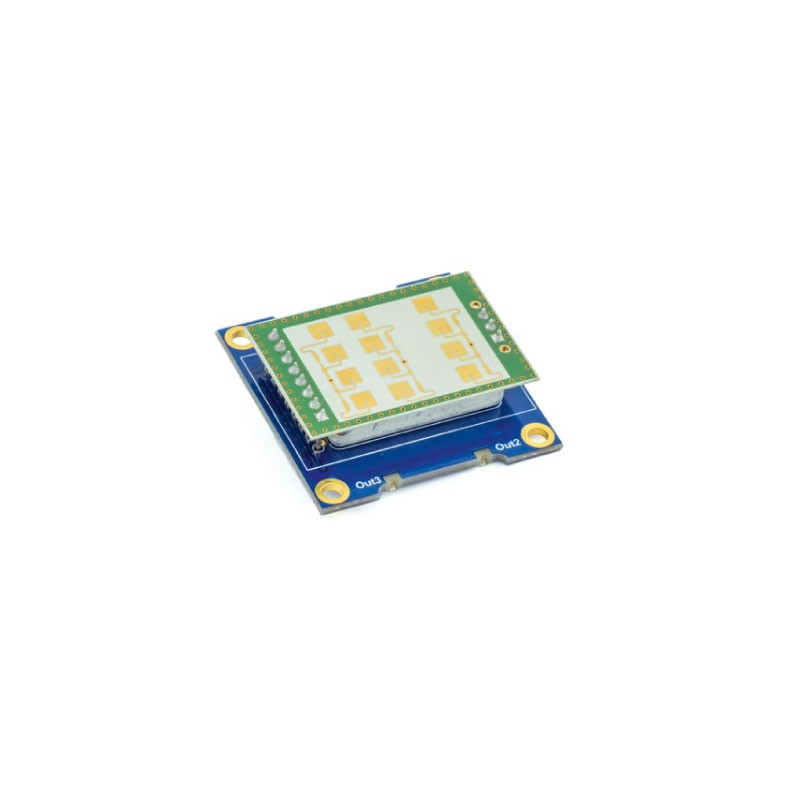

K-LD7-EVAL Evaluation Kit

Overview:

The K-LD7 evaluation kit is a fully operational distance triggered movement detector. It visualizes all four digital outputs of the K-LD7 over LED’s and features an easy connection to a PC over a USB to a serial cable which is also included in the kit.

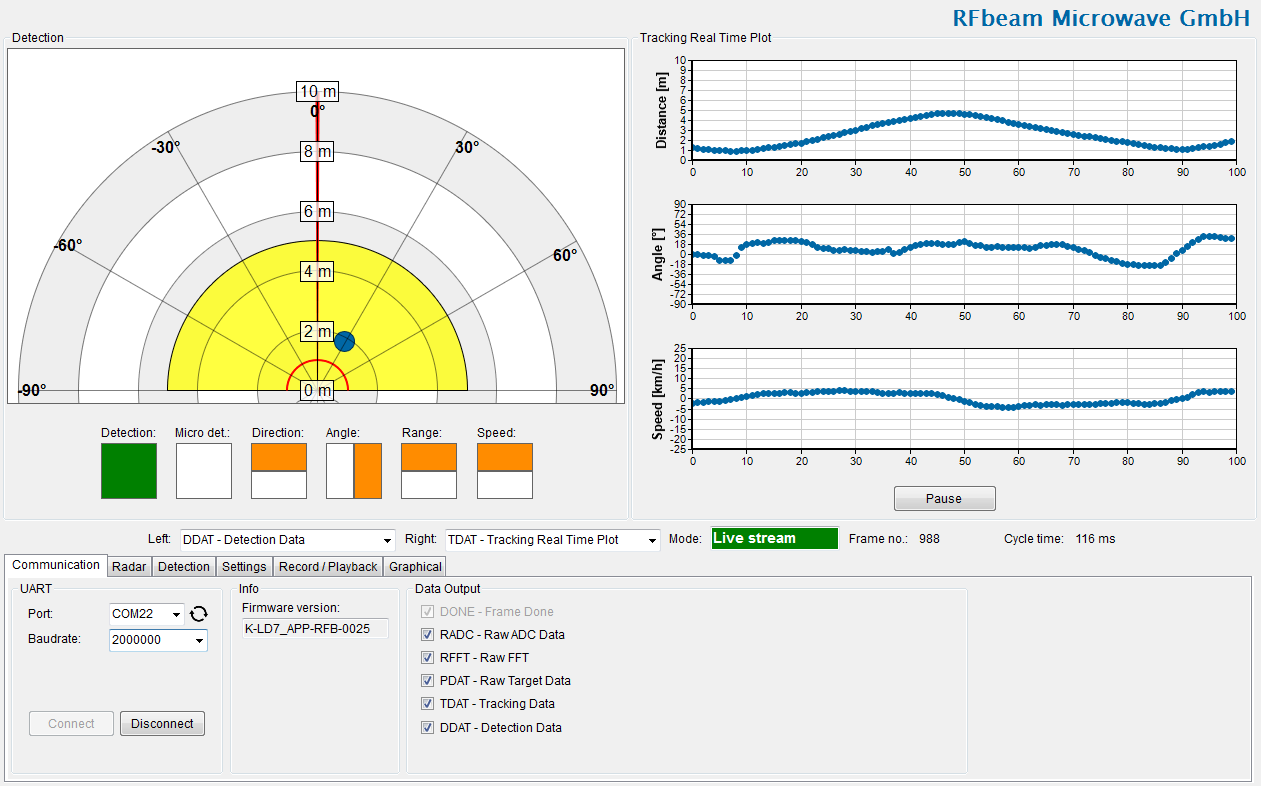

With the supplied powerful Control Panel software, development time is reduced drastically. All the sensor parameters can be modified using the Control Panel, without having to look at the command list of the K-LD7. The influence of changed parameters can be directly checked in the real-time views of the software. The control panel features a lot of different views including a histogram to analyse the measured data in detail. Further it is possible to record all measured data and replay it directly in the software to analyse different application scenarios offline without the sensor.

Typical Applications:

Door Open

Indoor automation

• Automatic light activation
• Air-conditioning active if a room is occupied

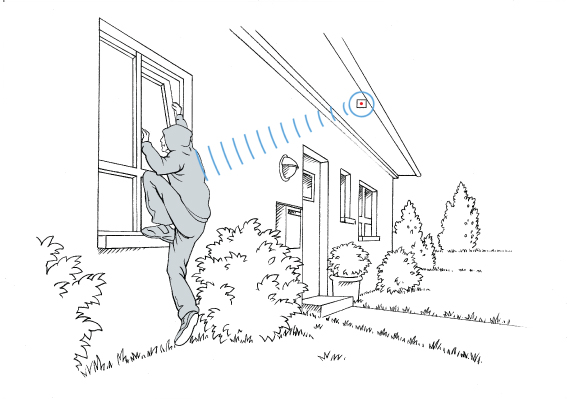

Intrusion Alarm

• Detection movement in a room
• Measure distance to an object

Movement detection

• Activate light on advertising boards
• Attract attention to an object

Speed measurement

• Inform the driver of his actual speed
• Measure distances between vehicles

DATASHEET
