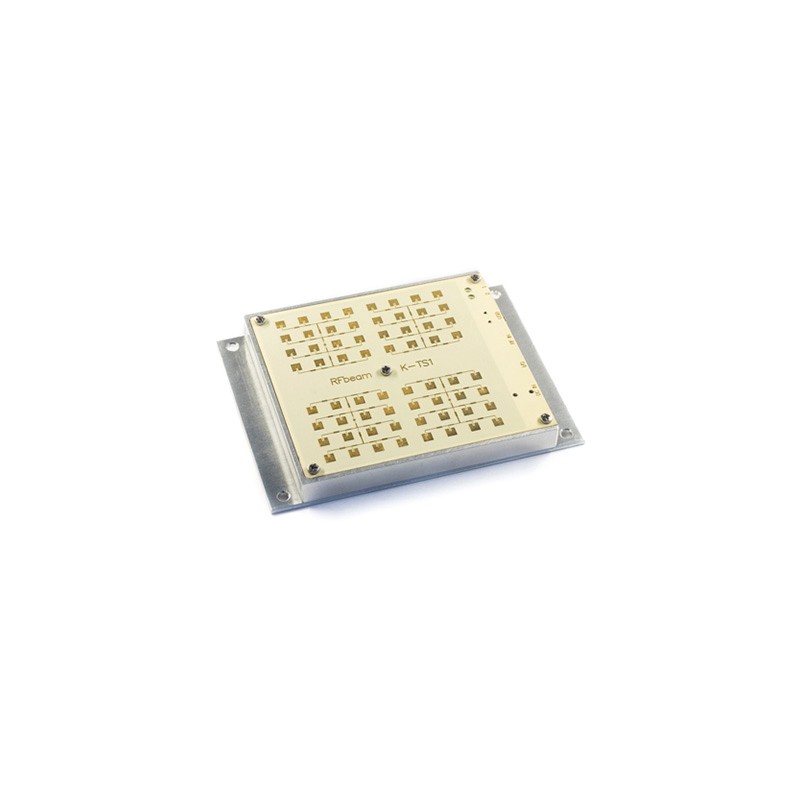

K-TS1 Radar Frontend Testsystem

Overview:

K-TS1 is a fully integrated radarmodule test­system for K-band transmitters, receivers, and transceivers. It consists of a digitally controlled synthesizer and transmitter, a selective re­ceiver with a power indicator, and a synthetic doppler target simulator. Its extremely compact construction makes it an ideal component for production and quality control systems.

TSviewLite Graphical User Interface

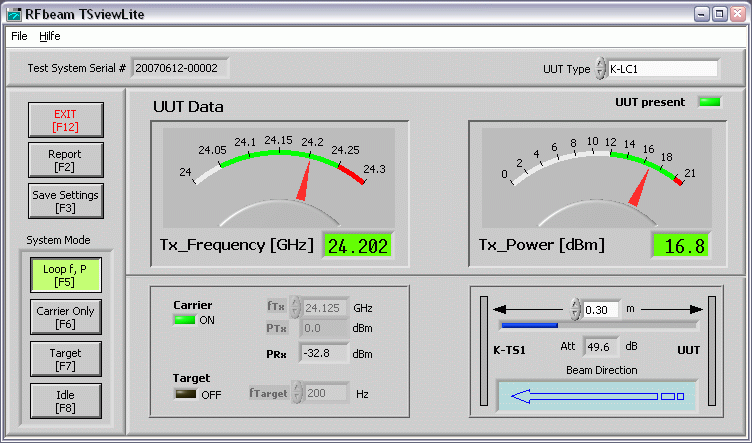

TSviewLite is an optional software tool. It presents a comfortable user interface and allows taking measures with just a few mouse clicks.

TSviewLite Software:

Why using K-TS1?

By using K-TS1 you save:

1. A 24GHz spectrum analyzer
2. A 24GHz power meter
3. A 24GHz RF generator
4. A moving target
5. A GPIB BUS
6. A coordinaton software
7. Test surface
8. A highly skilled operator
9. Many 10 .. 100k$

By using K-TS1 you get:

1. A Simple, reliable solution at a fraction of cost!
2. Reproducible results
3. Frequency accuracy 1MHz
4. in Rx and Tx Modes
5. Measuring at a Click
6. Click - Select mode
7. Read from long distances
8. Click - Save results in a log file

Specifications:

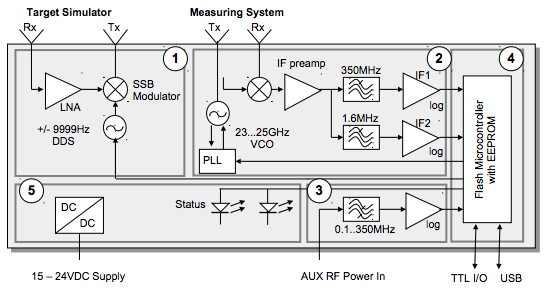

 Block Diagram

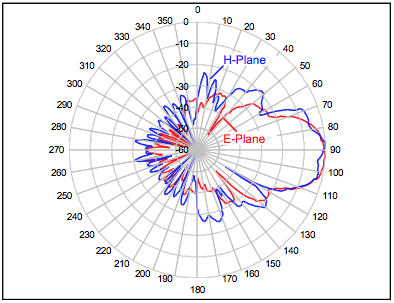

Antenna Diagrams: Field Pattern of Tx Antenna

DATASHEET
