Support Voltage: 24V;
Opening Angle: H30°x V30°;
Integrated Signal Processing: no;
Frequency Band: 24 GHz;
Supply Current: 100.00 mA;
Size: 125 x 70 x 24

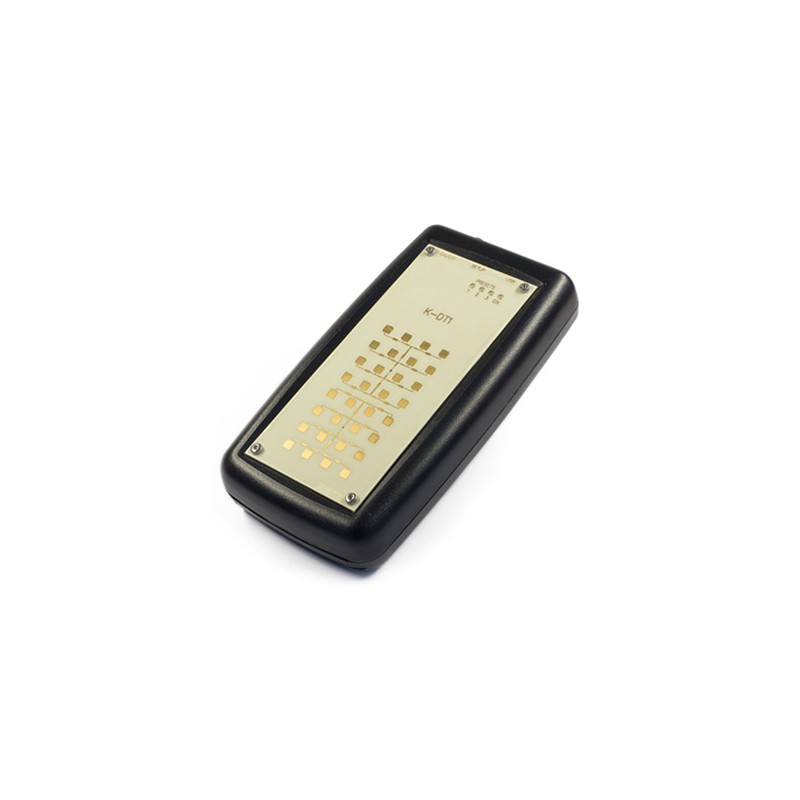

K-DT1 is a portable moving target simulator for K-band Radar transceivers. It can be used for calibrating and testing speed displays, door openers, safety systems, and other radar-based Doppler sensors.
A software-generated modulation signal allows the generation of low distortion and directional Doppler signals from 44Hz to 13.4kHz corresponding to speeds from 1km/h to 300km/h.
Portable Standalone Operation
K-DT1 is battery operated and comes in a small soft case. You can take it everywhere. No external equipment is needed. Recall one of three presets, that have been stored with the DT1-Remote software.

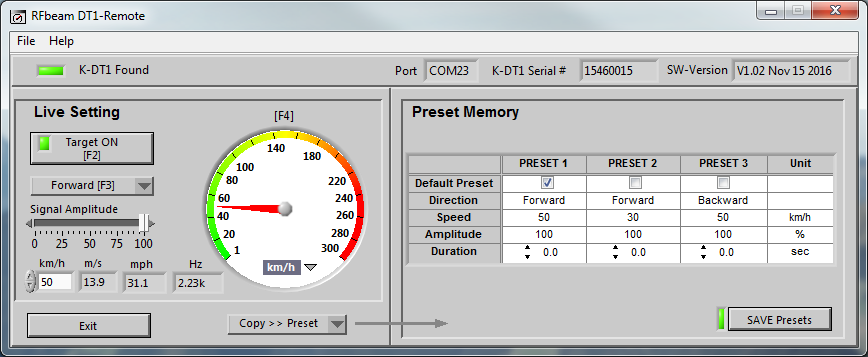

DT1-Remote Graphical Interface
A software for remote controlling and configuring K-DT1.
RFbeam Radar Test Equipment
K-DT1: Portable Doppler moving target simulator. Test and calibrate your radar system simpler than ever.
K-TS1: All-In-One system for frequency and power measurements including Doppler simulator.
ST100: Evaluate your Radar transceiver and explore the Doppler Radar world
Reference: ST500_EVAL
Brand: RFbeam
Key Features: Support Voltage: 48V; Channels: 1; Opening Angle: H80°x V12°; Typical Detection Range car:80m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 50.00 mA; Typical Detection Range person: 35m; Tuning Range: - MHz; Size: 120 x 40 x 10
Reference: K-MC1-LP
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:140m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 7.50 mA; Typical Detection Range person: 50m; Tuning Range: -MHz; Size: 65 x 65 x 7
Reference: K-XC1_SMA
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H-° x V-°; Typical Detection Range car:-m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 300.00 mA; Typical Detection Range person: -m; Tuning Range: 4000 MHz; Size: 89 x 77 x 19
Reference: K-LC5
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 2; Opening Angle: H80°x V34°; Typical Detection Range car:40m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 75.00 mA; Typical Detection Range person: 15m; Tuning Range: 260MHz; Size: 25 x 25 x 6
Reference: M1000
Brand: AppVision
M1000 is a ground-based wind profiling radar based on millimeter wave detection technology. Its function is to supplement the detection blind zone near the ground of traditional wind profiling radar.
Reference: K-XC1_Ant
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:15m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 300.00 mA; Typical Detection Range person: 8m; Tuning Range: 4000 MHz; Size: 89 x 77 x 19
Reference: K-MC3
Brand: RFbeam
Key Features: Support Voltage: 5V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:180m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 70.00 mA; Typical Detection Range person: 70m; Tuning Range: 180MHz; Size: 105 x 85 x 7
Reference: K-HC1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: 2; Opening Angle: H25°x V12°; Typical Detection Range car:560m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 220.00 mA; Typical Detection Range person: 210m; Tuning Range: - MHz; Size: 110 x 77 x 19
Reference: K-LD7
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 3; Opening Angle: H80°x V34°; Typical Detection Range car:30m; Integrated Signal Processing: Yes; Frequency Band: 24 GHz; Supply Current: 30.00 mA; Typical Detection Range person: 15m; Tuning Range: -MHz; Size: 38 x 25 x 14
Reference: K-TS1
Brand: RFbeam
Key Features: Support Voltage: 24V; Channels: -; Opening Angle: H30°x V30°; Typical Detection Range car:-m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 100.00 mA; Typical Detection Range person: -m; Tuning Range: 2000 MHz; Size: 103 x 76 x 11
Reference: K-LC3
Brand: RFbeam
Key Features: Support Voltage: 3.3V, 5V; Channels: 1; Opening Angle: H38°x V132°; Typical Detection Range car:15m; Integrated Signal Processing: no; Frequency Band: 24 GHz; Supply Current: 35.00 mA; Typical Detection Range person: 7m; Tuning Range: -MHz; Size: 25 x 25 x 6
Reference: ST200_EVAL
Brand: RFbeam
Key Features: Support Voltage: 5V, 12V; Channels: 4; Integrated Signal Processing: no; Supply Current: 500.00 mA; Size: 206 x 135 x 48
Reference: V-LD1-EVAL
Brand: RFbeam
- Small and low cost digital 61GHz FMCW radar distance sensor- Precise distance measurement with mm accuracy- Can be combined with a plastic lens for higher detection distances- Distance measurement up to 50m (depending on medium and used lens)- Ultra small SMD form factor (12mm × 16mm)
Reference: APV1161LG
Brand: AppVision
Key Features: Support Voltage: 3.3V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Typical Detection in liner direction of moving objects :7m; Typical Detection in liner direction of static objects: 4m; Frequency Band: 24 GHz, ISM; Supply Current: 100uA; Modulation: FMCW; Output format: Serial + high/low level; Size:2cm x 2cm
Reference: N300
Brand: AppVision
N300 is a Sea-based wind profiling radar based on millimeter wave detection technology.
Reference: APV1181X
Brand: AppVision
Key Features: Support Voltage: 3.6V-5.5V; Channels: 1; Opening Angle: H55°x V55°; Detection in liner direction of moving objects : >8m; Detection in liner direction of static objects : >4m; Frequency Band: 24 GHz; Supply Current: 20mA(average); Modulation: FMCW; Output format: Serial port ASCII Size:5.2cm x 0.7cm
Support Voltage: 24V;
Opening Angle: H30°x V30°;
Integrated Signal Processing: no;
Frequency Band: 24 GHz;
Supply Current: 100.00 mA;
Size: 125 x 70 x 24
