High-end PhaseTest Cable, up to 110 GHz

APV_CB-J-PT
Juncoax

  Applications

  • On-wafer MMIC test
  • Aerospace, Satellite, Defence
  • Phase array Radar and MIMO system multi channel test
  • Vector network analyzer MW component test
  • EMC Lab
  • Rack test system
  • High throughput automated test

 Features:

  •   High performance MW test cable, frequency range up to 110G
  •   1/1.85/2.4/2.92/SMA/N connector available, ready use cable length 60cm and 1 meter.
  •   Electric and mechanic stability ensure test reliability.
  •   High flexible, weight 90~105g/m, minimum bend radius 65mm
  •   Extremely high Phase& Amplitude Stability up to 67GHz
  •   Temperture range: -55~125 degree.
  •   Long service life to save test cost, life cycle>200,000
  •   High cost-effectiveness for reliable Microwave test
Product Type
$665.50
Quantity
Buy now, get it in two-week

Description

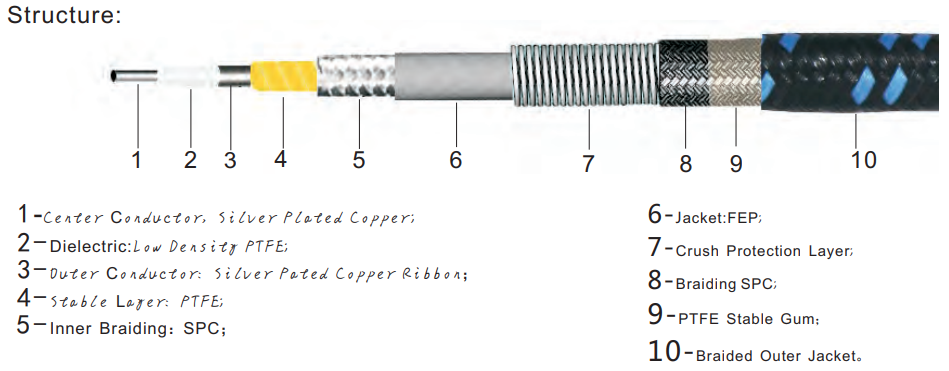

PhaseTest Series High-Performance Microwave Cable Assemblies adopt the advanced materials and structure,  ensure MW testing phase-and amplitude stable.  Feature ultra-low loss and best repeatability. The cable includes 10 different functional layers to ensure machinery and electrical performance. These high-quality components incorporate stainless steel armor for precision test measurements.

Screen Shot 2019-12-04 at 10-51-38 am.png

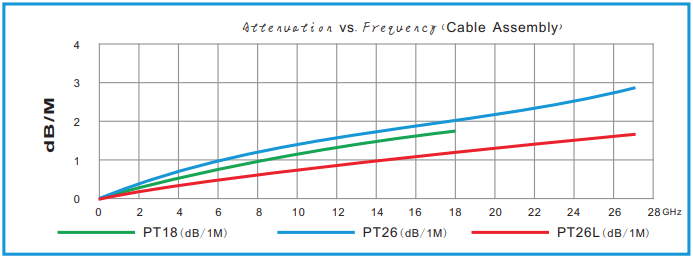

Screen Shot 2019-12-04 at 10-54-52 am.png


Product Details
APV_CB-J-PT
