Support Voltage: 5V, 12V;
Channels: 4;
Integrated Signal Processing: no;
Supply Current: 500.00 mA;
Size: 206 x 135 x 48
Evaluation / Analyzing / Education / Learning with ST200Typical Applications:
16Bit Acquisition
4 Channels
Realtime Recording
Realtime Playback
Signal Explorer SW
USB Interface
Explore Doppler - FMCW - FSK - Monopulse
LST200 comes with a universal hardware and sophisticated Signal Explorer software
ST200 Hardware
ST200 is a 16Bit data acquisition and processing system with a total 250k/s sampling rate. It contains all hardware necessary for acquiring Radar signals of RFbeam transceivers.
The universal architecture allows connecting all RFbeam and other Radar transceivers with analog interfaces.

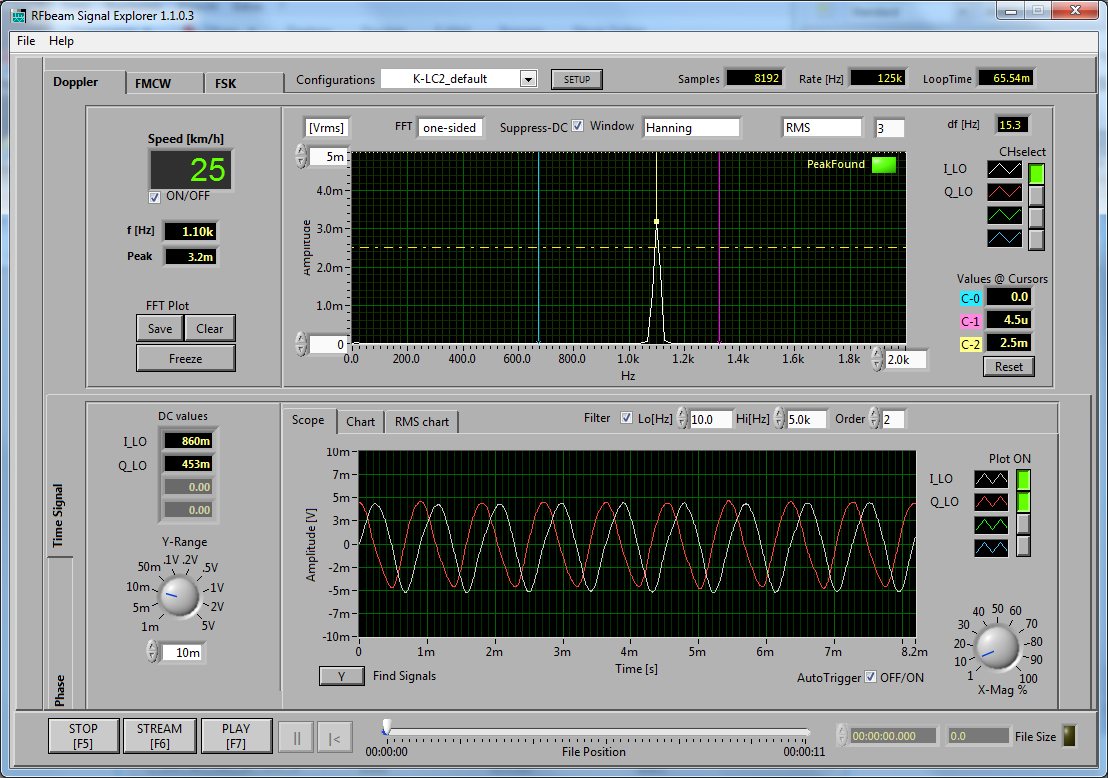

RFbeam Signal Explorer Software
The graphical interface allows intuitive interaction with the ST200 system. You may check the suitability of different Radar techniques for your application. Or you may use Signal Explorer for learning or teaching different Radar signal processing methods.
Save time
Efficient: Analyze signals without building hardware, without writing software.
Universal: Fits to nearly all short-range Radar front ends.
Instructive: Explore basic techniques on a fingertip.

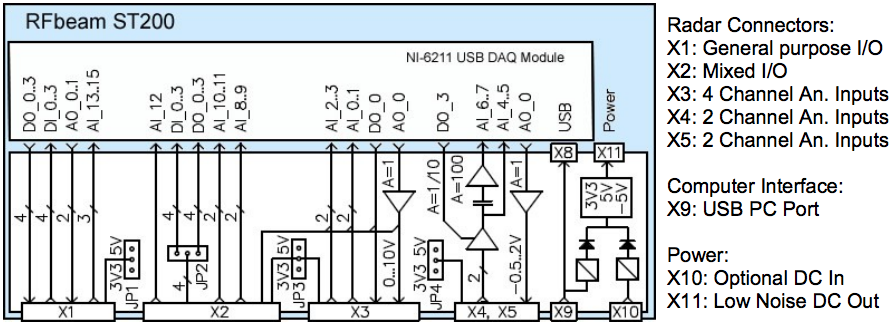

ST200 Block Diagram:

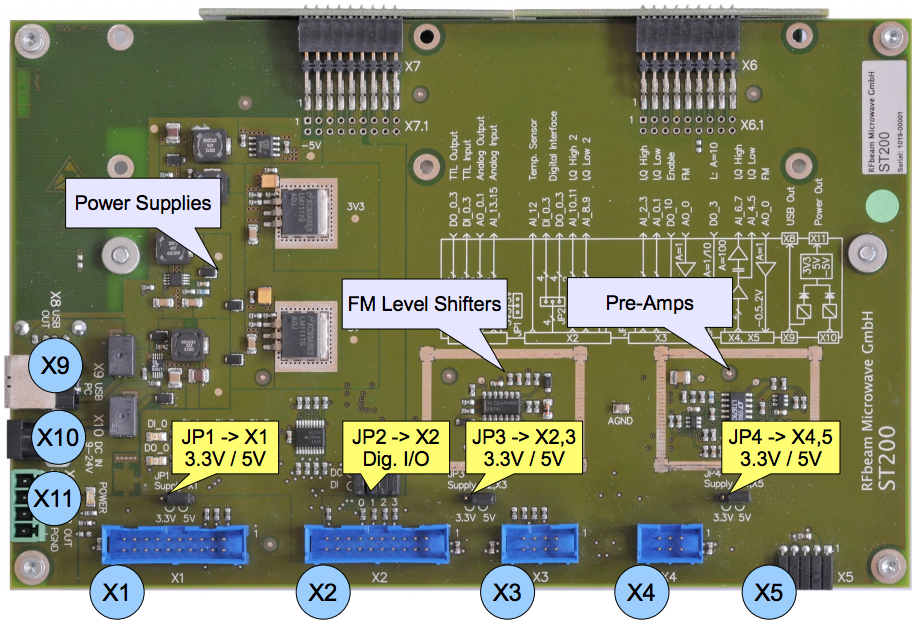

ST200 Hardware:
