Clean: Dust-less, environment friendly;
Non-flammable: A2 Level fire retardancy;
High-Performance: first-class reflection loss with high power capacity;
Durable: Typical life-time > 15 years without loss of performance;
Applications: EMC, Microwave measurements, etc.

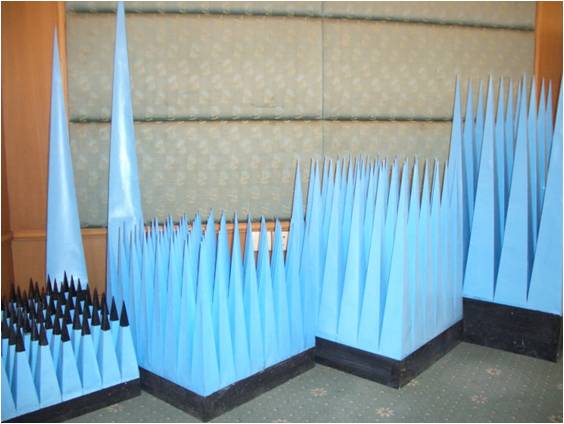

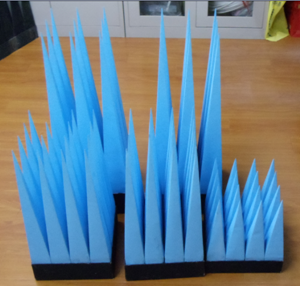

Pyramidal Foam absorber can be utilized for the frequency range 30MHz to 110GHz. The factor determining the lowest useable frequency is the physical size of the pyramid. The larger the dimensions of the pyramid, the lower the frequency of operation. Due to the volume consumed within an anechoic enclosure when using large pyramidal material.

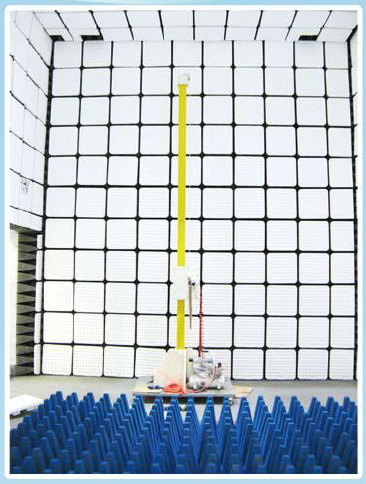

Chamber Size: 9m X 6m X 6m
Normalized site attenuation:
30MHz - 1GHz : NSA < ±4dB
Field uniformity:
Range of 26MHz to 18GHz: variation in field strength 0-6dB

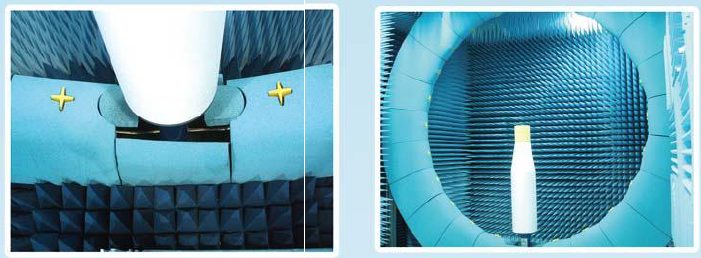

3. Angular-position target simulator
Frequency Range: 1GHz - 18GHz
Far-field testing distance: >5m
MAX load: 1.5 kg
Motion radius: 6m
Reference: ZXB-RAM
Brand: MJK
Main Features: Perfect RF absorbing ability Eco-friendly material with no unpleasant smell Rugged and durable Main Application: Microwave anechoic chamber EMC anechoic chamber Clutter suppression for RADAR and microwave communication systems electromagnetic interference resistance technology development
Reference: ZXB-700
Brand: MJK
Main Features: Clean: Dust-less, environment friendly; Non-flammable: A2 Level fire retardancy; High-Performance: first-class reflection loss with high power capacity; Durable: Typical life-time > 15 years without loss of performance; Applications: EMC, Microwave measurements, etc.
Reference: ZXB-1000
Brand: MJK
Main Features: Clean: Dust-less, environment friendly; Non-flammable: A2 Level fire retardancy; High-Performance: first-class reflection loss with high power capacity; Durable: Typical life-time > 15 years without loss of performance; Applications: EMC, Microwave measurements, etc.
Felible, High absorption rate absorber, frequency range up to 50GHz. Temperature range: -55~150 degree. Good absorption performance for both plane wave and surface wave. Application: EMC test, Antenna test, OTA test, Radar test etc
Reference: ZXB-500
Brand: MJK
Main Features: Clean: Dust-less, environment friendly; Non-flammable: A2 Level fire retardancy; High-Performance: first-class reflection loss with high power capacity; Durable: Typical life-time > 15 years without loss of performance; Applications: EMC, Microwave measurements, etc.
Clean: Dust-less, environment friendly;
Non-flammable: A2 Level fire retardancy;
High-Performance: first-class reflection loss with high power capacity;
Durable: Typical life-time > 15 years without loss of performance;
Applications: EMC, Microwave measurements, etc.
