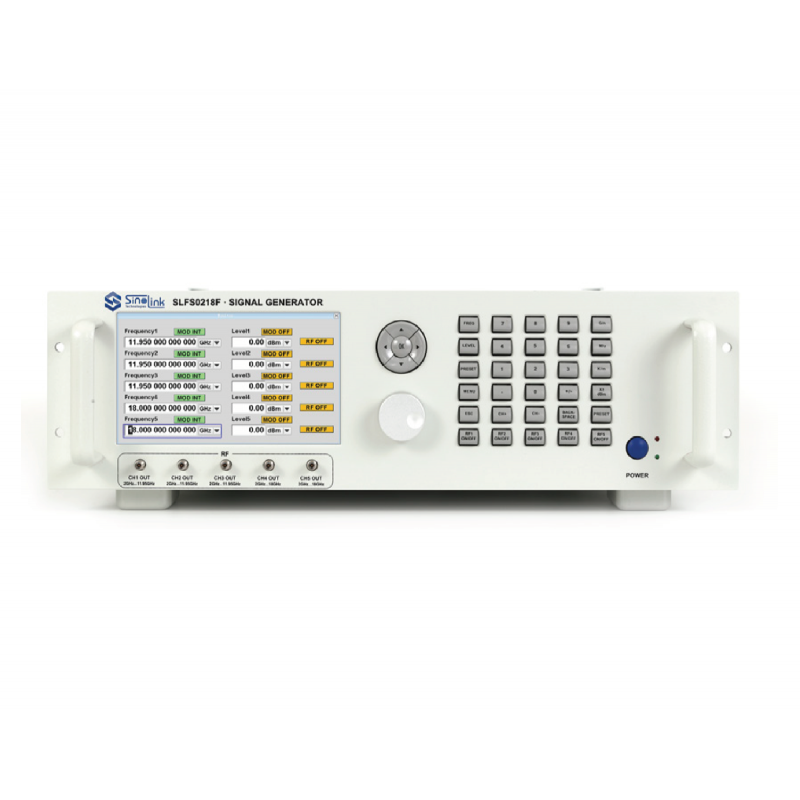

SLFS0218F Multi-Channel Phase-Coherent Signal Generator 18GHz

Multi-channel phase-coherent signal generator (SLFS0218F) is a 5Ch-output, phase-coherent, and low phase noise signal

generator. With 3 channels frequency range from 2GHz to 11.95 GHz. And the other 2 channels frequency range from 2GHz

to 18 GHz. Output power level range from -50dBm to +22dBm. Every channel can be independently fully adjusted.

The SLFS0218F is perfect for Quantum Computing, where good signal quality and very stable phase coherence among all

channels are required.

A high-stability OCXO reference provides excellent frequency accuracy and stability. Moreover, the SLFS0218F features a pair of

high-frequency reference ports (one input and one output) which enable excellent phase synchronization among the outputs

from multiple SLFS0218F units.

The SLFS0218F comes in a standard 19 inches 3U rack-mount form and offers LAN control interface, which allows easy and fast

communication. Remote control of the instrument can be quickly attained from any host system. Application programming

interface (API) or programming examples make the control implementation very easy.

Output

Model SFLS0218F

• Frequency range 2～11.95GHz 3Ch; 2～18GHz 2Ch
• Output channel 5Ch
• Frequency resolution 0.01Hz

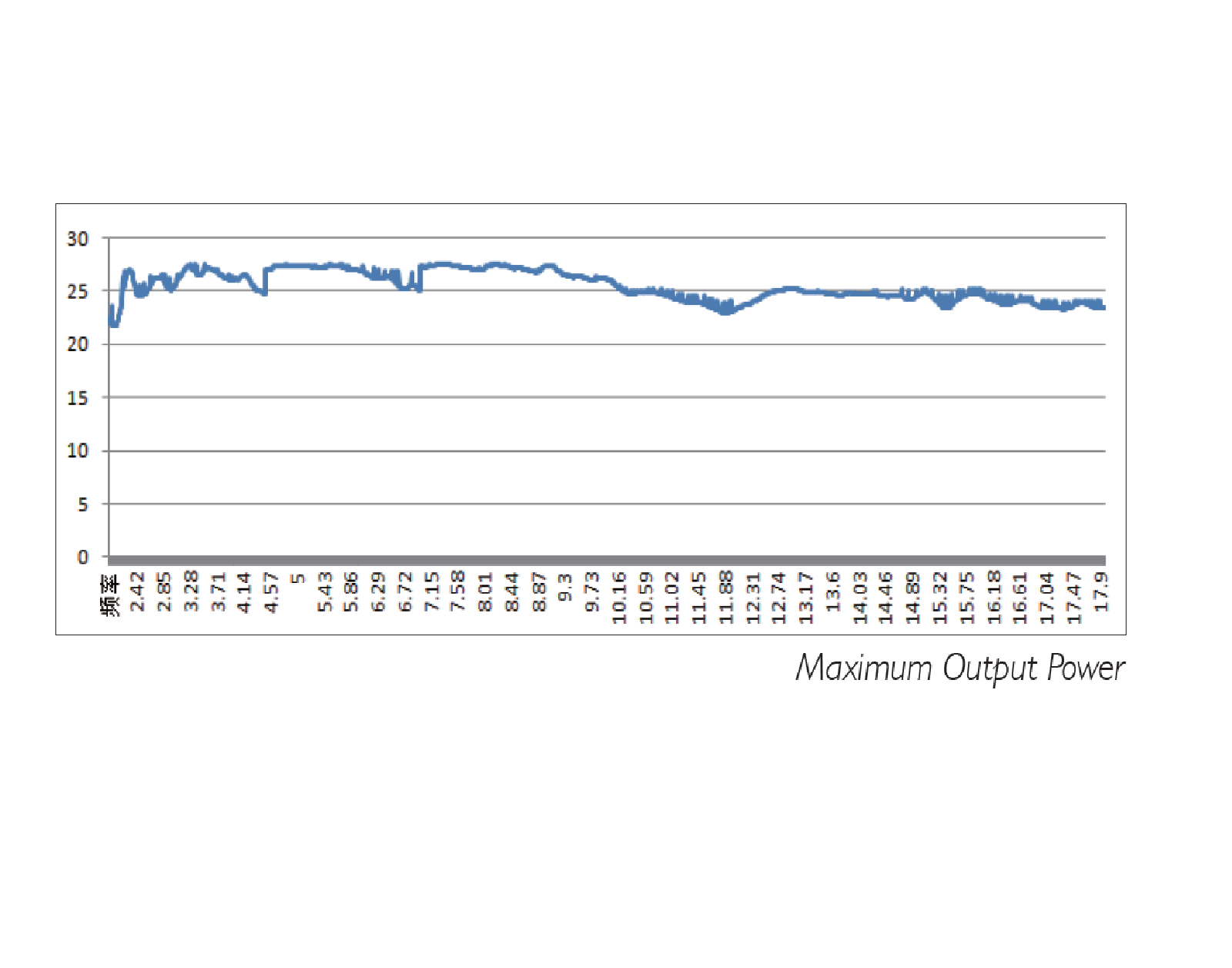

• Max output power

            +20dBm @8～12GHz

            +18dBm @＞12GHz

            +22dBm @＜8GHz

• Min output power -50dBm
• Power resolution 0.01dB
• Power level uncertainty

           ≤±1.3dB @＞-20dBm

            ≤±1.5dB @≤-20dBm

• Non-harmonic spurious

            ≤-70dBc @≤12GHz

             ≤-65dBc @＞12GHz

• Harmonic spurious ≤-50dBc @10dBm output
• Channel to channel isolation ≥80dB

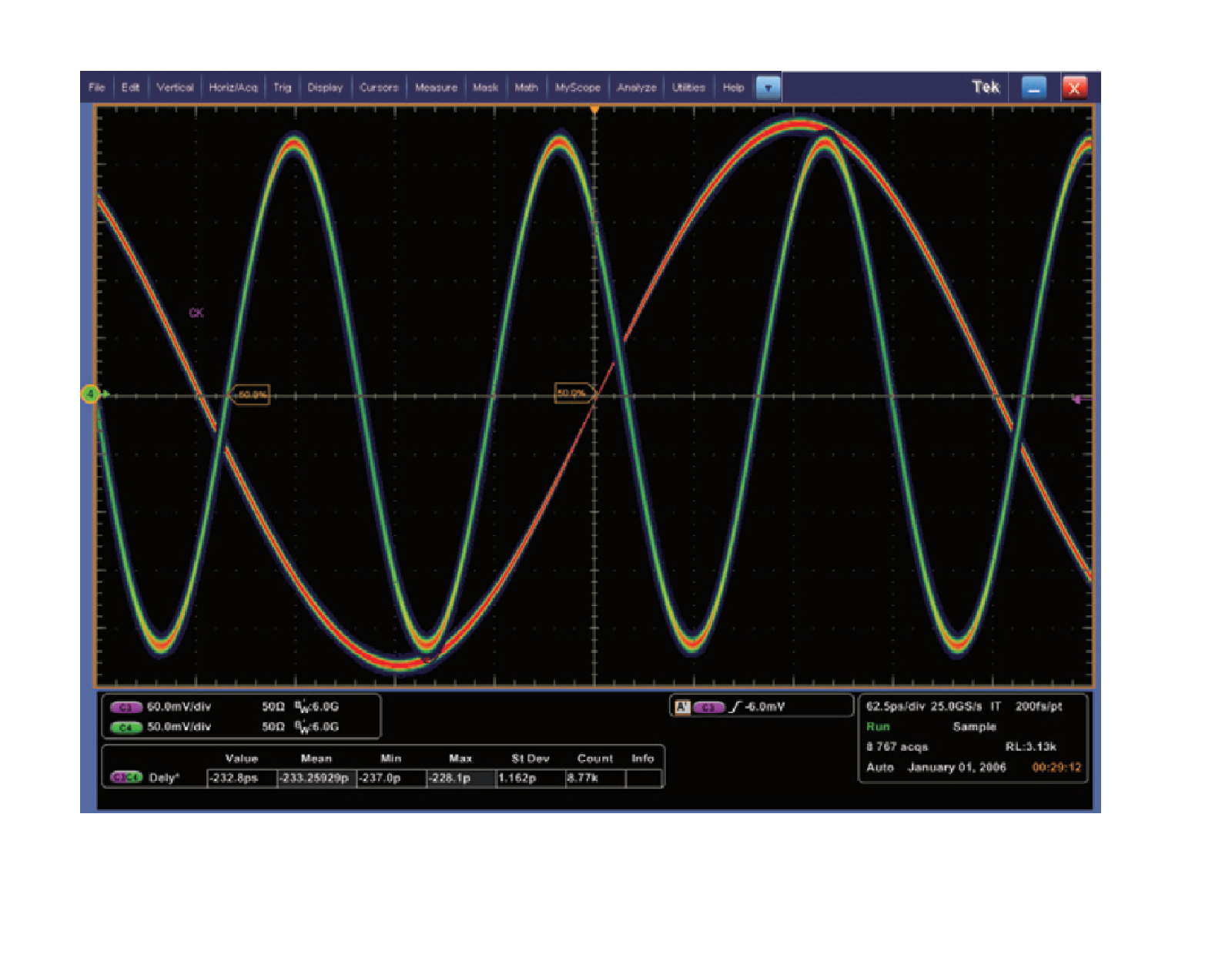

• Channel to channel
• Relative Phase Stability

                ≤±1°(10GHz, 24h)

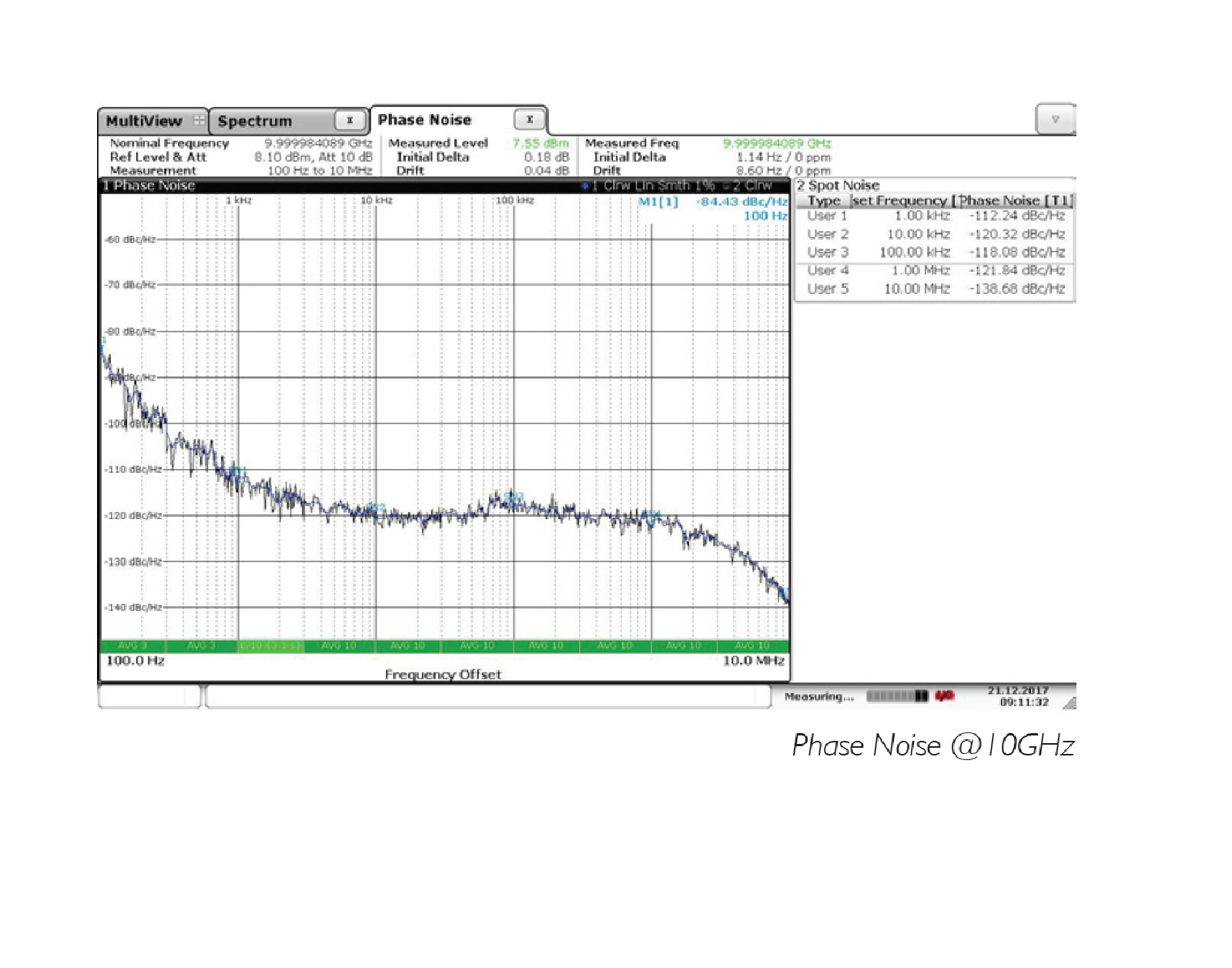

                ≤-75dBc/Hz@100Hz

                 ≤-108dBc/Hz@1KHz

• SSB (10GHz)

                 ≤-113dBc/Hz@10KHz

                 ≤-113dBc/Hz@100KHz

                 ≤-120dBc/Hz@1MHz

                 ≤-138dBc/Hz@10MHz
