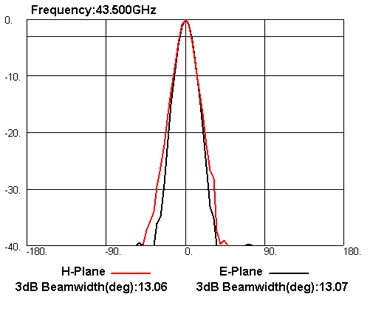

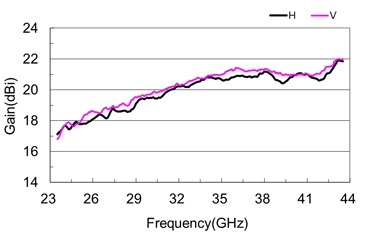

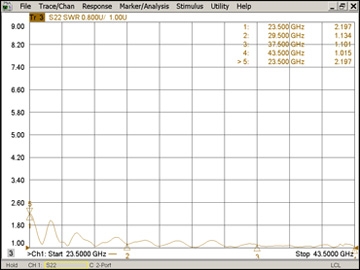

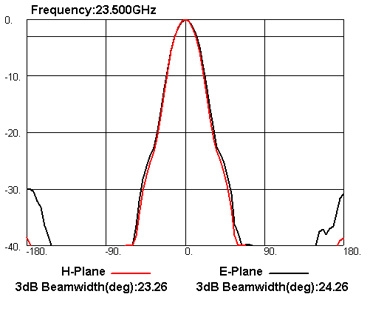

Dual linear polarization corrugated conical horn antenna LB-CH-28-20-T62, operating from 23.5 to 40GHz with a nominal 20dB gain and low VSWR 1.80:1 with 2.92mm Female output connector. The model LB-CH-28-20-T62-C-KF has uniform gain through its frequency span, providing a nearly circularly symmetric copolar radiation pattern in wide bandwidth and very low cross polarisation. This horn antenna has dual linear polarization and ideally suited for antenna far-field testing, reflector feed, CATR, RCS measurement, and other applications.
A-INFO, a leading manufacturer and supplier of RF, microwave, and millimeter-wave products, is proud to introduce the two new Horn Antennas available, the LB-CH-28-20-T62 Corrugated Conical Horn Antenna and the LB-CNH-28-20-T62 Conical Horn Antenna. These WR28 Antennas can cover a frequency range from 23.5 GHz to 43.5 GHz or 23.5 GHz to 40.0 GHz depending on the output. With a low VSWR and a gain of 20 Typ. dBi, these Antennas are ideally suited for 5G Systems, Millimeter Wave Tests, UWB Communication Systems, and other applications. A-INFO can provide various other waveguide components, antennas, customizations of specific gain horn antennas, and a variety of components that can fit your project need. Check out A-INFO’s website to view all of the products that A-INFO can offer you. All of our products are of high quality and can work with a variety of projects and systems. All of A-INFO’s products are guaranteed with a warranty as outlined in our Terms and Conditions.
Contact us if you have any additional questions and inquiries to see if any of our products are right for your project needs.
