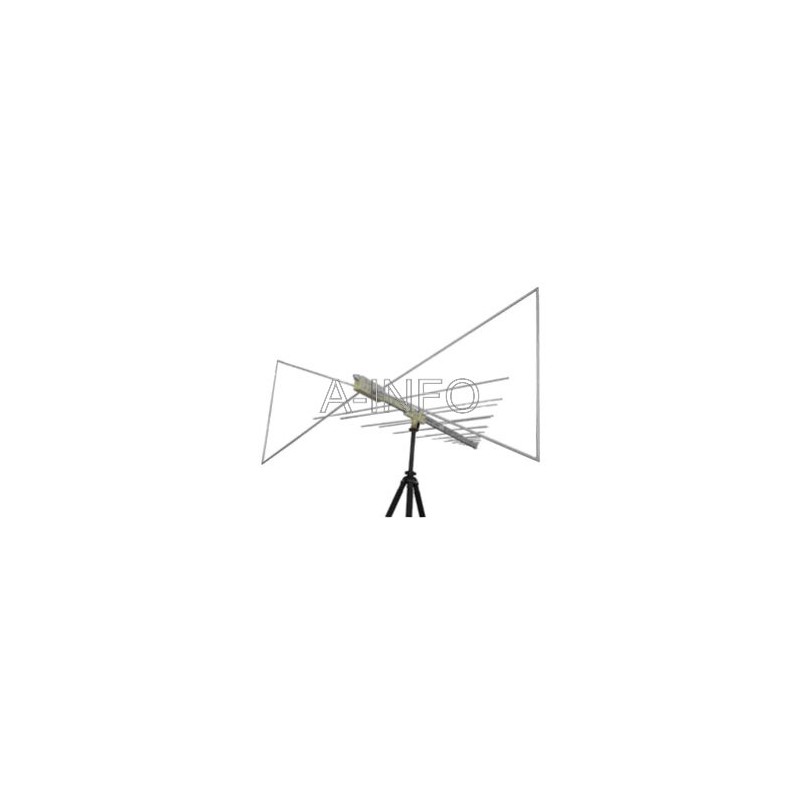

30MHz-6GHz Log Periodic Antenna - Linear Polarization

Overview:

DS series antennas are lightweight, medium gain log-periodic dipoles designed to transmit and receive signals over broadband. These antennas are characterized by a high front-to-back ratio and power gain at all frequencies in the band. High-quality aluminum construction for a lightweight, high strength antenna that will provide years of trouble-free operation.

ALL DS antennas are linearly polarized. Polarization adjustment is possible, in any plane, DS series antennas operating below 300MHz are also supplied in a kit form for compactness in packaging and ease of transportation. Antennas in the kit form assemble easily with minimum tool requirements. A standard tripod will be provided according to customers' requirements, the joint is universal.

Also. We provide specific frequency Log Periodic antennas according to customers' requirements.

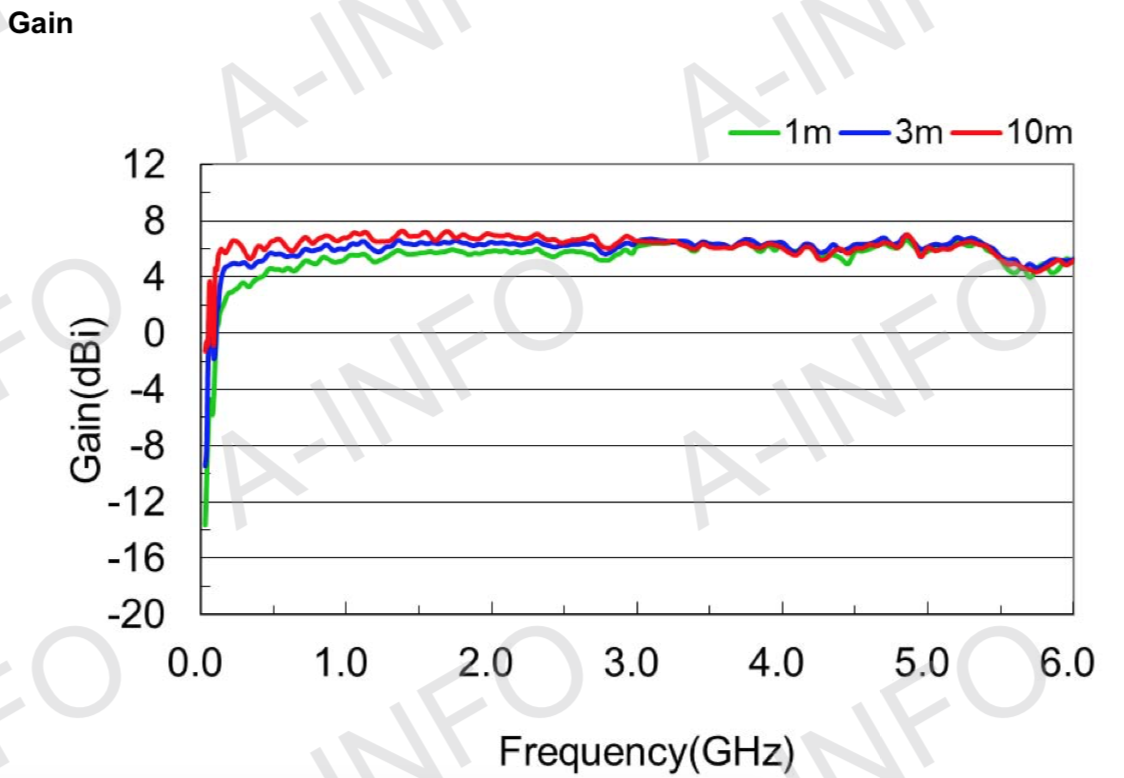

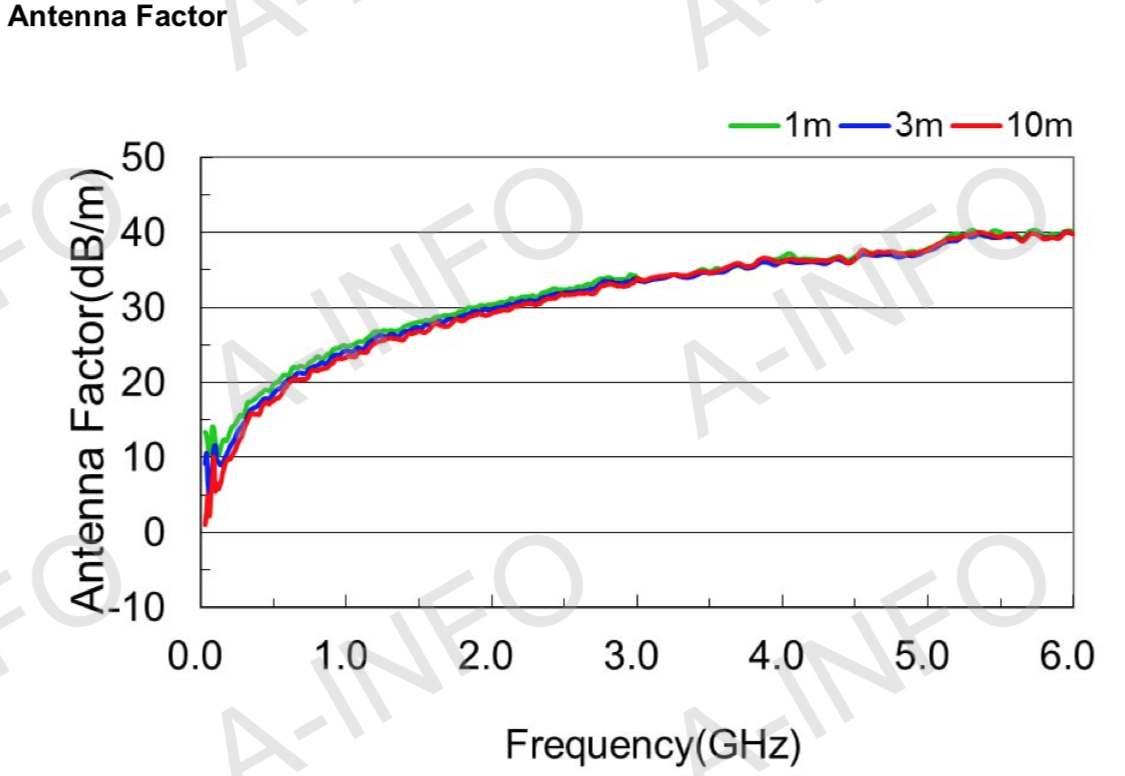

The test report is for reference only.

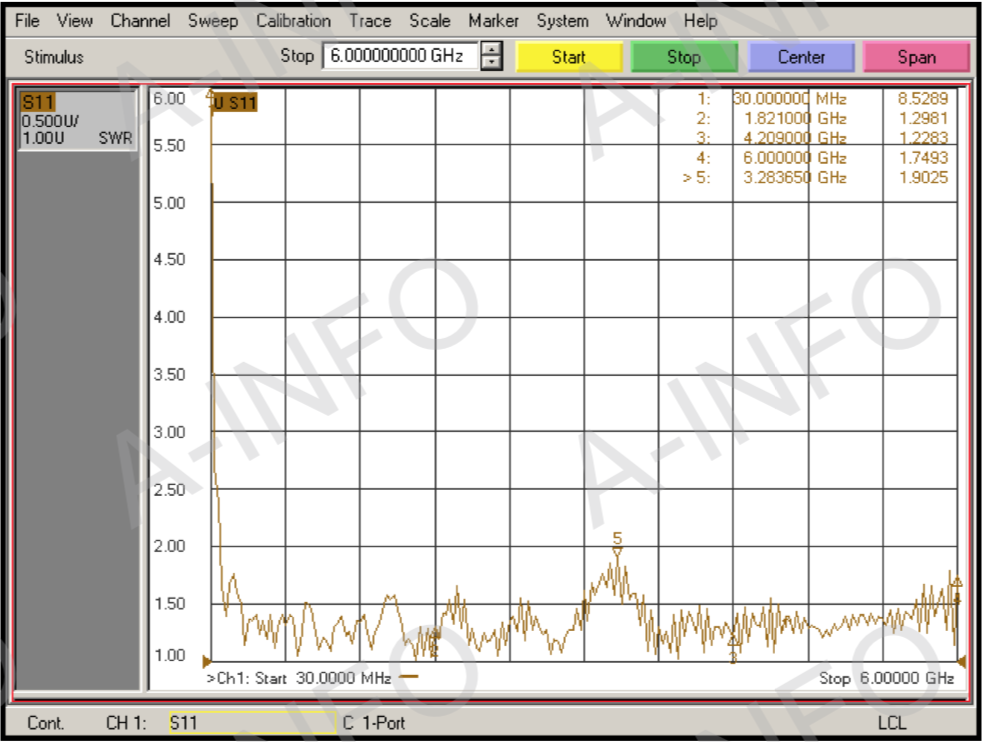

VSWR(5.0:1 Typ. 0.03-0.1GHz; 1.5:1 Typ./ 2.0 Max. 0.1-6GHz)

DATASHEET
