24-25.5GHz 22.5dB Gain, Microstrip Array Antenna, SMA Female
  • 24-25.5GHz 22.5dB Gain, Microstrip Array Antenna, SMA Female

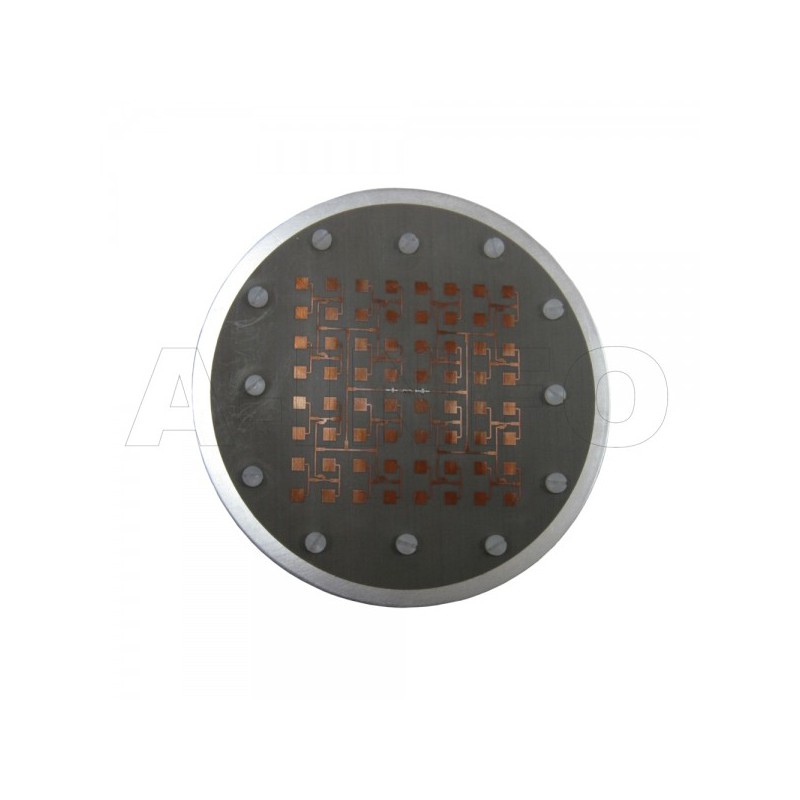

24-25.5GHz 22.5dB Gain, Microstrip Array Antenna, SMA Female

MAA-240255
A-INFO

Features:

Frequency, Min (GHz):24
Frequency, Max (GHz):25.5
Center Frequency, (GHz:24.75
Gain, Typ (dB):22.5
Polarization: Linear
Application: General Purpose Indoor & Outdoor, Fixed
Solution for: System Integration

Quantity

Description

Overview

Microstrip array antenna MAA-240255, operating from 24 to 25.5GHz, has a nominal 22.5dB gain and low VSWR 2.50:1 with SMA Female output connector. This microstrip array antenna has low profile features, small size, lightweight, diversified antenna performance, and is easy for installation. The model MAA-240255 has linear polarization, ideally suited for system integration and other applications.

Specifications:

Frequency Range(GHz)

24.0-25.5

VSWR

1.5 Typ. , 2.5 Max

Gain(dB)

22.5 Typ.

3dB Beamwidth(deg)

9.0 Typ.

Connector

SMA-Female

Size(mm)

Φ120 x 8.8 (Connector is not included.)

Net Weight(Kg)

0.2

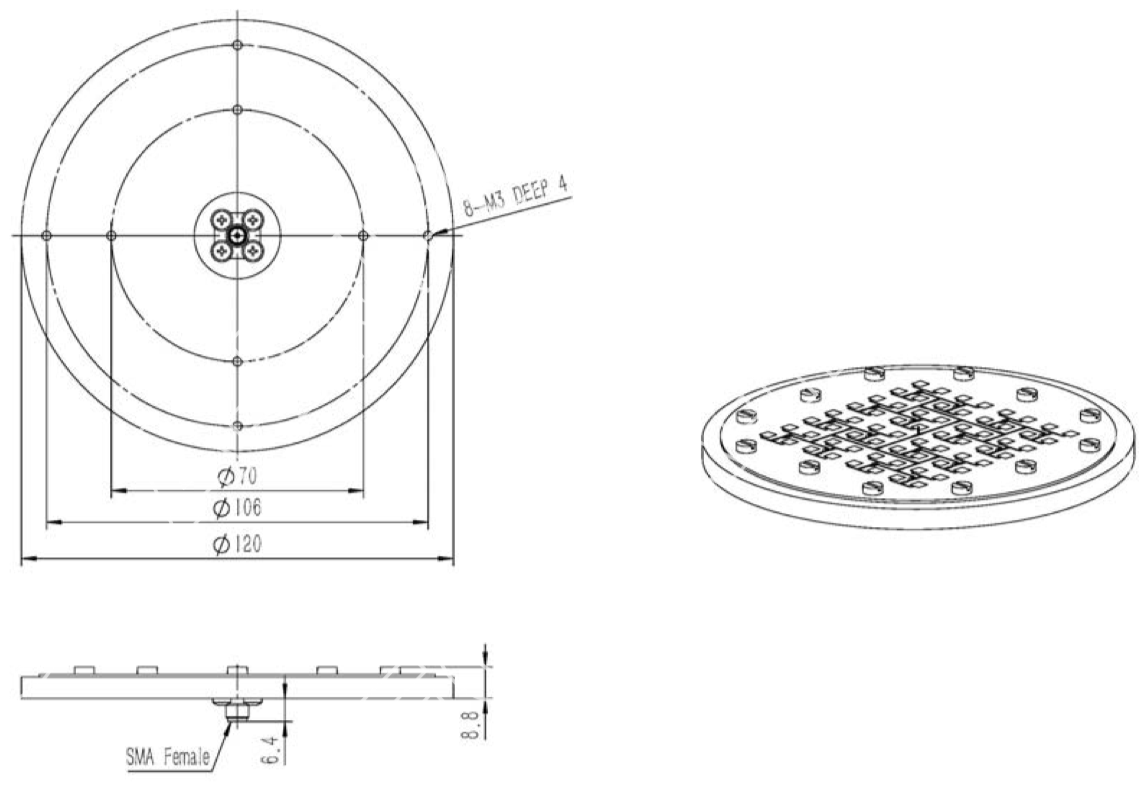

Outline Drawing (Size: mm)


Test Result:

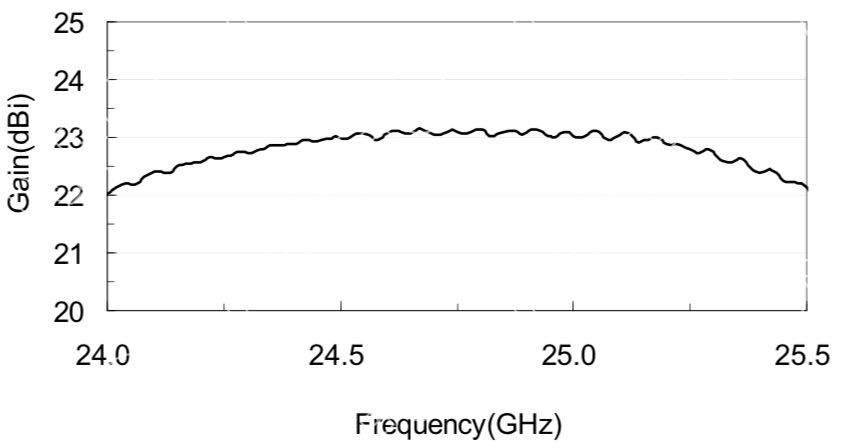

Gain:

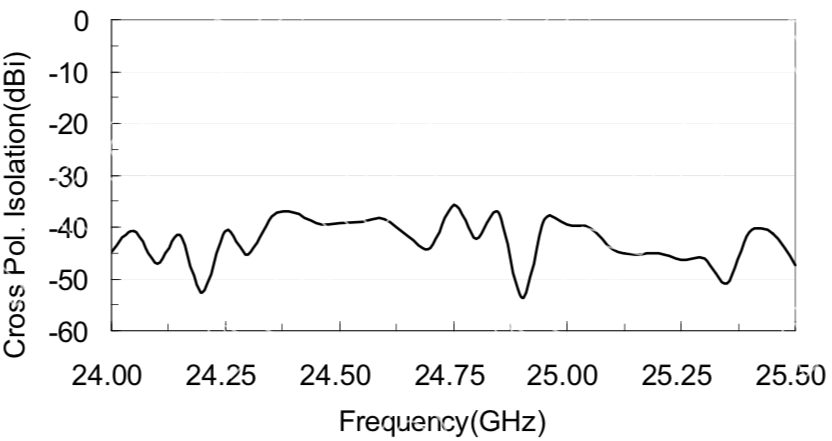

Cross Pol. Isolation (dBi)

DATASHEET

Product Details
MAA-240255
