The new M97XX series programmable DC electronic load is a new generation product designed by Maynuo Electronic Co., Ltd. Incorporating high-performance chips, the M97XX series delivers high speed and high accuracy with a resolution of 0.1 mV and 0.01 mA (basic accuracy is 0.03% and basic current rise speed is 2.5 A/μs). M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell, and fuel cell etc.test and measurement applications.
M9712B30 Electronic Load provides the maximum load to 300W, with the voltage 0-500V and current 0-15A.
M9712B30 provides a larger voltage range than M9712.
 |

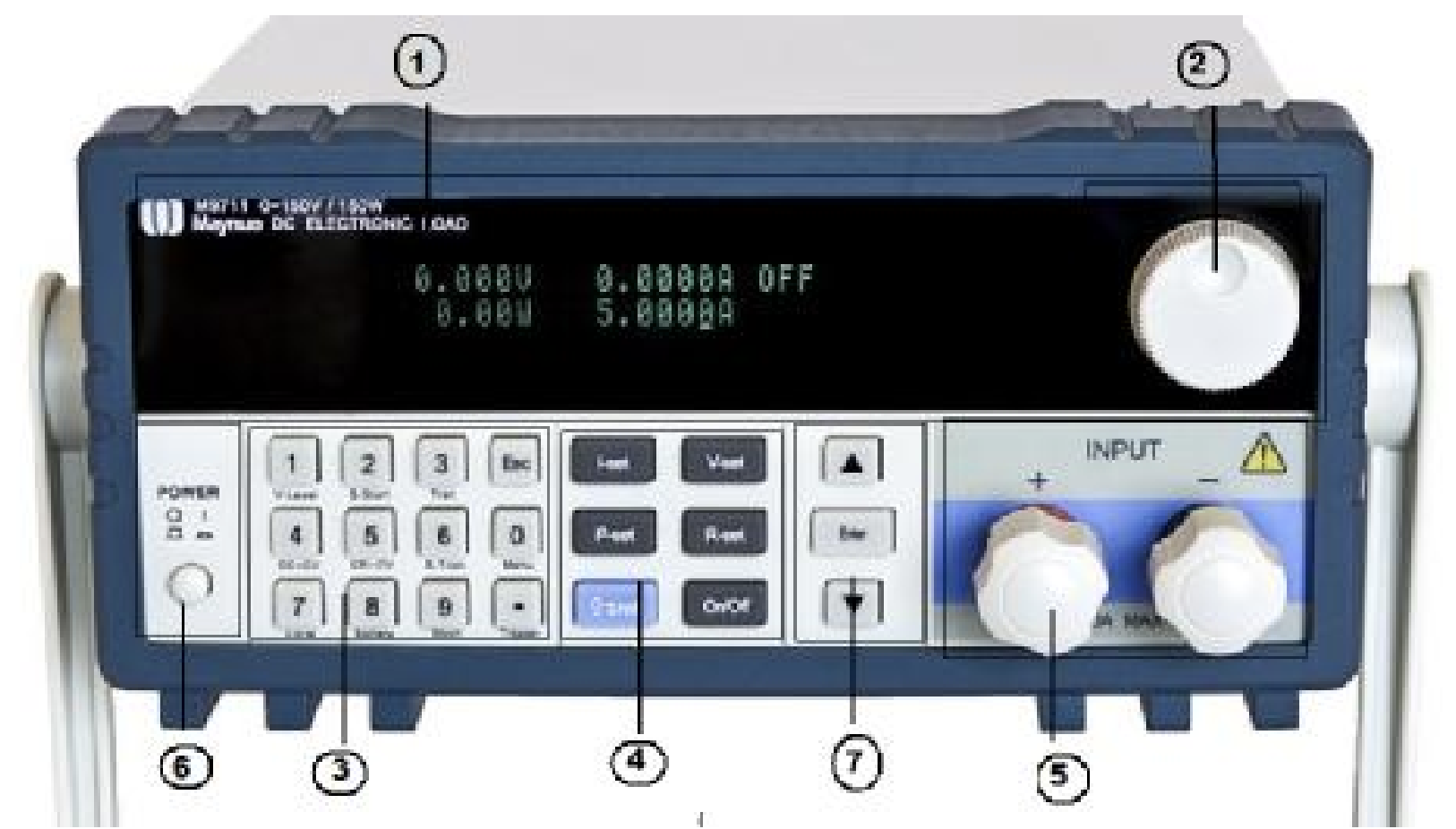

① The upper half is the black Vacuum Fluorescent Display (VFD) display screen. ② Rotary knob, Turn to adjust the setting values. ③ Numeric keys 0-9, ESC key, secondary key functions ④ Keypad: set up the current, voltage, power, resistance modes(I-set, V-set, P-set, R-set, Shift and On-Off); Scroll through menus and options ⑤ Input terminals ⑥ Power switch to turn on/off the instrument ⑦ Up-Down keys, Enter key |
 |

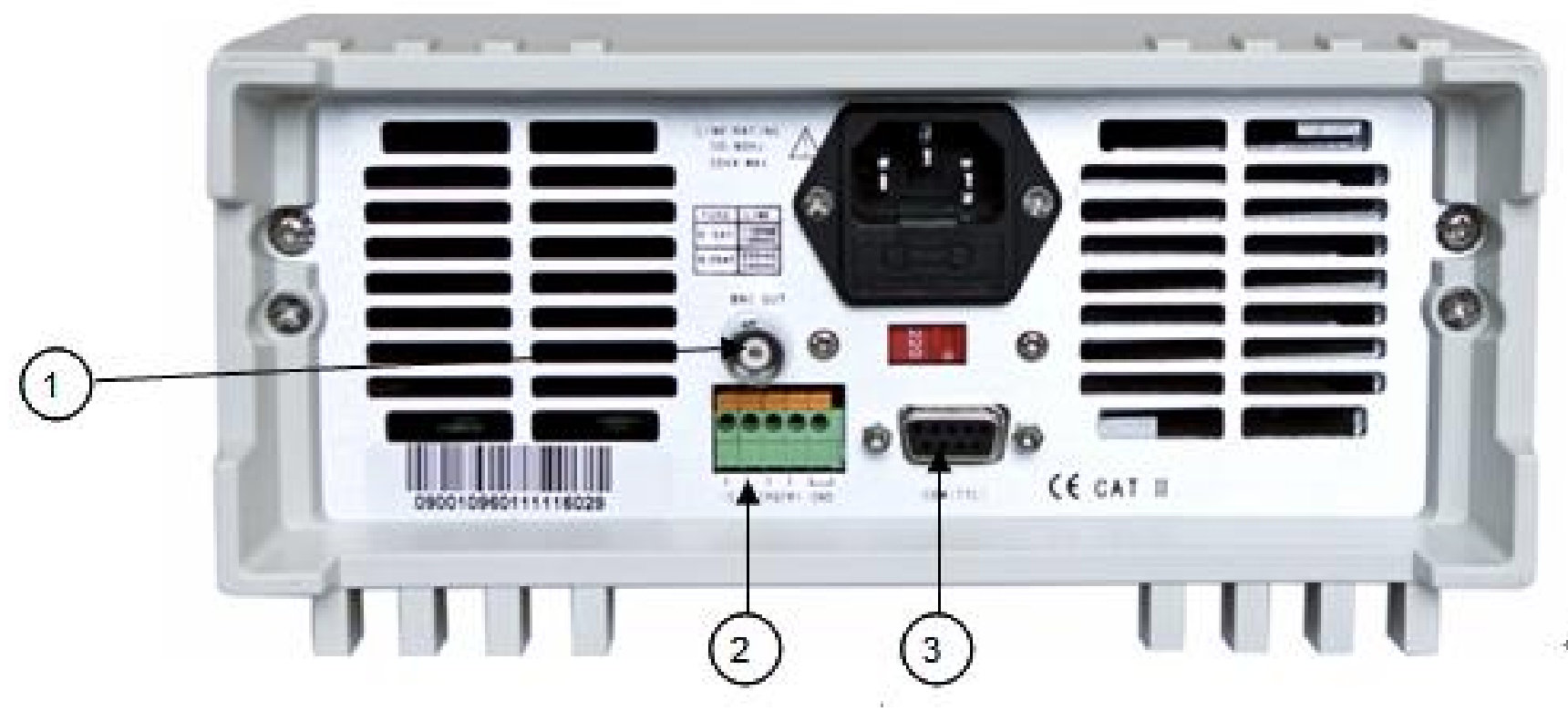

① BNC Out connector for 0-full range current that corresponds to 0-10V output. An Oscilloscope can be connected here to view dynamic waveforms. ② Remote Measurement terminals and triggers for the input/output interface. ③ DB Sub 9 pin multifunctional communications interface for RS232, RS485, and USB serial buses (with optional M133 D sub 9 to USB conversion cable). Do not connect an M131 cable with standard RS-232 voltages on the cables connectors. Doing so may damage the instrument and is not covered by WARRANTY. |
From 150W to 200KW, You can choose models from :
Reference: N69200
Brand: NGI
N69200 series is a high performance high power programmable DC electronic load with high reliability, high precision and multi-function. N69200 series has three voltage specifications: 150V, 600V, and 1200V. A standard 19”3U chassis can be up to 6kW. It supports parallel control and can realize power expansion through master+master and master+slave....
Reference: M9714
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1200W 0-150V 0-240A
Reference: M9716E
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3000W 0-150V 0-480A
Reference: M9712C
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 300W 0-150V 0-60A
Reference: M9713B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 600W 0-500V 0-30A
Reference: AC/DC Source and Load
Brand: BriPower
· Compact modular design, 15KVA in 4U · Bi-directional design · Output: AC, DC, AC+DC · Single unit: maximum 15KW, 450V L-N, 30A/ph, DC-1KHz output · Single phase, 3-phase, split phase, and multi-channel output · Various modes: Regenerative AC/DC source, regenerative AC/DC load, BiPolar DC source · Regenerative RLC load in full frequency range · True...
Reference: M9718B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: M9717B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: M9718F
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-150V 0-480A
Reference: SDL1020X
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 200 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 0.1 mV, 0.1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to...
Reference: SDL1020X-E
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 200 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 1 mV, 1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to 500 kHz...
Reference: AC/DC Power Source & Load
Brand: BriPower
· Modular design, output power from 15kVA to 1080kVA · Bi-directional AC/DC power source, seamless transition between source and sink modes · Regenerative AC/DC load function · Output: AC, DC, AC+DC · Using true current feedback control when working in CC mode · Frequency Range: DC~ 5kHz · Soft start: effectively restrain the impulse current when power...
Reference: M9717C
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-150V 0-5000A
Reference: DC Power Supply/E-Load
Brand: BriPower
· Output Power: 100kW/150kW/200kW/250kW/300kW · Output Voltage: 1000V/1500V/2000V · Output Current: *2 / *3 / *4 · Auto-Ranging Output · Soft start: effectively restrain the impulse current when power on · Seamless transition between source and sink modes · Current rise time (0% -90%) <5ms · CC/CV/CP/CR mode available · Regenerative DC load function
Reference: M9715
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-150V 0-240A
Reference: SDL1030X-E
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 300 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 1 mV, 1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to 500...
