The new M97XX series programmable DC electronic load is a new generation product designed by Maynuo Electronic Co., Ltd. Incorporating high-performance chips, the M97XX series delivers high speed and high accuracy with a resolution of 0.1 mV and 0.01 mA (basic accuracy is 0.03% and basic current rise speed is 2.5 A/μs). M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell, and fuel cell etc.test and measurement applications.

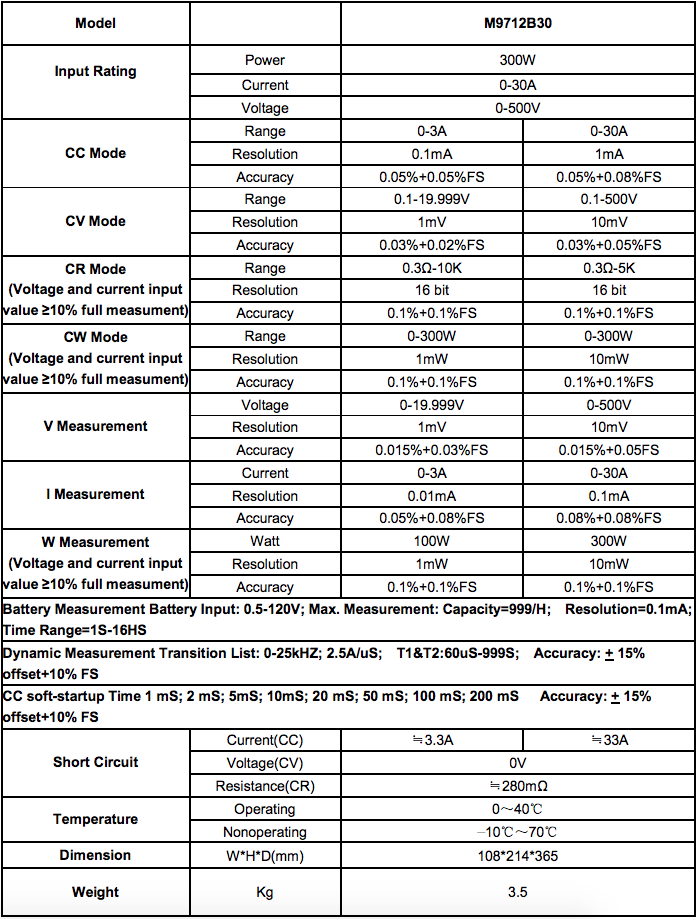

M9712B30 Electronic Load provides the maximum load to 300W, with the voltage 0-500V and current 0-30A.
M9712B30 provides both a large voltage range and a large current range.
 |

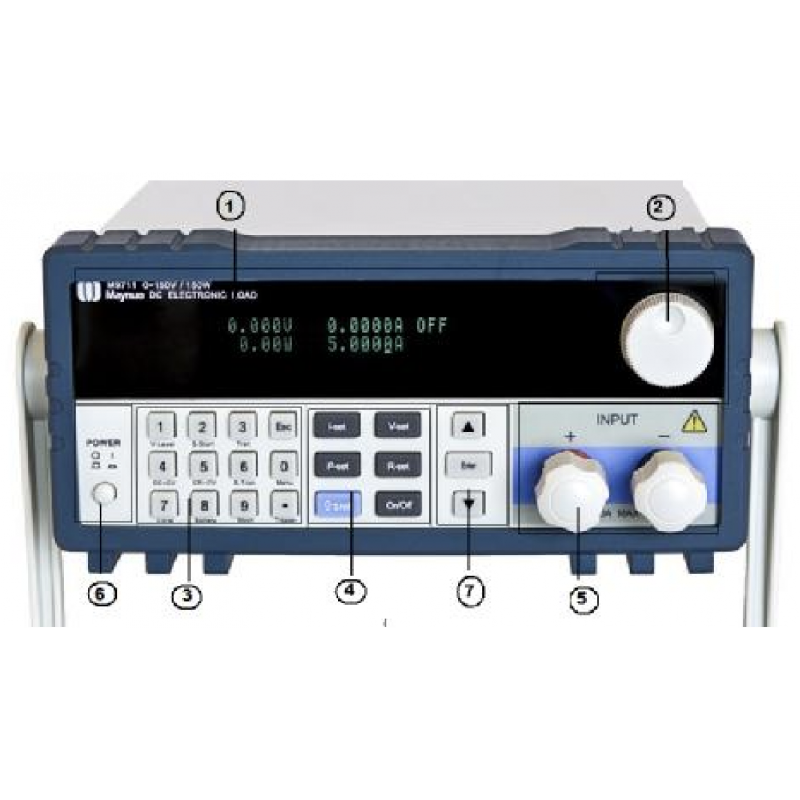

① The upper half is the black Vacuum Fluorescent Display (VFD) display screen. ② Rotary knob, Turn to adjust the setting values. ③ Numeric keys 0-9, ESC key, secondary key functions ④ Keypad: set up the current, voltage, power, resistance modes(I-set, V-set, P-set, R-set, Shift and On-Off); Scroll through menus and options ⑤ Input terminals ⑥ Power switch to turn on/off the instrument ⑦ Up-Down keys, Enter key |
 |
① BNC Out connector for 0-full range current that corresponds to 0-10V output. An Oscilloscope can be connected here to view dynamic waveforms. ② Remote Measurement terminals and triggers for the input/output interface. ③ DB Sub 9 pin multifunctional communications interface for RS232, RS485, and USB serial buses (with optional M133 D sub 9 to USB conversion cable). Do not connect an M131 cable with standard RS-232 voltages on the cables connectors. Doing so may damage the instrument and is not covered by WARRANTY. |
From 150W to 200KW, You can choose models from :
Reference: M9718F
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-150V 0-480A
Reference: M9718E
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-600V 0-120A
Reference: M9834
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over-current, over-voltage, overpower, overheating, and polarity reversal protection Available with RS232/RS485/USB serial interfaces. Supports remote voltage compensation and multi-data storage 10 kW 0-150V 0-500A
Reference: M9716
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 2400W 0-150V 0-240A
Reference: M9712C
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 300W 0-150V 0-60A
Reference: M9835
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over-current, over-voltage, overpower, overheating, and polarity reversal protection Available with RS232/RS485/USB serial interfaces. Supports remote voltage compensation and multi-data storage 15 kW 0-150V 0-500A
Reference: N83624
Brand: NGI
●Voltage range: 0-6V/0-15V ●Current range: 0-1A/0-3A/0-5A ●Single device with up to 24 channels, each channel isolated, series connection available ●Fast communication response, within 10ms for all channels programming response ●Professional application software, with data analysis and report ●High-definition color LCD screen, available for local...
Reference: N8361
Brand: NGI
●Voltage Range:0~20V ●Current Range:-10A~+10A ●Single channel power up to 200W ●Voltage rise and fall time ≤50μs ●Current Accuracy up to 1μA ●High precision DVM ●Support front and rear outlet, easier for desktop & integration ●With digital I/O, supporting trigger test ●LAN/RS232/CAN Interface
Reference: N6791A
Brand: Keysight
Outputs / inputs: 1 Maximum voltage: 0 to 60 V Maximum current: 0 to 20 A; 0 to 40 A Input power: 100 W; 200 W Operating modes: CV, CC, CR and CP Module width: Single-wide; up to four modules in a four-slot mainframe; Double-wide; up to two modules in a four-slot mainframe Call for Price. Contact AppVision Australia. N6791A N6792A Click a model to email...
Reference: EL4913A
Brand: Keysight
Input count: One regenerative electronic-load input per model Power ratings: 2 kW, 4 kW, 6 kW or 12 kW Voltage configurations: 80 V, 500 V or 800 V Current configurations: 8 A to 240 A depending on voltage and power rating EL4943A resistance range: 0.005 to 400 ohms EL4943A constant-power range: 0 to 12 kW Call for Price. Contact AppVision Australia....
Reference: M9714
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1200W 0-150V 0-240A
Reference: SDL1030X
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 300 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 0.1 mV, 0.1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to 500...
Reference: M9718D
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-500V 0-240A
Reference: SDL1020X
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 200 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 0.1 mV, 0.1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to...
Reference: M9717B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: N69200
Brand: NGI
N69200 series is a high performance high power programmable DC electronic load with high reliability, high precision and multi-function. N69200 series has three voltage specifications: 150V, 600V, and 1200V. A standard 19”3U chassis can be up to 6kW. It supports parallel control and can realize power expansion through master+master and master+slave....
