The new M97XX series programmable DC electronic load is a new generation product designed by Maynuo Electronic Co., Ltd. Incorporating high-performance chips, the M97XX series delivers high speed and high accuracy with a resolution of 0.1 mV and 0.01 mA (basic accuracy is 0.03% and basic current rise speed is 2.5 A/μs). M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell, and fuel cell etc.test and measurement applications.
M9712C Electronic Load provides the maximum load to 300W, with the voltage 0-150V and current 0-60A.
M9712C provides a larger current range than M9712.
 |

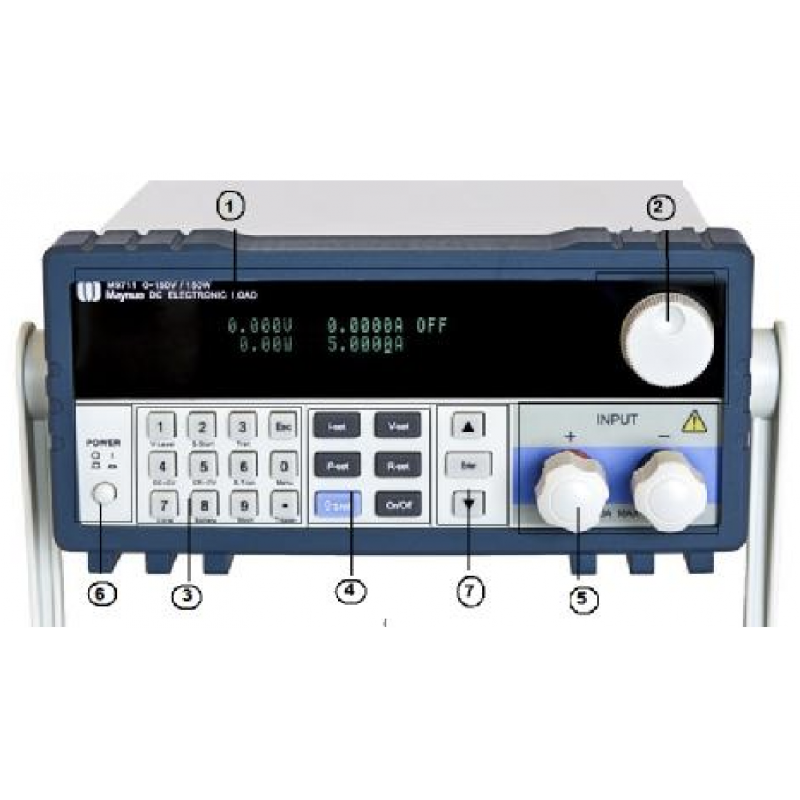

① The upper half is the black Vacuum Fluorescent Display (VFD) display screen. ② Rotary knob, Turn to adjust the setting values. ③ Numeric keys 0-9, ESC key, secondary key functions ④ Keypad: set up the current, voltage, power, resistance modes(I-set, V-set, P-set, R-set, Shift and On-Off); Scroll through menus and options ⑤ Input terminals ⑥ Power switch to turn on/off the instrument ⑦ Up-Down keys, Enter key |
 |
① BNC Out connector for 0-full range current that corresponds to 0-10V output. An Oscilloscope can be connected here to view dynamic waveforms. ② Remote Measurement terminals and triggers for the input/output interface. ③ DB Sub 9 pin multifunctional communications interface for RS232, RS485, and USB serial buses (with optional M133 D sub 9 to USB conversion cable). Do not connect an M131 cable with standard RS-232 voltages on the cables connectors. Doing so may damage the instrument and is not covered by WARRANTY. |
From 150W to 200KW, You can choose models from :
Reference: M9716B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 2400W 0-500V 0-120A
Reference: M9718E
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-600V 0-120A
Reference: M9717C
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-150V 0-5000A
Reference: M9718B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: AC/DC Source and Load
Brand: BriPower
· Compact modular design, 15KVA in 4U · Bi-directional design · Output: AC, DC, AC+DC · Single unit: maximum 15KW, 450V L-N, 30A/ph, DC-1KHz output · Single phase, 3-phase, split phase, and multi-channel output · Various modes: Regenerative AC/DC source, regenerative AC/DC load, BiPolar DC source · Regenerative RLC load in full frequency range · True...
Reference: M9715
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-150V 0-240A
Reference: M9718F
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-150V 0-480A
Reference: N61100
Brand: NGI
N61100 series is a multi-channel DC programmable electronic load, with high reliability, high integration, high cost performance and full features. It is tailored for integrated applications, featuring in high communication response speed and high stability. N61100 series is with 19-inch 3U size, up to 12 channels, and supports LAN, RS232, and RS485...
Reference: N3300A
Brand: Keysight
Slots / capacity by model: N3300A: 6; N3301A: 2 Maximum voltage by model: N3302A: 0 to 60 V; N3303A: 0 to 240 V; N3306A: 0 to 60 V; N3307A: 0 to 150 V Maximum current: 0 to 30 A; 0 to 10 A; 0 to 60 A; 0 to 120 A Input power: 150 W; 250 W; 500 W; 600 W Chassis format: Full rack; Half rack Call for Price. Contact AppVision Australia. N3300A N3301A N3302A...
Reference: M9718
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 6000W 0-150V 0-240A
Reference: M9716
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 2400W 0-150V 0-240A
Reference: M9835
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over-current, over-voltage, overpower, overheating, and polarity reversal protection Available with RS232/RS485/USB serial interfaces. Supports remote voltage compensation and multi-data storage 15 kW 0-150V 0-500A
Reference: M9716E
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3000W 0-150V 0-480A
Reference: SDL1020X
Brand: Siglent
Main Features DC 150 V/30 A, maximum total power 200 W Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs Four static/dynamic modes: CC/CV/CP/CR Readback resolution 0.1 mV, 0.1 mA CC Dynamic mode: Continuous, pulsed, toggled CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz Measuring speed of voltage and current: up to...
Reference: M9712B30
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 300W 0-500V 0-30A
Reference: EL4913A
Brand: Keysight
Input count: One regenerative electronic-load input per model Power ratings: 2 kW, 4 kW, 6 kW or 12 kW Voltage configurations: 80 V, 500 V or 800 V Current configurations: 8 A to 240 A depending on voltage and power rating EL4943A resistance range: 0.005 to 400 ohms EL4943A constant-power range: 0 to 12 kW Call for Price. Contact AppVision Australia....
