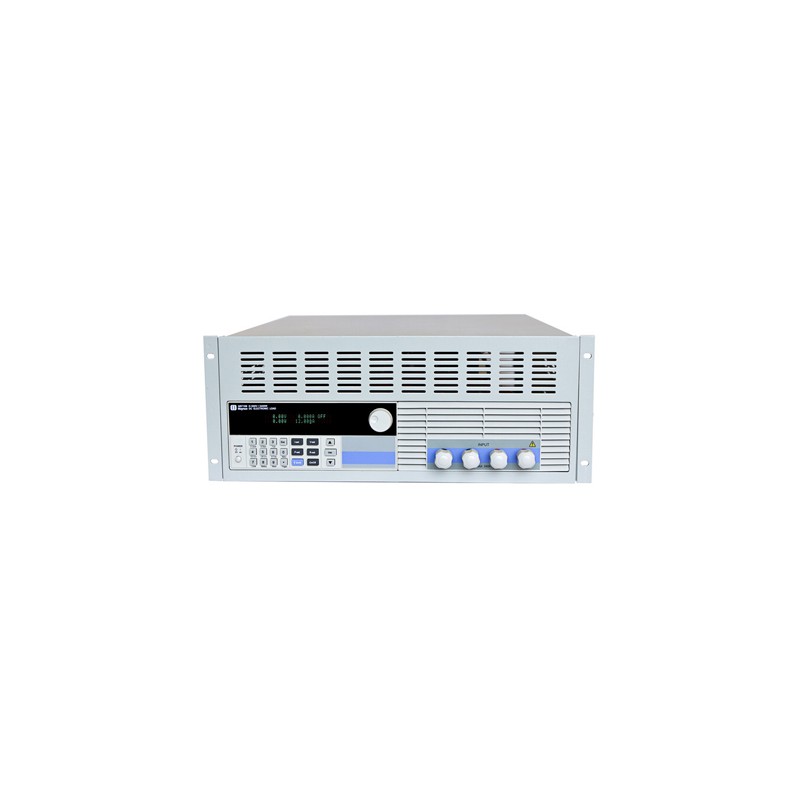

M9716 Programmable DC Electronic Load, 2400W, 0-240A, 0-150V

Overview:

M97series DC electronic load, as a new generation product of Maynuo Electronical Co., Ltd, is designed with high-performance chips, high speed, high accuracy, and with a resolution of 0.1 Mv and 0.01 mA (the basic accuracy is 0.03%, the basic current rise speed is 2.5 A/us). M97 series has a wide application in the production line (cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research institutes, automotive electronics, aeronautics and astronautics, ships, solar cells, fuel cell, etc.
M97 series offers users its novel design, rigorous process, and attractive cost-effectiveness.

M9716 Electronic Load provides the maximum load to 2400W, with the voltage 0-150V and a current of 0-240A.

Features:

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV
Over-current, over-voltage, overpower, overheating, and polarity reversal protection
High-luminance vacuum fluorescent display (VFD) screen with two lines, four-channel display
Intelligent fan system will automatically activate based on changing ambient temperatures
Soft-start time setting, activating the power supply in accordance with the set voltage value
Battery test and short-circuit test functions
Capable of the rising edge and falling edge dynamic testing
Supporting external trigger on either input or output
External current waveform monitor terminal output terminal
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration, and standard rack-mountable
Edits arbitrary waveforms in list function
Available with RS232/RS485/USB serial interfaces.

Application:

M97XX series have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell, and fuel cell etc.test and measurement applications.

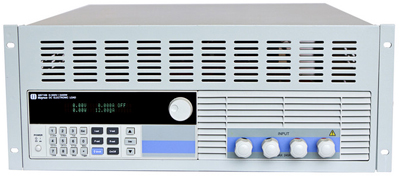

	① The upper half is a black VFD display screen and knob.  ② The bottom half left side to right side is Numeric keys 0-9, ESC key, Function keys, Up-Down keys, Enter key, an input terminal, and an output terminal.

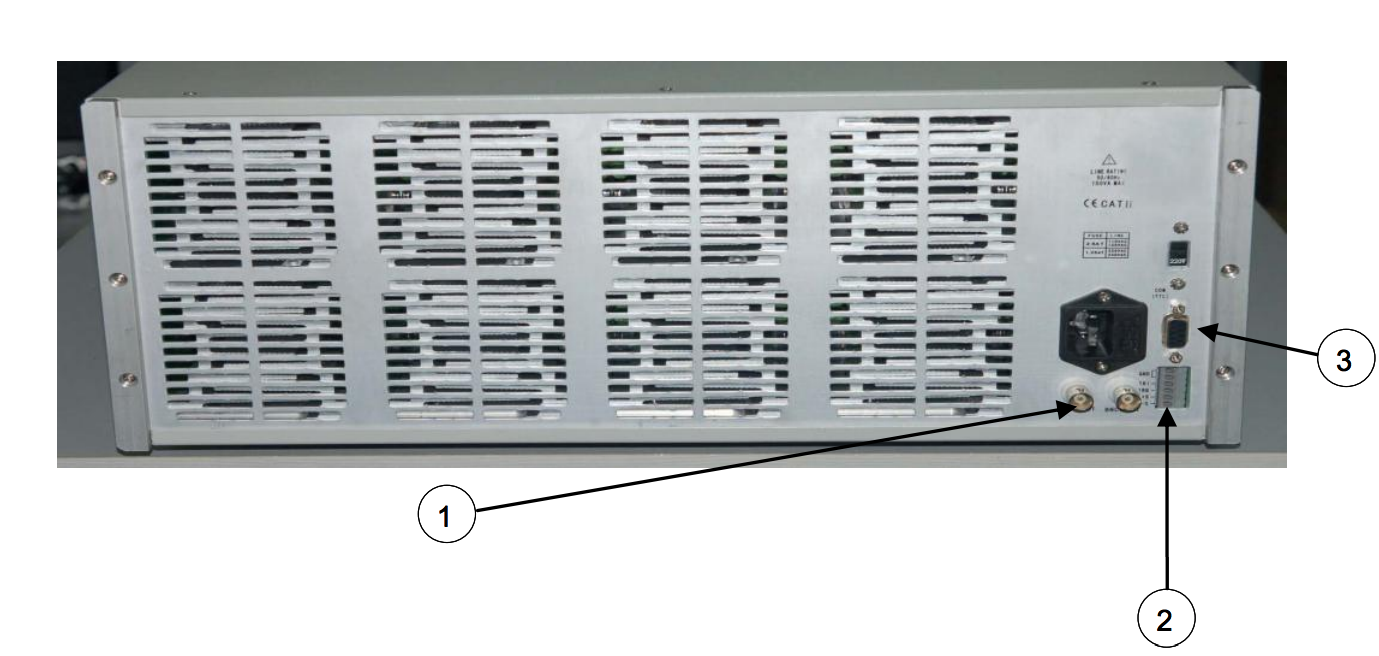

	① 0-full range current, in correspond to 0-10V output, Oscillograph can be connected by here to observe dynamic waveforms.  ② Remote Measurement terminals and trigger input/output interface. ③ Multifunctional communication interface RS232, RS485, USB.

From 150W to 200KW, You can choose models from :
