M9834 have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell and fuel cell etc.test and measurement applications.

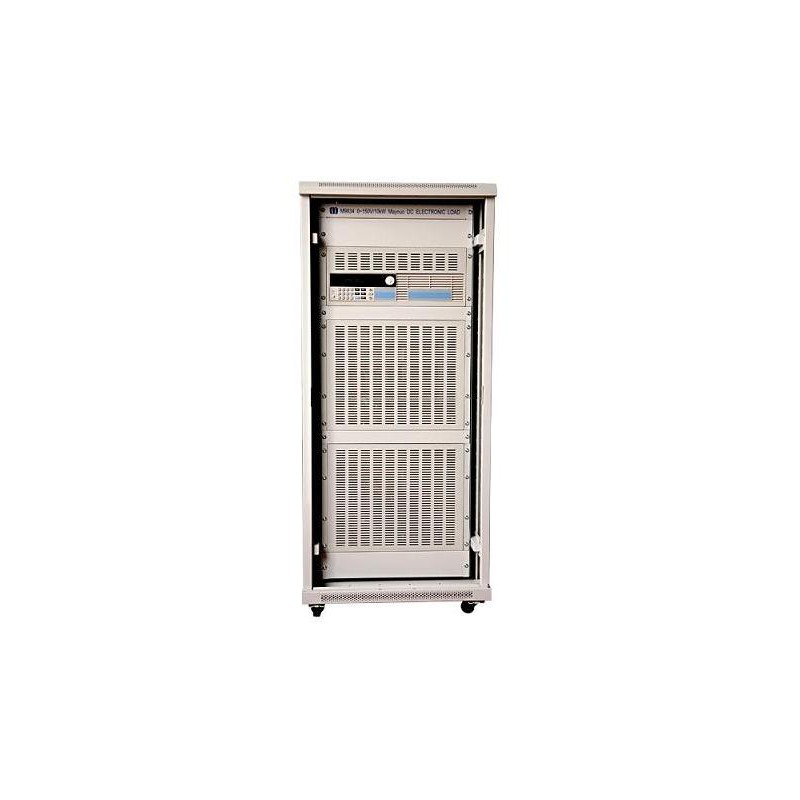

M9834 Electronic Load provides the maximum load to 10 kW, with the voltage 0-150V and a current of 0-500A.
Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV
Over-current, over-voltage, overpower, overheating, and polarity reversal protection
High-luminance vacuum fluorescent display (VFD) screen with two lines, four-channel display
Intelligent fan system will automatically activate based on changing ambient temperatures
Soft-start time setting, activating the power supply in accordance with the set voltage value
Battery test and short-circuit test functions
Capable of the rising edge and falling edge dynamic testing
Supporting external trigger on either input or output
External current waveform monitor terminal output terminal
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration, and standard rack-mountable
Edits arbitrary waveforms in list function
Available with RS232/RS485/USB serial interfaces.
From 150W to 200KW, You can choose models from :
| Model | M9834 | ||
| Input Rating | Power | 10KW | |
| Current | 0-500A | ||
| Voltage | 0-150V | ||
| CC Mode | Range | 0-50A | 0-500A |
| Resolution | 1mA | 10mA | |
| Accuracy | 0.1%+0.05%FS | 0.15%+0.2%FS | |
| CV Mode | Range | 0.1-19.999V | 0.1-150V |
| Resolution | 1mV | 10mV | |
| Accuracy | 0.03%+0.02%FS | 0.03%+0.02%FS | |
|
CR Mode (Voltage and current input value >=10% full measurement) |
Range | 0.03-10K Oh | 0.03-5K Oh |
| Resolution | 16 bit | 16 bit | |
| Accuracy | 0.1%+0.1%FS | 0.2%+0.15%FS | |
| CW Mode (Voltage and current input value >=10% full measurement) | Range | 0-7500W |
0-10KW |
| Resolution | 10mW | 100mW | |
| Accuracy | 0.1%+0.1%FS | 0.2%+0.15%FS | |
|
Voltage Measurement |
Voltage | 0-19.999V | 0-150V |
| Resolution | 1mV | 10mV | |
| Accuracy | 0.015%+0.03%FS | 0.015%+0.03%FS | |
| Current Measurement | Current | 0-50A | 0-500A |
| Resolution | 1mA | 10mA | |
| Accuracy | 0.1%+0.05%FS | 0.15%+0.2%FS | |
| Power Measurement (Voltage and current input value >=10% full measurement) | Power | 100W | 10KW |
| Resolution | 1mW | 10mW | |
| Accuracy | 0.1%+0.1%FS | 0.2%+0.15%FS | |
| Battery Test |
Battery Input:0.1-150V;Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H |
||
| Dynamic Test |
Transition List: 0-25kHZ; 5A/uS; T1&T2:60uS-999S; Accuracy:+15% offset+10%FS |
||
| Current soft-startup Time |
1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500ms;1000ms Accuracy:+15% offset+10%FS |
||
| Short Circuit | Current(CC) | =55A | =550A |
|
Voltage(CV) |
0V | ||
| Resistance(CR) | =5mOh | ||
| Temperature | Operating | 0~40oC | |
| Nonoperating | -10oC~70oC | ||
| Dimension | W*H*D(mm) | 700*1880*700 | |
| Weight | Kg | 300 | |
