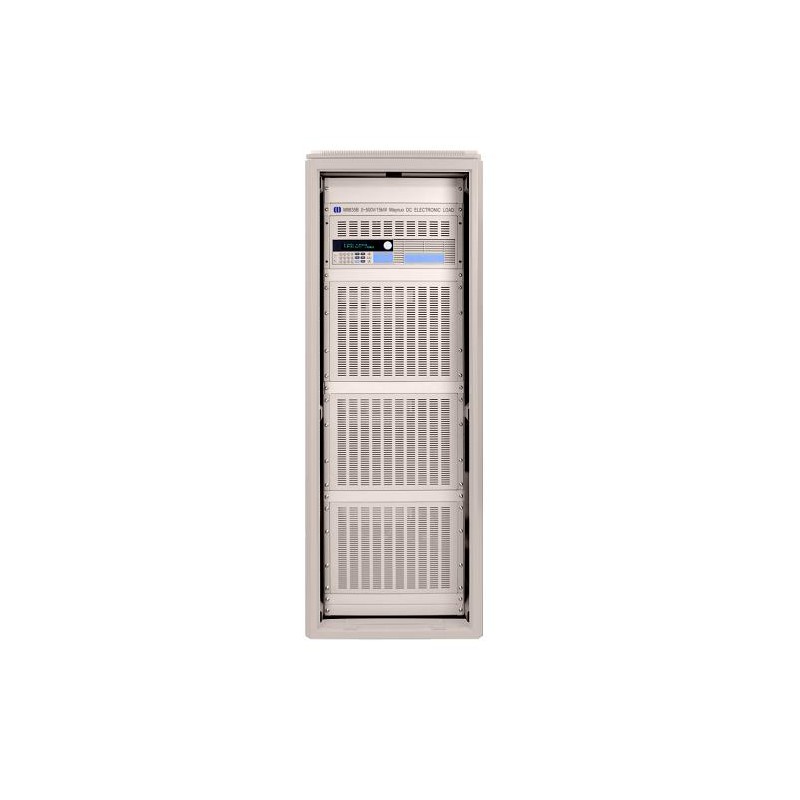

M9835, 15KW Programmable DC Electronic Load, 0-500A, 0-150V
  • M9835, 15KW Programmable DC Electronic Load, 0-500A, 0-150V

M9835, 15KW Programmable DC Electronic Load, 0-500A, 0-150V

M9835
Maynuo

Features:

  • Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV
  • Over-current, over-voltage, overpower, overheating, and polarity reversal protection
  • Available with RS232/RS485/USB serial interfaces.
  • Supports remote voltage compensation and multi-data storage
  • 15 kW
  • 0-150V
  • 0-500A
$62,238.00
Quantity
Buy now, get it in two-week

Description

Overview:

M9835 have wide application from production lines for cell phone chargers, cell phone batteries, electronic vehicle batteries, switching power supplies, linear power supplies, and LED drivers, to research institute, automotive electronic, aeronautic and astronautic, maritime, solar cell and fuel cell etc.test and measurement applications.

M9835 Electronic Load provides the maximum load to 15 kW, with the voltage 0-150V and a current of 0-500A.

Features:

Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV
Over-current, over-voltage, overpower, overheating, and polarity reversal protection
High-luminance vacuum fluorescent display (VFD) screen with two lines, four-channel display
Intelligent fan system will automatically activate based on changing ambient temperatures
Soft-start time setting, activating the power supply in accordance with the set voltage value
Battery test and short-circuit test functions
Capable of the rising edge and falling edge dynamic testing
Supporting external trigger on either input or output
External current waveform monitor terminal output terminal
Supports remote voltage compensation and multi-data storage
Power-on-self-test, software calibration, and standard rack-mountable
Edits arbitrary waveforms in list function
Available with RS232/RS485/USB serial interfaces.

From 150W to 200KW, You can choose models from :

All Loads.png

Specification:

Model M9835
Input Rating Power 15KW
Current 0-500A
Voltage 0-150V
CC Mode Range 0-50A 0-500A
Resolution 1mA 10mA
Accuracy 0.1%+0.05%FS 0.15%+0.2%FS
CV Mode Range 0.1-19.999V 0.1-150V
Resolution 1mV 10mV
Accuracy 0.03%+0.02%FS 0.03%+0.02%FS
  CR Mode     (Voltage and current input value >=10% full measurement) Range 0.03-10K Oh 0.03-5K Oh
Resolution 16 bit 16 bit
Accuracy 0.1%+0.1%FS 0.2%+0.15%FS
  CW Mode     (Voltage and current input value >=10% full measurement) Range 0-7500W

0-15KW
Resolution 10mW 100mW
Accuracy 0.1%+0.1%FS 0.2%+0.15%FS
Voltage  Measurement Voltage 0-19.999V 0-150V
Resolution 1mV 10mV
Accuracy 0.015%+0.03%FS 0.015%+0.03%FS
Current  Measurement Current 0-50A 0-500A
Resolution 1mA 10mA
Accuracy 0.1%+0.05%FS 0.15%+0.2%FS
  Power    Measurement (Voltage and current input value >=10% full measurement) Power 100W 15KW
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.2%+0.15%FS
Battery Test

Battery Input:0.1-150V;Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H
Dynamic Test

Transition List: 0-25kHZ; 5A/uS;  T1&T2:60uS-999S;  Accuracy:+15% offset+10%FS
Current soft-startup Time

1mS;2mS;5mS;10mS;20mS;50mS;100mS;200mS;500ms;1000ms   Accuracy:+15%  offset+10%FS
Short Circuit Current(CC) =55A =550A

Voltage(CV)

  0V
Resistance(CR) =5mOh
Temperature Operating 0~40oC
Nonoperating -10oC~70oC
Dimension W*H*D(mm) 700*1880*700
Weight Kg 300

DATASHEET

Product Details
M9835
