1. Multi-octave RF coverage (0.5 ~ 40GHz)
2. Octave RF coverage S, C, X, Ku, and Ka
3. 2GHz or above instantaneous signal bandwidth
4. Amplitude Equalization and Group Delay Equalization
5. Variety of commonly used IF and bandwidth combinations
6. Choices of coherent dual-channel or non-coherent dual-channel
7. Excellent phase noise specification ≤-100dBc/Hz@10KHz
8. Internal and external reference switching
9. Remote programming

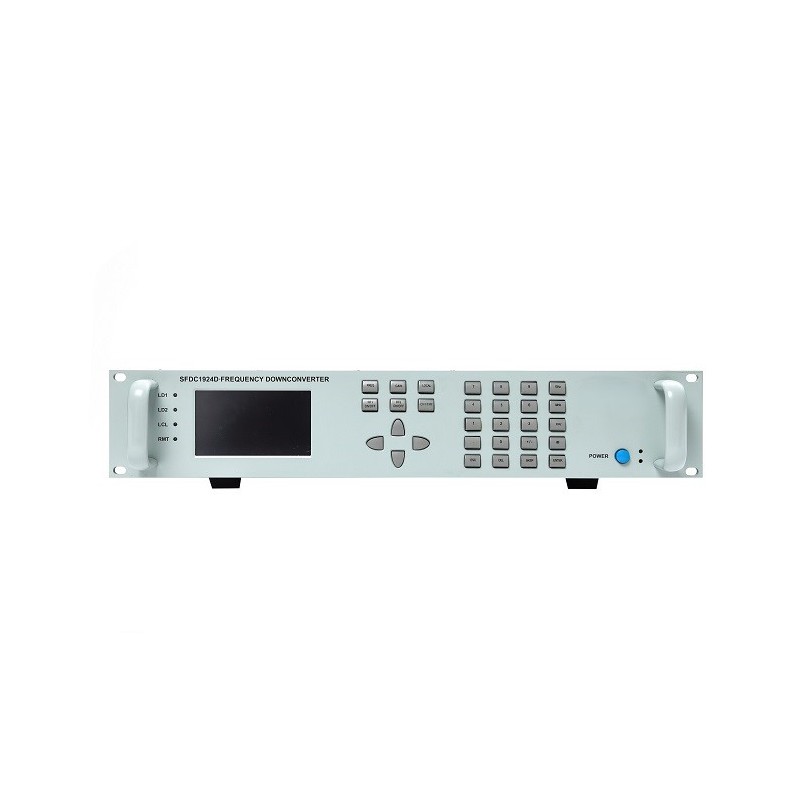

AppVision D Series Dual Channel Up/Downconverter belongs to our microwave converter series that has a high performance and a multi-octave or single octave coverage by RF signal. Its frequency step is precise and accurate to 1Hz with a variety of IF and signals bandwidth choices. This series of the converter is mainly applied to the electronic countermeasure system, radar system, and satellite communication system. The special dual-channel design has an excellent amplitude and phase stability that can be configured with a common synthesizer or double synthesizer work. With excellent phase noise, clutter suppression, and in-band flatness data, it is able to provide a transparent RF transmission channel to all videos or data communications. All programming commands can be set through a local panel or through the network remotely. D Series Dual Chanel Up/Downconverter is available in both 2U and 4U sizes.
T&M Systems
Satellite Communications
MIMO
|
Output Characteristics |
Frequency Range |
0.5～40GHz |
|
P-1dB Compression Point |
≥14dBm |
|
|
Frequency Tuning Step Size |
10Hz |
|
|
IM3 Output |
≤-36dBc (△5MHz, maximum gain, power output: 20dBm) |
|
|
Output VSWR |
≤2.5 |
|
|
Output Impedance |
50Ω |
|
|
Input Characteristics |
Input Frequency |
70±20MHz,140±40MHz,1.2±0.25GHz,1.2±0.5GHz, 1.8±1GHz (Select between single or multiple IF inputs) |
|
Maximum Power Input |
+10dBm (Operating) |
|
|
Input Impedance |
50Ω |
|
|
Input VSWR |
≤1.5 |
|
|
Transfer Characteristics |
Gain |
0～15dB （Minimum signal power output -100dBm or below, ATT110 support） |
|
Tunning Step Size |
0.1dB |
|
|
Programming Resolution |
≤±1dB |
|
|
Level Stability |
≤±0.5dB p-p maximum/day at room temperature |
|
|
Gain Flatness |
≤±0.3dB/40MHz, ≤±0.5dB/80MHz, ≤±1dB/500MHz, ≤±1.5dB/1000MHz, ≤±2dB/2000MHz |
|
|
≤±2dB/Full Band |
||
|
Inband Frequency Clutter |
≤-55dBc (Excluding output harmonics) |
|
|
Group Delay |
Linear: ≤0.03ns/MHz |
|
|
(80% Signal Bandwidth) |
Parabola: ≤0.01ns/MHz2 |
|
|
Jitter: ≤1ns |
||
|
AM/PM Conversion |
≤0.1º/dB (Maximum gain, 0dB output) |
|
|
Conversion Sense |
Non-inverted |
|
|
RF Shutdown Feature |
≥80dB |
|
|
Phase Noise (dBc/Hz) |
≤-50@10Hz |
|
|
≤-80@100Hz |
||
|
≤-95@1KHz |
||
|
≤-100@10KHz |
||
|
≤-100@100KHz |
||
|
≤-105 @1MHz |
||
|
Reference Characteristics |
Internal Reference Frequency Stability |
±2e-8 (0℃～+50℃, after 30min power on) |
|
Internal Reference Frequency Accuracy |
0.05ppm |
|
|
Internal Reference Power Output |
5±2dBm，50Ω，10MHz，Sine wave |
|
|
External Reference Power Input |
5±2dBm，50Ω，10MHz，Sine wave |
|
|
Reference Phase Noise |
≤-125dBc/Hz@10Hz |
|
|
≤-140dBc/Hz@100Hz |
||
|
≤-150dBc/Hz@1KHz |
||
|
≤-155dBc/Hz@10KHz |
||
|
≤-155dBc/Hz@100KHz |
||
|
Physical Characteristics |
Input and Output Ports |
RF Output: 2.92mm K-KFD |
|
IF Input: SMA-KFD |
||
|
I/Q Input: SMA-KFD |
||
|
External Reference Input: BNC female |
||
|
Internal Reference Output: BNC female W |
||
|
External Pulse Modulation Input: BNC female |
||
|
Internal Pulse Modulation Output: BNC female |
||
|
Control Interface |
RJ-45（TCP/IP over Ethernet ）/RS422 |
|
|
Power Supply |
AC,176～264VAC，45Hz～65Hz，Power consumption 140W |
|
|
Environment |
Operating |
Temperature: 0℃～+50℃ |
|
Humidity: up to 95% @30°C, Noncondensing |
||
|
Height: 3000 meters |
||
|
Nonoperating |
Temperature: -30℃～+70℃ |
|
|
Humidity: Up to 95% @40°C, Noncondensing |
||
|
Height: 12000 meters |
||
|
Shock and Vibration: Regular road transport/air transport |
Reference: UD Module
• RF: 6 to 20 GHz • IF: 1 to 10 GHz • Adjustable LO frequency: 6 to 20 GHz • Conversion Loss: 10 dB (typical) • Integrated with an internal LO source • Simultaneously up and down conversion for each channel • Ideal for WiFi-6/7, UWB, LEO applications
Reference: AppVision C Series Upconverter
Brand: AppVision
Features & Benefits: 1.Octave RF coverage (S, C, X, Ku, and Ka) 2.2GHz or above instantaneous signal bandwidth 3.Amplitude Equalization and Group Delay 4.Variety of commonly used IF and bandwidth combinations 5.Excellent phase noise specification (40GHz): ≤-100dBc/Hz@10KHz 6.Internal and external reference switching 7.Remote programming 8.Self-testing...
