Overview:

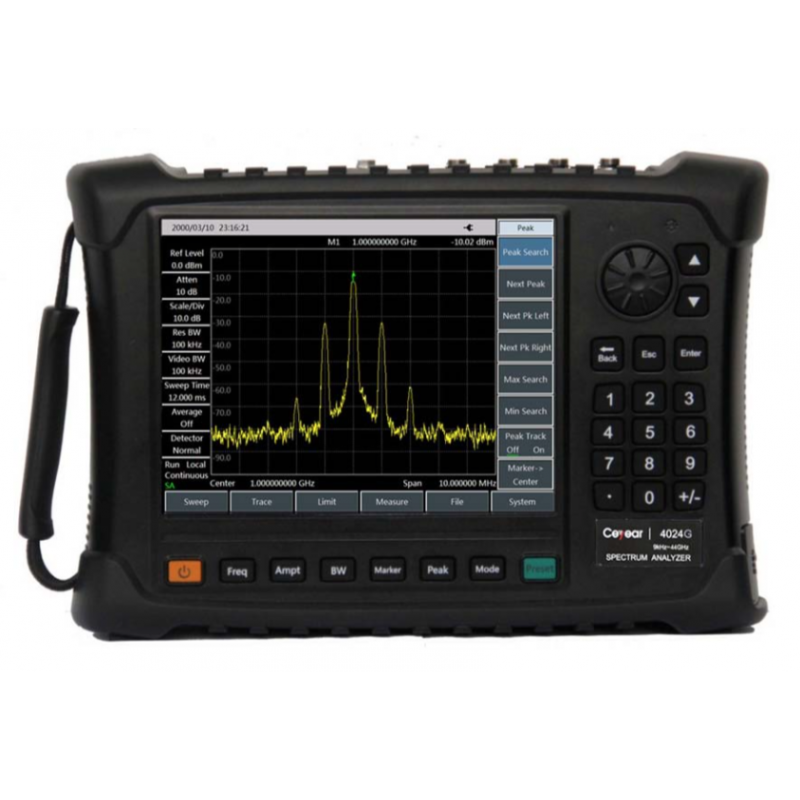

Ceyear 4024 series spectrum analyzer feature it's wide frequency range, high sensitivity, fast sweep speed, friendly usage and various application coverge. It has the advantages of excellent displayed average noise level, low phase noise, and high sweep speed. In terms of measurement functions, it has measurement functions of the spectrum analyzer, interference analyzer, AM/FM/PM analyzer, power meter, channel scanner, etc., as well as intelligent measurement functions of channel power, occupied bandwidth, adjacent-channel power, tune&listen, emission mask, and carrier-to-noise ratio, etc. 4024 adopts the integrated design of 8.4 inch LCD and capacitive touch screen, which improves the display definition and operation convenient. It is handheld, compact, and light, with a flexible power supply, which is very suitable for fieldwork.
Ceyear 4024 can be used for signal and equipment tests in the fields of aerospace, microwave & satellite communication, radio communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
Main Characteristics
- Wide frequency range: from 9kHz to 44GHz, 7 models
- Low displayed average noise level: -163dBm@1Hz RBW(typical)
- Excellent phase noise performance: -112dBc/Hz@100kHz frequency offset@1GHz carrier(4024A/B/C) -106dBc/Hz@100kHz frequency offset@1GHz carrier(4024D/E/F/G)
- High sweep speed: for 1GHz span, shortest sweep time <20ms
- Resolution bandwidth: 1Hz～10MHz
- Full-band pre-amplifier: standard configuration

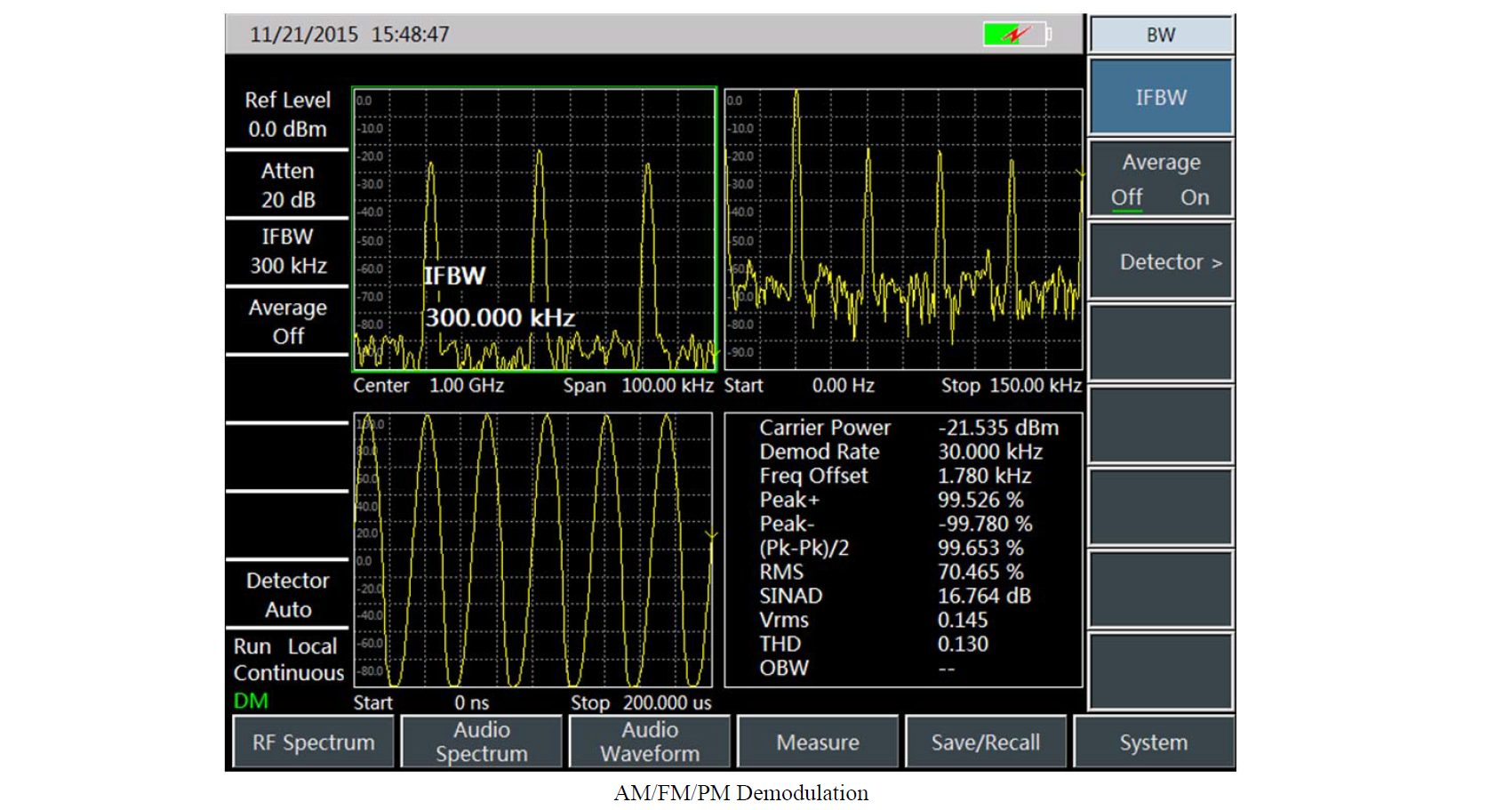

- Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel scanner, high accuracy power meter, signal analyzeretc.

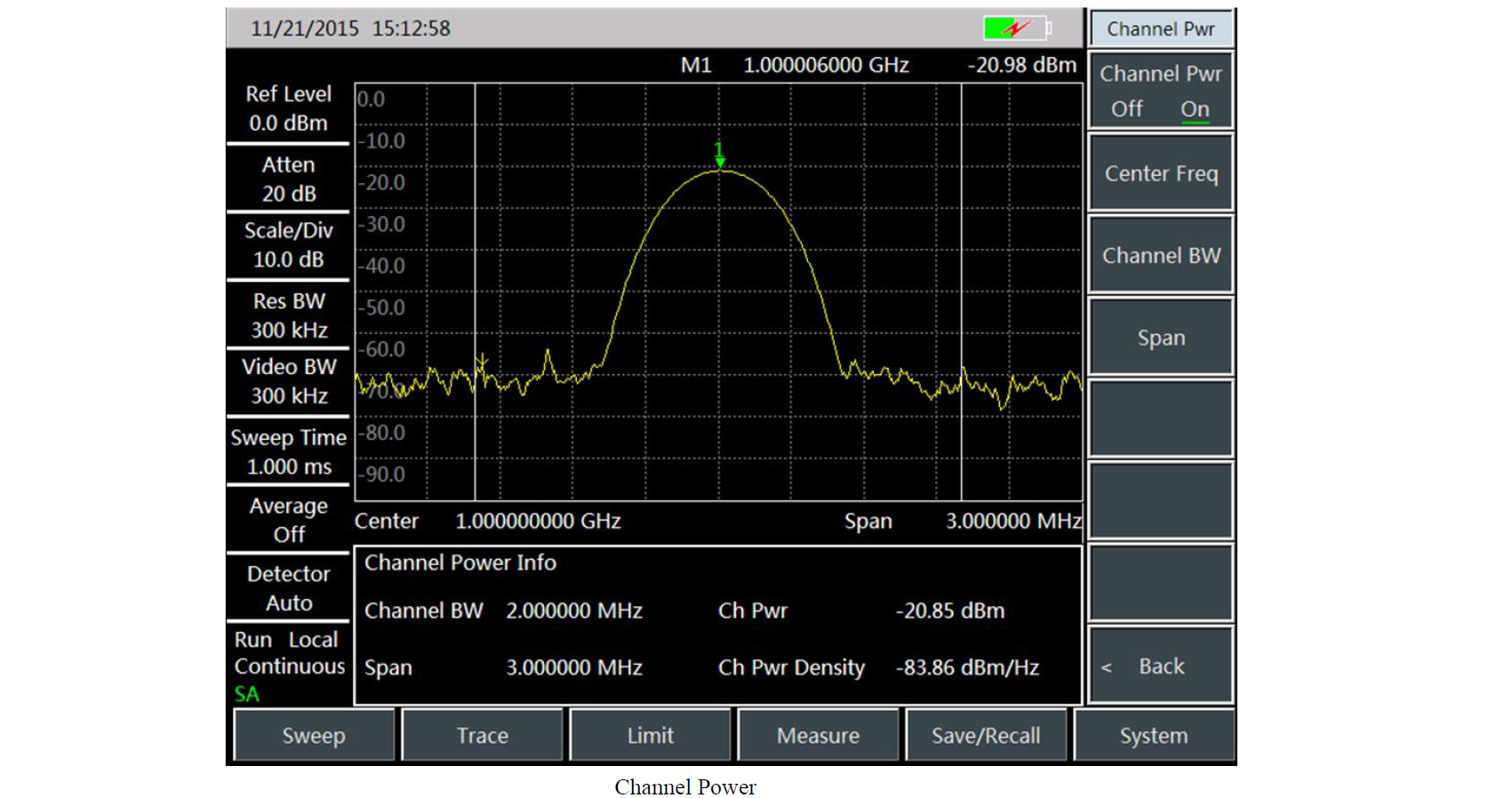

- Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel power ratio, tune&listen, carrier-to-noise ratio, emission mask.
- Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna
- interface, zero span IF output interface, external triggering input interface etc.
- Easy & convenient user operation: 8.4 inch high definition LCD and large font display,
- convenient capacitive touch screen operation, combination of LCD and touch screen, various display modes etc.
- Working temperature range: -10℃～50℃, Power supplied by battery or adapter.
