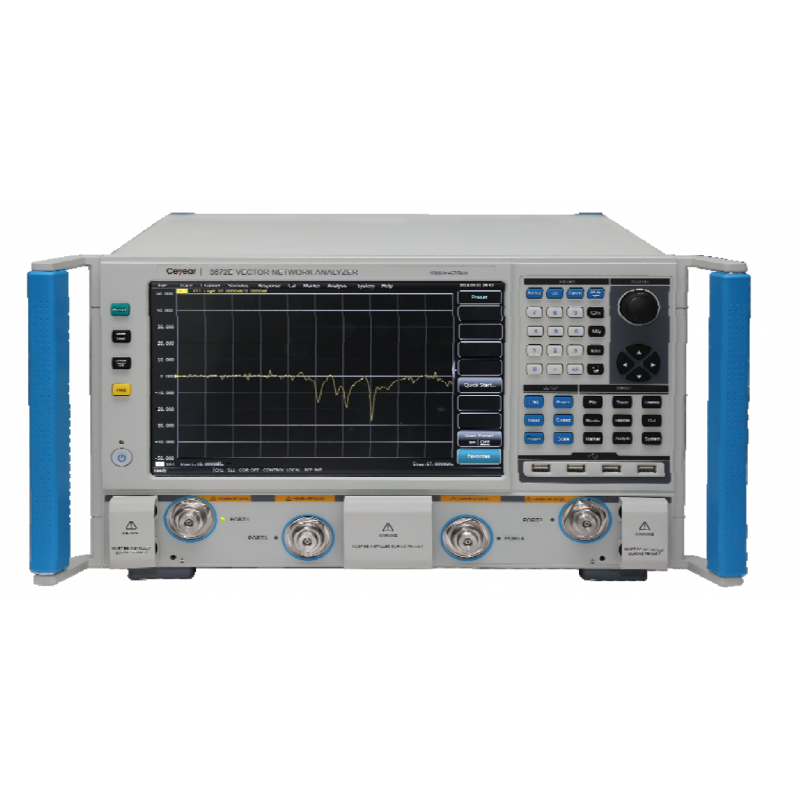

Ceyear 3672E 67GHz 2-port or 4-port VNA

3672E
Ceyear
  • 50MHz to 67GHz
Quantity

Description

  • Frequency range: 50MHz to 67GHz
  • Large test dynamic range, 120dB@20GHz.
  • Two port and four port configuration
  • Support all typical RFMW comoponent test: Amplifer, Filter, Mixer, Antenna&RCS  Pulse component in Radar, Material parameter test,
  • Multi parameter test by single connection, support multi-window, multi-channel tests. high test efficiency for PA and on-wafter test.
  • Operate easily, Record/run, one-click operation greatly simplifies the measurement setting steps.
  • Rich interface with USB, GPIB, LAN and VGA display interface

  • 12.1 inch high resolution touch screen

3672 Series Vector Network Analyzers include

3672A (10MHz～13.5GHz),

3672B (10MHz～26.5GHz),

3672C (10MHz～43.5GHz),

3672D (10MHz～50GHz)

3672E (10MHz～67GHz).

3672 is high performance Network analyzer with leading key performance such as sweep speed and dynamic range it support wide varities RFMW component composite parameter test by single connection, the embedded computer system (ECS) with high-performance microprocessor chip and the platform based on Windows operating system has greatly improved interconnectivity andusability of the complete machine. 3672 analyzers provide multiple calibration types including frequencyresponse, single port, response isolation, enhanced response and full dual-port, electronic calibration etc., offer various display formats such as logarithmic amplitude, linear amplitude, standing-wave, phase, groupdelay, Smith chart and polar coordinates.

Product Details
3672E

Data sheet

Frequency Range
67GHz
