Ceyear 2438C THz Power Meter up to 750GHz
  • Ceyear 2438C THz Power Meter up to 750GHz
  • Ceyear 2438C THz Power Meter up to 750GHz
  • Ceyear 2438C THz Power Meter up to 750GHz

Ceyear 2438C THz Power Meter up to 750GHz

CW-2438C
Ceyear
  • 2438C A mode support one channel test, B mode for dual CH.

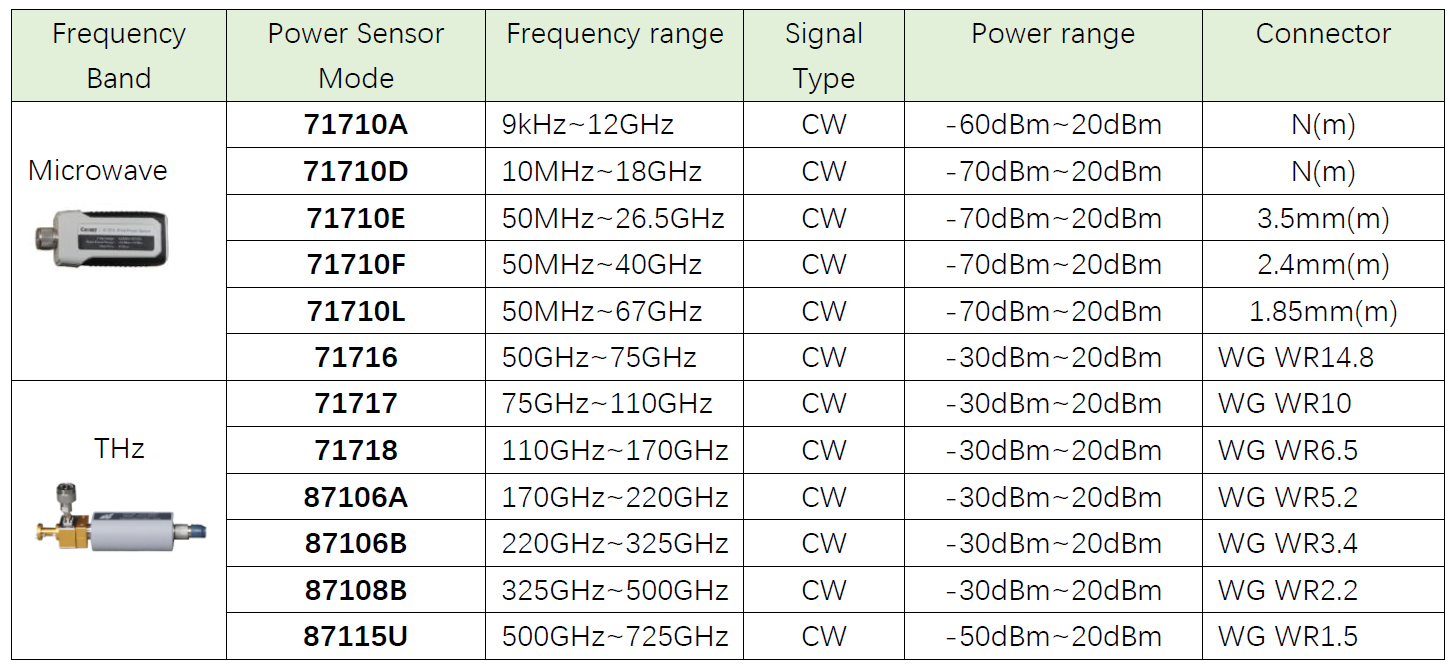

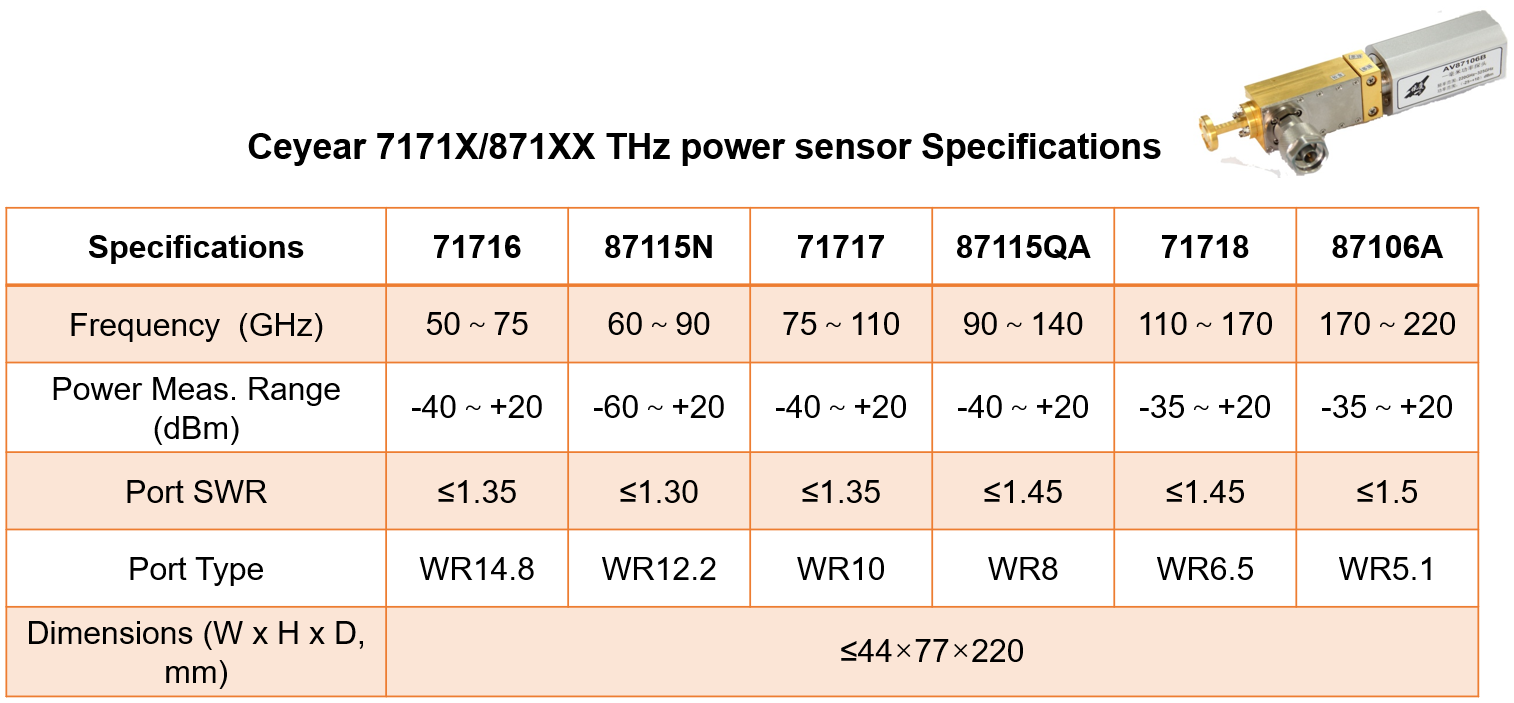

  • Abundant power sensors, CW coaxial power sensor frequency up to 67GHz, Waveguide sensor support to 750GHz
  • Max. dynamic range: 90dB
  • High accuracy
  • Internal calibration technology
  • Flexible frequency response offset list settings, with high-power attenuator or high-power
  • directional coupler to achieve accurate measurement of signal power
  • GPIB, LAN, USB, programmable control
Quantity

Description

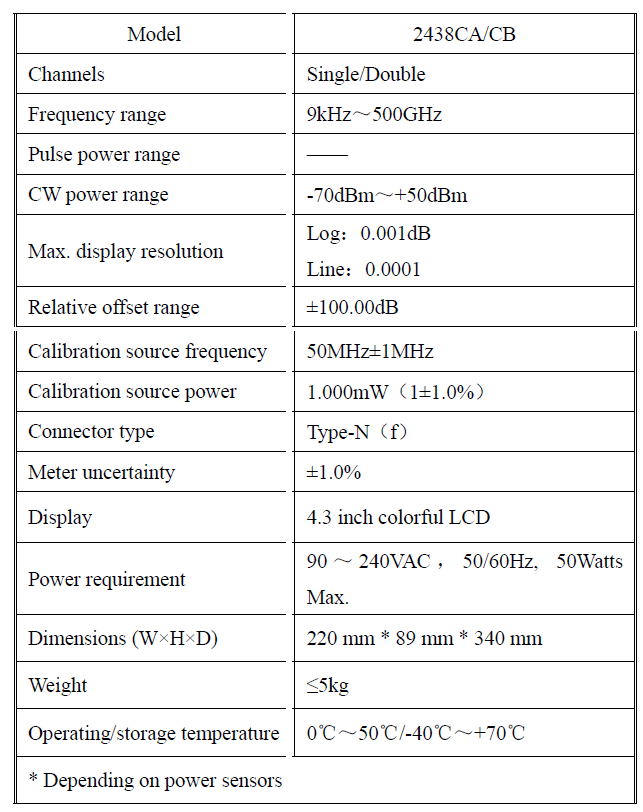

Ceyear 2438C series microwave power meter consists of power meter and a series of microwave power sensors. by adopting the industry leading broadband diode detector, digital signal processing technology and multidimensional calibration compensation technology , The 2438C series power meter feature wide frequency band up to THz, large dynamic range, high accuracy.  It iswidely used for measuring and calibrating the average power, applicaton cover R&D, production, compliance test, maintenance in radar, electronic countermeasures, communications and others.

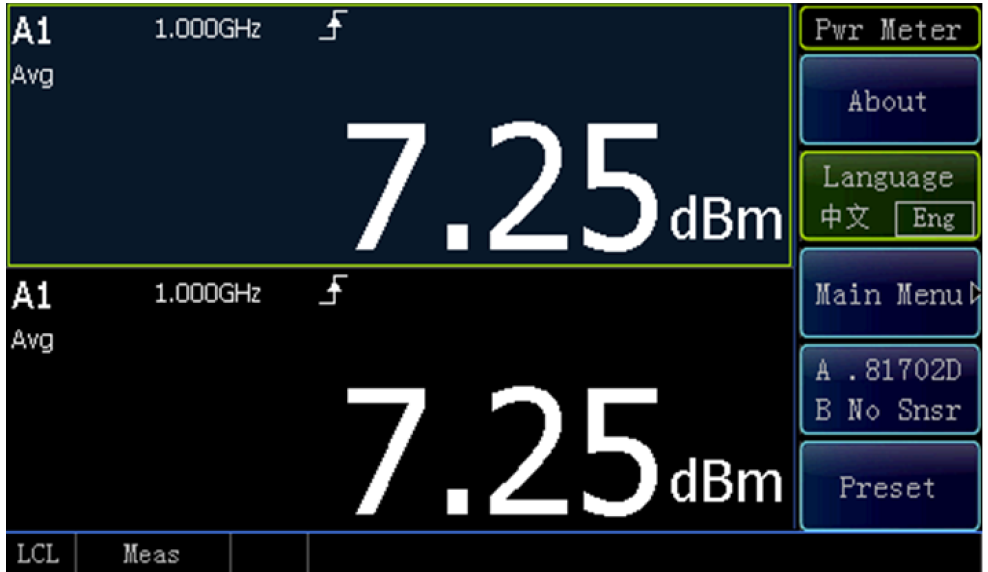

Ceyear 2438C-B power meter provide two indepdent test channel that can be used for component gain test or signal monitor for device under working condition.

Product Details
CW-2438C
