Product Overview The SIGLENT SNA5012A Vector Network Analyzers have a frequency range of 9 kHz to 8.5 GHz,with 2 test ports. SNA5012A support RF component S parameters,time-domain parameter measurements.
The SNA5000A series VNAs acheive high performance by advanced receiver technology, feature it's high dynamic range and lower test trace noise, enable SNA5000A VNA support high rejection filter and other RF component S parameter test.

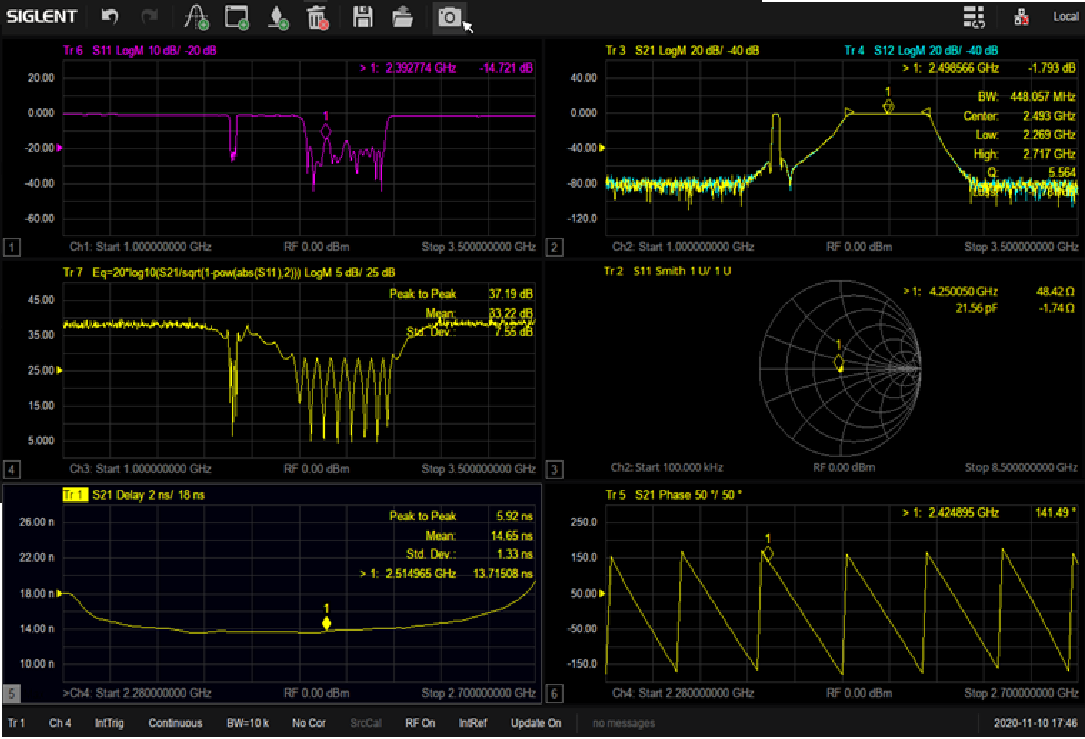

SNA5000A support multi window test and dispaly, give compsite parameter fo DUT with single connection and calibration.

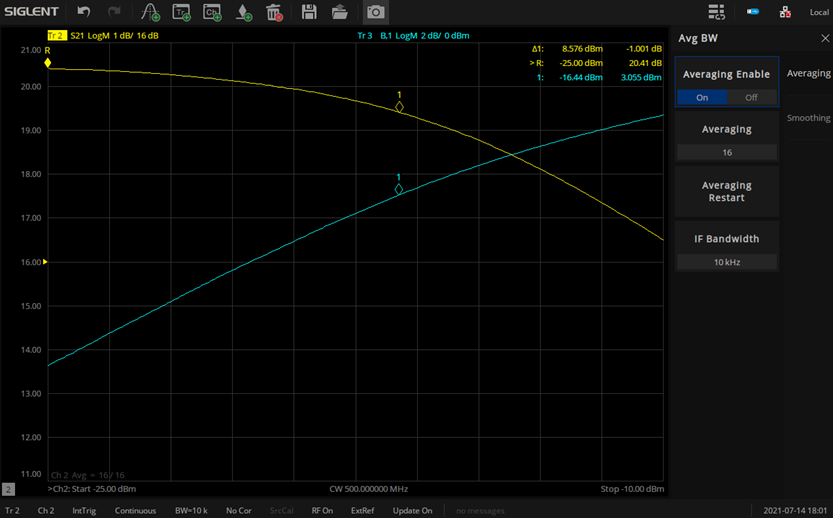

With power sweep test mode, SNA5000A can give DUT input/output power compression point easily.
Time domain and advanced TDR test function are used for high speed digtial component test, conducting mismatch distance analysis and Eye diagram test.

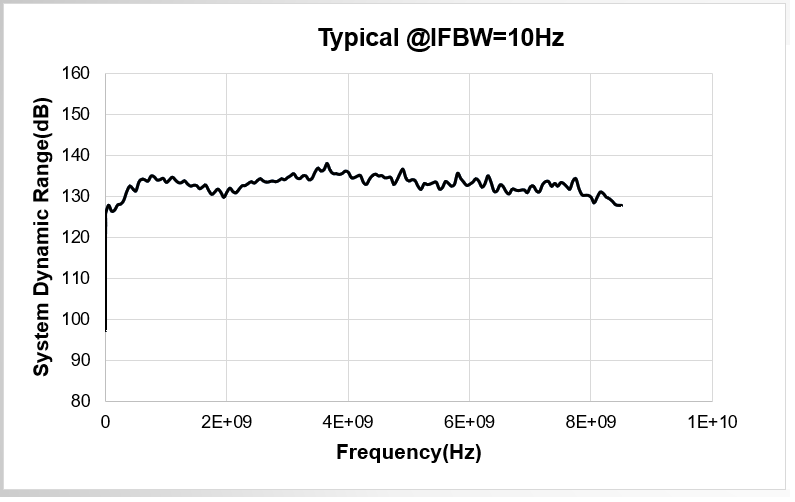

SNA5000A feature over 125dB test dynamic range which is critical for high rejection filter test.

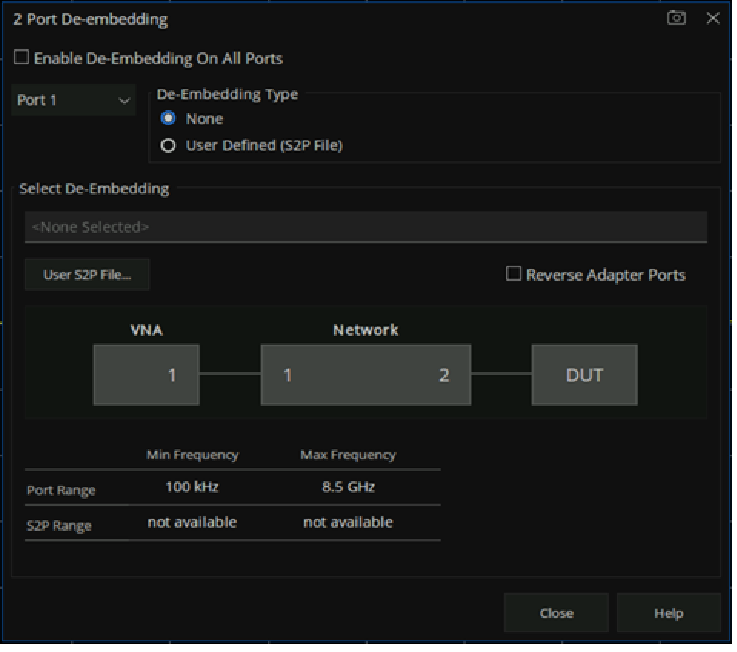

SNA5000A support embeding and de-embeding analysis function, simulating virtual matching circle or different port impedance.
All the Siglent products are eligble for education discount. Please send your inquiry to admin@appvision.com.au to get the discounted quotation if you are from Unviersities, TAFEs, CSIRO, high schools or other education organisations
Option Name
Description
SNA5000-HPR
High Performance Reference Source
please send your inquiry to admin@appvision.com.au to get the quotation
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ
Frequency resolution:1 Hz
Level resolution: 0.05 dB
Range of IFBW: 1 HZ~10 MHZ
Setting range of output level: 55 dBm~+10 dBm
Dynamic range: 135 dB
Internal Bias-Tee connections
Interface: LAN, USB Device, USB Host, (USB-GPIB)
Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ
Frequency resolution:1 Hz
Level resolution: 0.05 dB
Range of IFBW: 1 HZ~10 MHZ
Setting range of output level: 55 dBm~+10 dBm
Dynamic range: 135 dB
Internal Bias-Tee connections
Interface: LAN, USB Device, USB Host, (USB-GPIB)
Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
Frequency range: 100 kHz - 13.5 GHz and 100 kHz-26.5 GHZ
Frequency resolution:1 Hz
Level resolution: 0.05 dB
Range of IFBW: 1 HZ~10 MHZ
Setting range of output level: 55 dBm~+10 dBm
Dynamic range: 135 dB
Internal Bias-Tee connections
Interface: LAN, USB Device, USB Host, (USB-GPIB)
Remote control: SCPI/ Labview/ IVI based on USB-TMC/VX1-11 / Socket...
High performance Vector Network Analyzer. support frequency&power sweep and smart segment sweep mode
Support wide variety of RF component test: Amplifier, filter, Cable, High speed digital etc.
Frequency Range: 9kHz~8.5GHz
4 Test Port, Internal bias Tee included. Support differential component balanced S parameter test
125dB dynamic Range
IF BW:...
