The SDS6054A Oscilloscope employs Siglent’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256- level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. ols such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye/Jitter Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS6054A.The large 12.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Achieve more with SDS6000A oscilloscope

SIGLENT SDS6000A oscilloscope comes with 2 GHz bandwidth model. To protect customer's investment, 500MHz model can be upgraded to 2 GHz after purchase. Provided with newly designed SAP2500 and SAP2500D active probes, eye diagram and jitter analysis are possible.

SDS6000A comes with even more memory depth. 500Mpts combined with the hardware based zoom function, you can view large and small-scale signal details simultaneously.

Sampling rate is up to 5GSa/s(10GSa/s ESR) per channel, even when you use all four channels at the same time. This fully improve the usability of four channels.

With the abundant analysis tools, SDS6000A is an ideal everyday R&D oscilloscope.

Modern form factor balances ease-of-use and desk space

SDS6000A is easy to move around the lab and occupy small desk space. The big 12.1 inch and high resolution touch screen provides intuitive control and clear information for faster debugging.

Save data on SDS6000A is also convenient. Just press Print button or take screenshot via remote web-server.

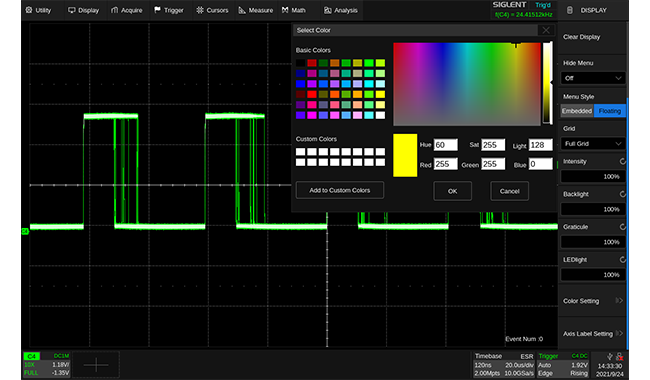

It is also easily customized, you can choose your favorite channel traces colors, default settings, menu styles, measurement formats and so on. The faster UI response of SDS6000A makes R&D work even more pleasing.

Newly designed active probes

SAP1000 active probe was released with SDS5000X oscilloscope. This time SDS6000A comes with two newly designed active probes. SAP2500 is single ended via SAP2500D is 2.5 GHz differential active probe. With the Eye diagram/ Jitter analysis functions, SDS6000A is more capable in high speed circuits design and signal integrity measurements.

Key Features SDS6000A Series

• 4 analog channels, up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate at each channel.
• Low background noise, supports 0.5 mV/div to 10 V/div vertical scales.
• SPO technology
• Waveform capture rates up to 170,000 wfm/s (normal mode), and 750,000 wfm/s (sequence mode)
• Supports 256-level intensity grading and color temperature display modes
• 500 Mpts Record length in total for all 4 channels
• Digital trigger system

• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols I 2 C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL- STD-1553B, SENT and Manchester.
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event.
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames.
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor.
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis and Eye/Jitter Analysis. High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks.
• 16 digital channels (optional)
• 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
• Large 12.1” TFT-LCD display with 1280 * 800 resolution; Capacitive touch screen supports multi-touch gestures.
• Interfaces include: USB Hosts, USB Device (USBTMC), LAN（VXI-11/ Telnet/ Socket）, micro SD card, Pass/Fail, Trigger Out, HDMI.
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard

Accessories Included:

1 x USB cable

1 x Quick start

4 x Passive probe (SP3050A)

1 x Certificate of calibration

1 x Wireless mouse

1 x Power cord

Optional License/Accessories

(need to be purchased separately)
