Siglent SDG7102A Multi-function Waveform Generator 1GHz 2-CH 5 GSa/s 14-bit
  • Siglent SDG7102A Multi-function Waveform Generator 1GHz 2-CH 5 GSa/s 14-bit

Siglent SDG7102A Multi-function Waveform Generator 1GHz 2-CH 5 GSa/s 14-bit

SDG7102A
Siglent

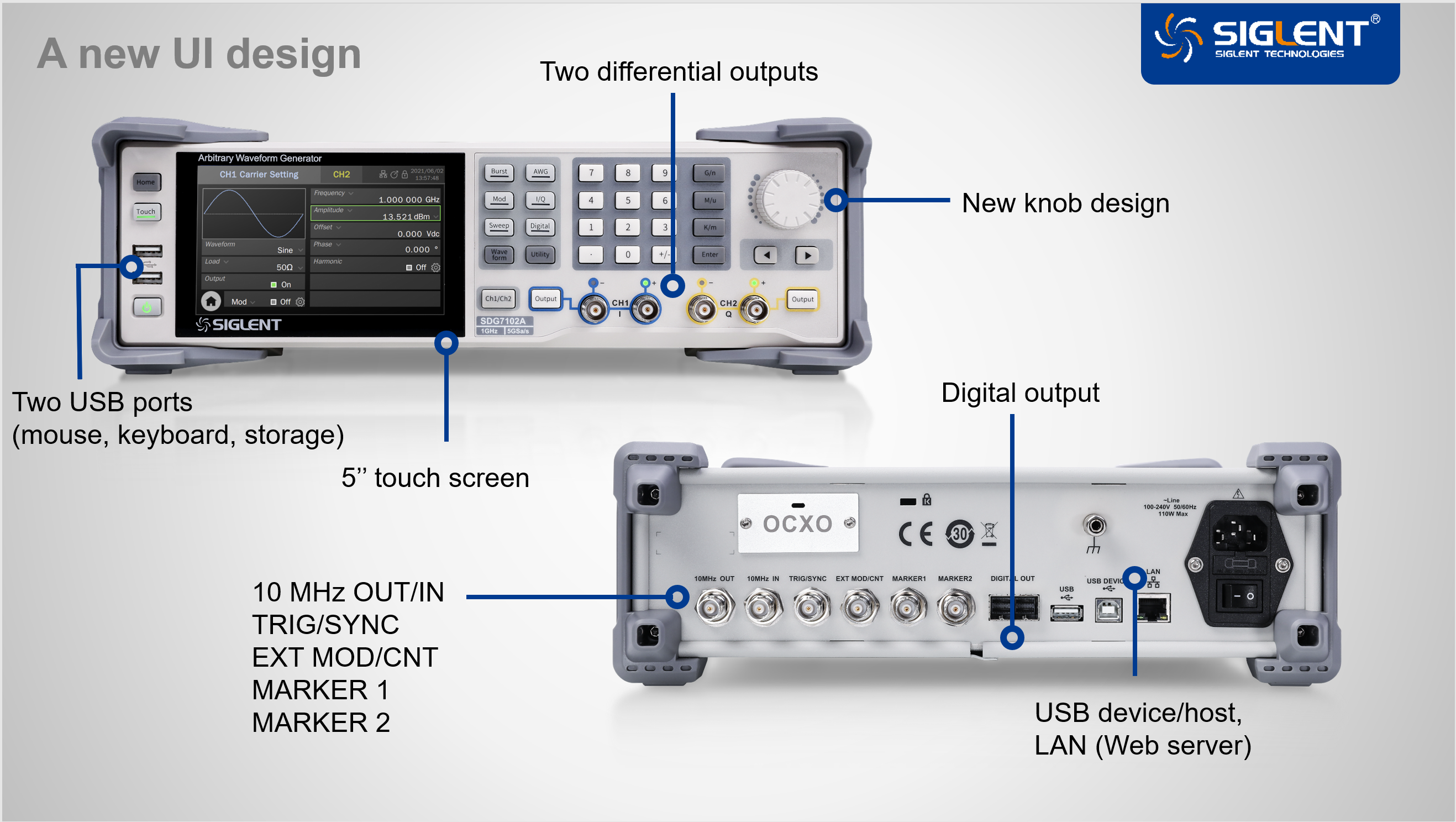

1GHz; 2 differential/single ended output channels; 5 GSa/s sampling rate; 14-bit vertical resolution; Arb-Waveform length: 64 pts ~ 512 Mpts; 5 inch touch screen

$26,620.00
Quantity
In-stock, same-day dispatch

Description

All the Siglent products are eligble for education discount. Please send your inquiry to admin@appvision.com.au to get the discounted quotation if you are from Unviersities, TAFEs, CSIRO, high schools or other education organisations
Option Name Description
10M_OCXO_L High accuracy clock source ( Assembled in factory only) please send your inquiry to admin@appvision.com.au to get the quotation
DIG-LVTTL Digital Bus Kit-LVTTL
DIG-LVDS Digital Bus Kit-LVDS (Without RF cables)
DIG-LVDS-2 Digital Bus Kit-LVDS (With 32 RF cables)
SDG-7000A-IQ IQ Signal Generator Function (software)
SDG-7000A-BW05 350 MHz to 500 MHz bandwidth upgrade (software）
SDG-7000A-BW10 500 MHz to 1 GHz bandwidth upgrade (software）
Product Details
SDG7102A
