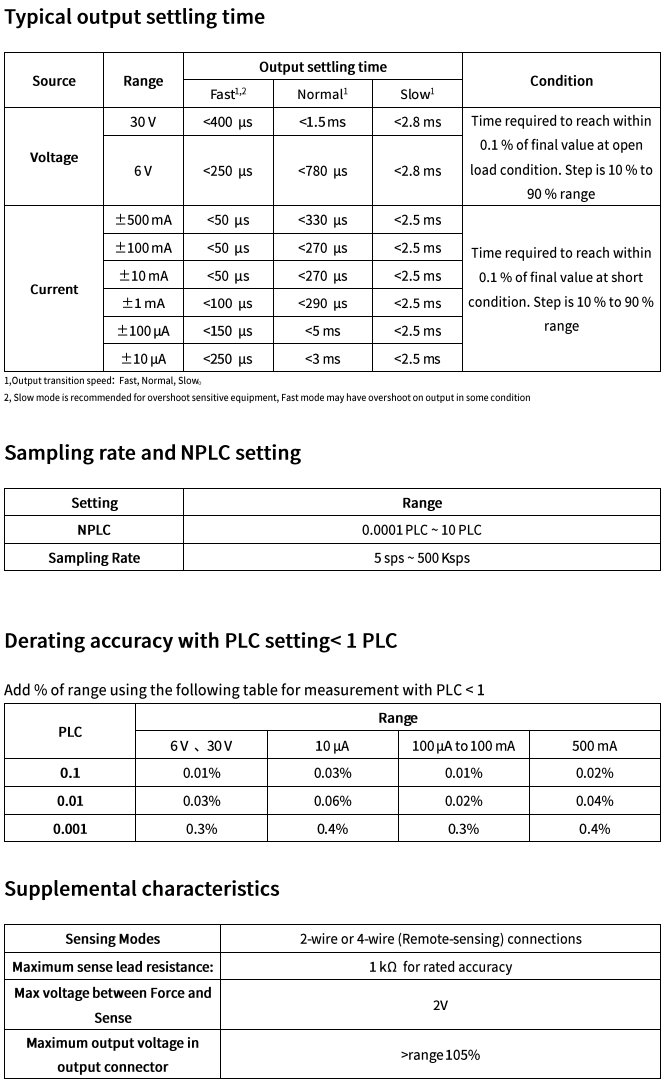

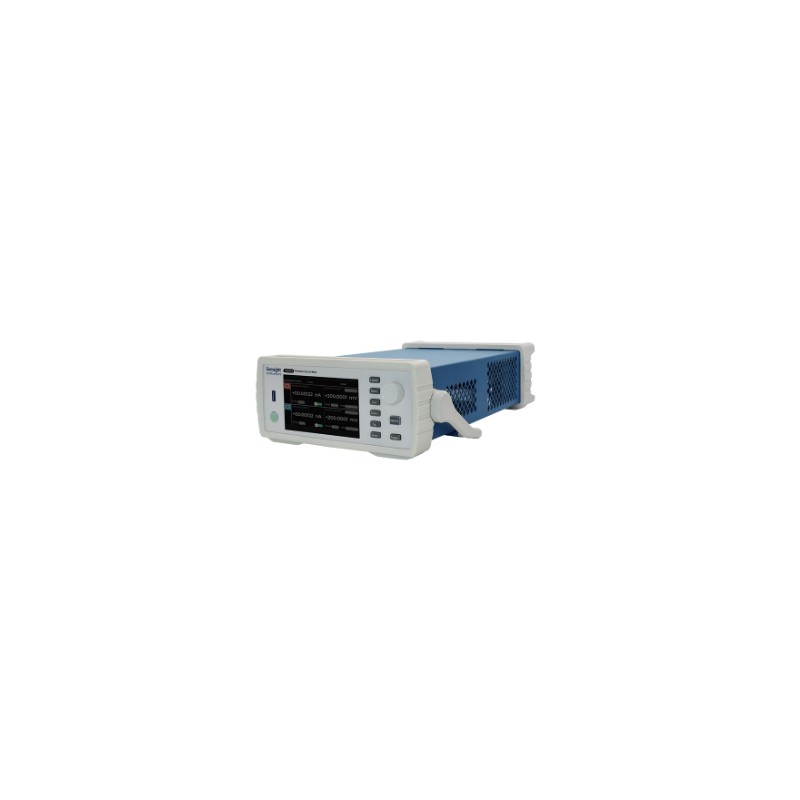

The S2021H provides best-in-class performance for a modest price. lt can provide maximum ±30V,+500mA (DC/pulse) output and possess a superior color LCD graphical user interface (GUl). TheS2021H offers unmatched measurement throughput and supports conventional SMU SCPl commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test.
Reference: Semight SMU S2026H
Brand: Semight Instruments
Range: ± 200 V, ± 1 A (DC), ± 3A (pulse) The minimum measurement resolution can reach 10 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2025H
Brand: Semight Instruments
Range: ± 200 V, ± 1 A (DC), ± 3A (pulse) The minimum measurement resolution can reach 10 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2028H
Brand: Semight Instruments
±60 V、±3 A(DC)、±10A (pulse) The minimum measurement resolution can reach 100 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2024H
Brand: Semight Instruments
Range: ± 4.5 V, ± 10 mA (DC) The minimum measurement resolution can reach 10 pA/1 μV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2022H
Brand: Semight Instruments
Range: ± 30 V, ± 500 mA (DC) The minimum measurement resolution can reach 100 pA/100 μV Supports up to 500K ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2027H
Brand: Semight Instruments
±60 V、±3 A(DC)、±10A (pulse) The minimum measurement resolution can reach 100 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2036H
Brand: Siglent
±210 V、±3.03 A(DC)、±10.5A (Pulse) The minimum measurement resolution can reach 1 fA/100 nV Maximum acquision rate of 100,000 points/s Supports four-quadrant operation
Reference: Semight SMU S2035H
Brand: Semight Instruments
±200 V、±1 A(DC)、±3A (Pulse) The minimum measurement resolution can reach 1 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
Reference: Semight SMU S2036H
Brand: Semight Instruments
±200 V、±1 A(DC)、±3A (Pulse) The minimum measurement resolution can reach 1 fA/100 nV Supports up to 1M ADC sampling rate Hardware high-speed IO, capable of threshold triggering, enabling efficient interaction
The S2021H provides best-in-class performance for a modest price. lt can provide maximum ±30V,+500mA (DC/pulse) output and possess a superior color LCD graphical user interface (GUl). TheS2021H offers unmatched measurement throughput and supports conventional SMU SCPl commands for easy test code migration. These features improve efficiency and lower the cost of ownership when integrating the SMUs into systems for production test.
