AppVision Australia PFS Series Mobile RF Source is a low-noise, high-performance RF Signal Generator with build-in battery and optional low noise module.
Highlights:
- Up to 20GHz
- Build-in Battery for 4-6 hours
- WiFi, Bluetooth, Ethernet, USB control - CW, Pulse Output
- Low Phase Noise Option Available
- Ultra-Portable
AppVision Australia PFS Series Mobile RF Source is a low-noise, high-performance RF Signal Generator with a build-in battery and optional low noise module.
Highlights:
*This is a Standard Module. For Low-Noise Module, please refer AppVision PFS Series Portable Signal Source with Low Noice.
PFS Series Mobile RF Source can be controlled via WiFi, Ethernet, USB, Bluetooth from your PC or Smart Phone.

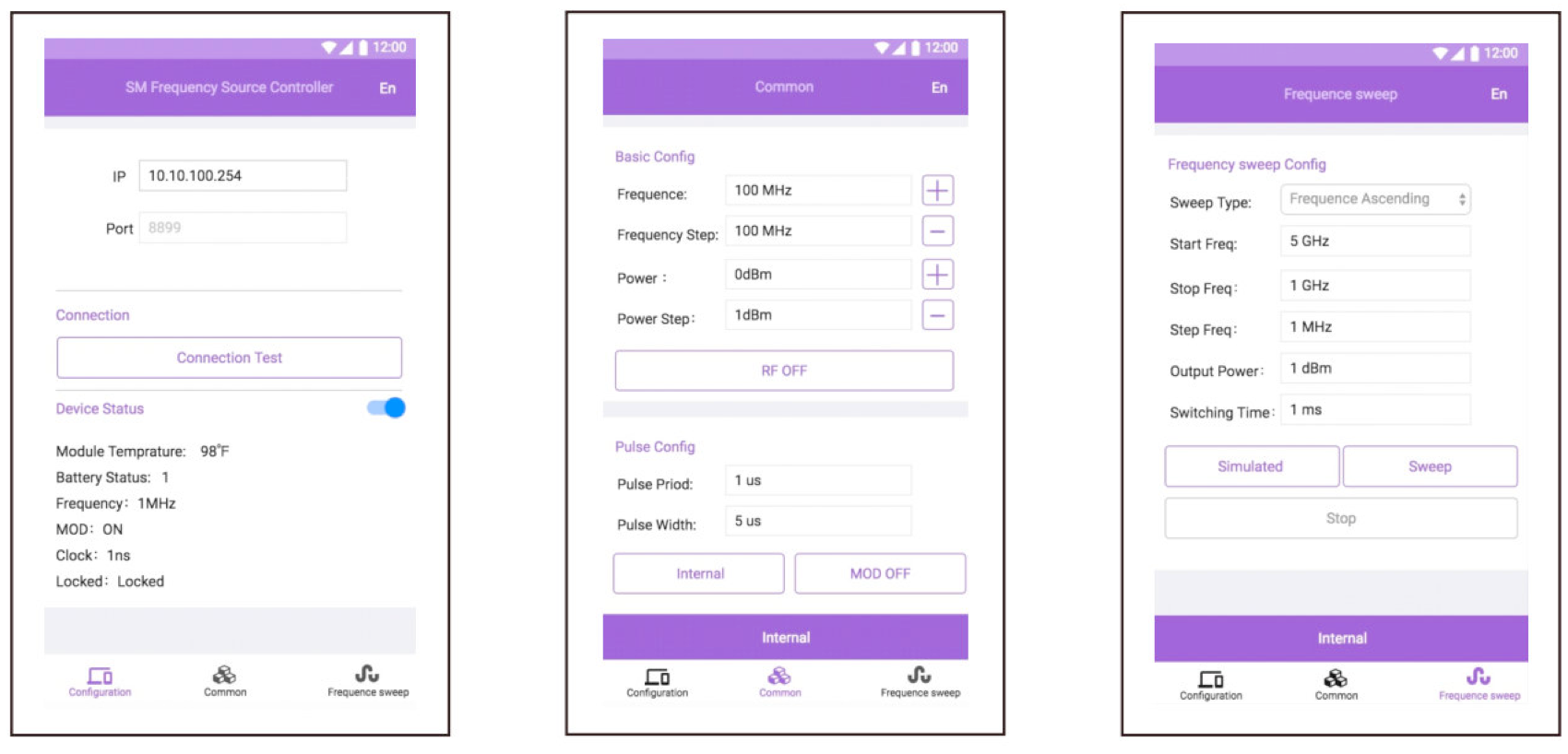

Mobile App Screenshots:

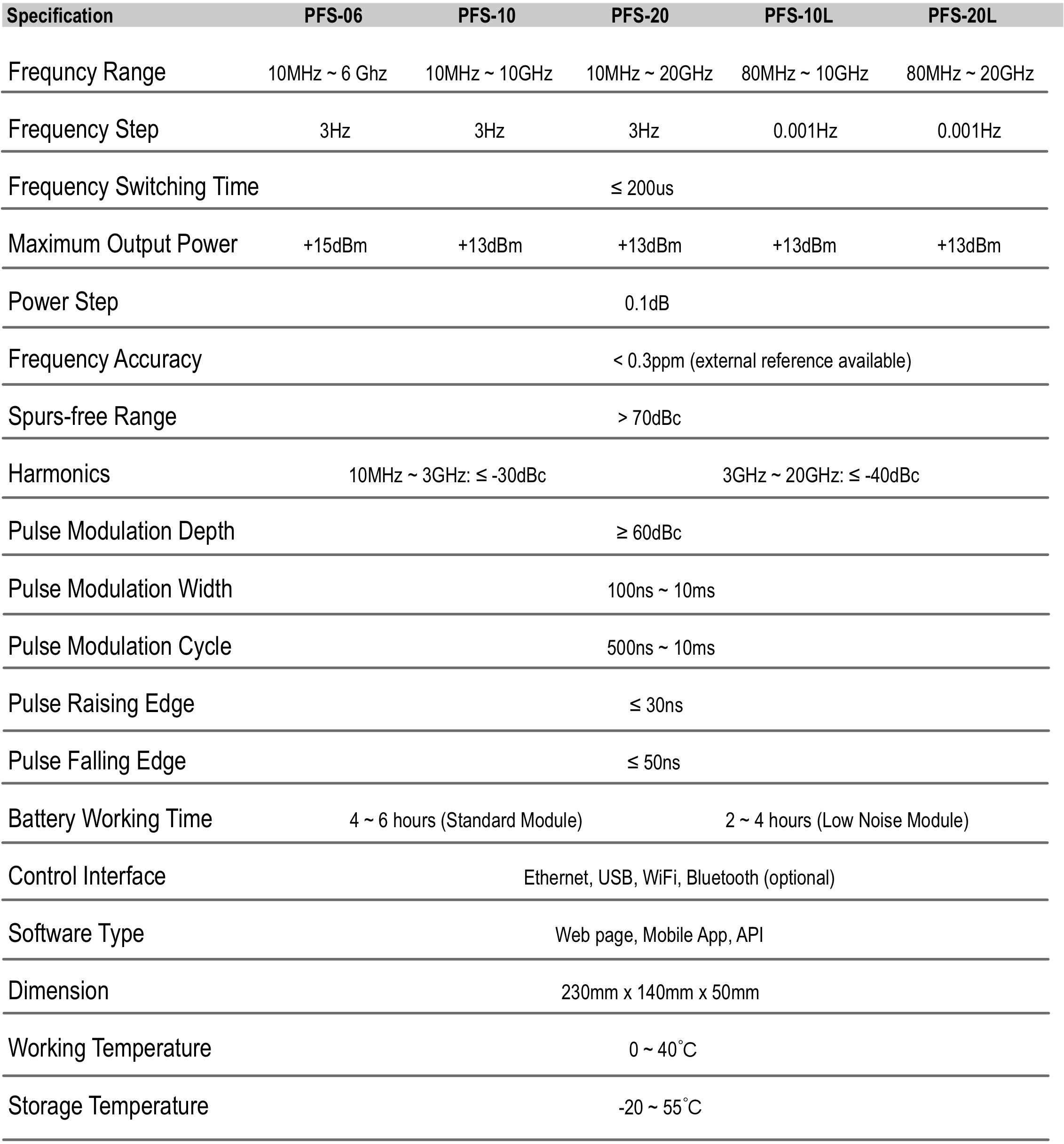

Specifications refer to the performance standards or limits against which the PFS Series Portable RF Signal Source is tested.
Typical characteristics are included for additional information only, and they are not specifications. These are denoted as “typical,” “nominal,” or “approximate” and are printed in italic.
Specifications subject to change.
Reference: PDRO13.5GOCXO
Brand: AppVision
13.5G 15dBm output with built-in OCXO reference
Reference: PDRO13.5G
Brand: AppVision
13.5G 15dBm output
Reference: APV-PTFS-40
Brand: AppVision
• Maximum output frequency up to 40 GHz • Compact size for easy field portability • 50 dB dynamic output power range • Continuous wave and pulse output modes • Optional low phase noise • Supports control via Ethernet, serial port, and touchscreen
Reference: SSG6085A
Brand: Siglent
SSG6000A meet the stringent requirements of microwave and millimeter wave testing with reliable performance and provide another choice in size, speed and cost, especially suitable for applications that pursue program efficiency but have limited testing budget and space
Reference: SSG6083A
Brand: Siglent
SSG6000A meet the stringent requirements of microwave and millimeter wave testing with reliable performance and provide another choice in size, speed and cost, especially suitable for applications that pursue program efficiency but have limited testing budget and space
Features: • Frequency range:2-18GHz • 5 RF output channels which can operate individually • Phase coherent among every channel • Channel to channel Relative Phase drift (10GHz, 24h) ≤±1° • Low phase noise, high output power • Narrow pulse modulation • Fast frequency switching time
Reference: SSG5085A
Brand: Siglent
Frequency range: 9 kHz - 20 GHz 0.001 Hz frequency setting resolution Level setting range: -130 dBm ~ 25 dBm (with option SSG5080A-LP) Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.) Includes OCXO reference hardware module for high-precision and high stability signal output AM, FM, PM analog modulation with internal, external or Int+Ext source...
Reference: APV-PFS-40
Brand: AppVision
• Maximum output frequency up to 40 GHz • Compact size for easy field portability • 50 dB dynamic output power range • Continuous wave and pulse output modes • Optional low phase noise • Supports control via Ethernet, serial port, and touchscreen
Reference: SSG5083A
Brand: Siglent
Frequency range: 9 kHz - 13.6 GHz (upgradable to 20 GHz with option SSG5080A-F85) 0.001 Hz frequency setting resolution Level setting range: -130 dBm ~ 25 dBm (with option SSG5080A-LP) Phase Noise: -120 dBc / Hz @ 1 GHz, 20 kHz offset (typ.) Includes OCXO reference hardware module for high-precision and high stability signal output AM, FM, PM analog...
Reference: APV-PTFS-S
Brand: AppVision
AppVision Australia PTFS Series Mobile RF Source is a low-noise, high-performance RF Signal Generator with touch screen and optional low noise module. Highlights: - Up to 20GHz - WiFi, Bluetooth, Ethernet, USB control - CW, Pulse Output - Low Phase Noise Option Available - Ultra-Portable - Touch Screen
AppVision Australia PFS Series Mobile RF Source is a low-noise, high-performance RF Signal Generator with build-in battery and optional low noise module.
Highlights:
- Up to 20GHz
- Build-in Battery for 4-6 hours
- WiFi, Bluetooth, Ethernet, USB control - CW, Pulse Output
- Low Phase Noise Option Available
- Ultra-Portable
