Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

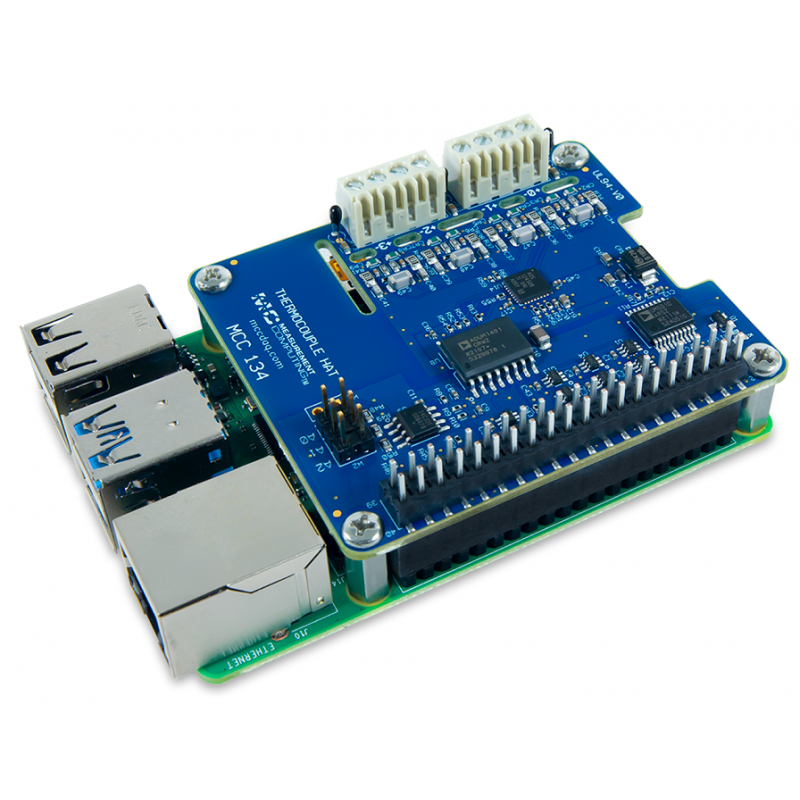

The MCC 134 Thermocouple Measurement DAQ HAT features four thermocouple inputs for adding temperature measurement capability to Raspberry Pi-based data acquisition systems. It features 24-bit resolution and provides professional-grade accuracy which is best in class. The MCC 134 also offers open thermocouple detection so users can monitor for broken or disconnected thermocouples and each channel type is selectable on a per-channel basis. Up to eight MCC HATs can be stacked onto one Raspberry Pi.
All DAQ HATs include C/C++® and Python™ examples and open-source library. Comprehensive API and hardware documentation are also provided.
There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.
Raspberry Pi is not included with the MCC 134.
Reference: MCC USB-2001-TC
Brand: Digilent
Key Features One thermocouple input 20-bit resolution 4 S/s sample rate Integrated cold junction compensation (CJC) sensor Open-thermocouple detection (OTD) feature Supports J, K, R, S, T, N, E, and B type thermocouples Accepts standard mini-plug Small form-factor Bus powered
Reference: MCC USB-TEMP and TC Series
Brand: Digilent
Key Features Eight DIFF analog inputs 24-bit resolution USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B) USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5...
Reference: MCC USB-TEMP and TC Series
Brand: Digilent
Key Features Eight DIFF analog inputs 24-bit resolution USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B) USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5...
Reference: MCC USB-TEMP and TC Series
Brand: Digilent
Key Features Eight DIFF analog inputs 24-bit resolution USB-TC: Eight thermocouple inputs (types J, K, R, S, T, N, E, and B) USB-TEMP: Eight temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5...
Reference: MCC TC-32
Brand: Digilent
Key Features TC-32: 32 thermocouple inputs and 40 digital I/O TC-32 and TC-32-EXP: 64 thermocouple inputs and 80 digital I/O 24-bit resolution 3 S/s/ch sample rate Supports thermocouple types J, K, R, S, T, N, E, and B 40 digital I/O (80 digital I/O when using TC-32-EXP) USB and Ethernet interfaces
Reference: MCC USB-2416-4AO
Brand: Digilent
Key Features USB-2416-4AO: 32 SE/ 16 DIFF analog inputs USB-2416-4AO and AI-EXP32: 64 SE/ 32 DIFF analog inputs 24-bit resolution 1 kS/s sample rate Supports thermocouple types J, K, R, S, T, N, E, and B ±20 V, ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±625 mV, ±312.5 mV, ±156.25 mV, ±78.125 mV input ranges Four 16-bit analog outputs Eight digital I/O (24 digital I/O...
Reference: MCC USB-2408-2AO
Brand: Digilent
Key Features 16 single-ended (SE) or eight differential (DIFF) analog input channels Up to eight analog inputs can be configured for thermocouples measurements 24-bit resolution 1 kS/s sample rate Two 16-bit analog output channels Eight digital I/O channels Two counter channels (32-bit) that count TTL pulses 500 VDC input isolation between field wiring...
Reference: MCC MEASURpoint
Brand: Digilent
Key Features Analog input Channels: Up to 48 Resolution: 24-bit Max sample rate: 10 S/s/ch Sampling: Simultaneous Ranges: ±10 V, ±60 VDC (±30 VAC) Isolation: ±60 V ch-ch (functional); ±500 V ch-ch (peak withstand) Sensors: Thermocouple RTD Voltage Digital I/O: 16 channels
