HIKMicro Thermal Camera - B20 - 256*192 pixels, 25Hz -20~550℃
  • HIKMicro Thermal Camera - B20 - 256*192 pixels, 25Hz -20~550℃

HIKMicro Thermal Camera - B20 - 256*192 pixels, 25Hz -20~550℃

B20
HIKMICRO

256*192 pixels, Pixel pitch 17 μm,  NETD<40mk, 25Hz, 3mm lens,Thermographic accuracy (Measurement range):  ±2℃/±2% (-20~550℃), Operation temperature:-10~50 °C, 2MP optical camera

$999.00
Quantity
In-stock, same-day dispatch

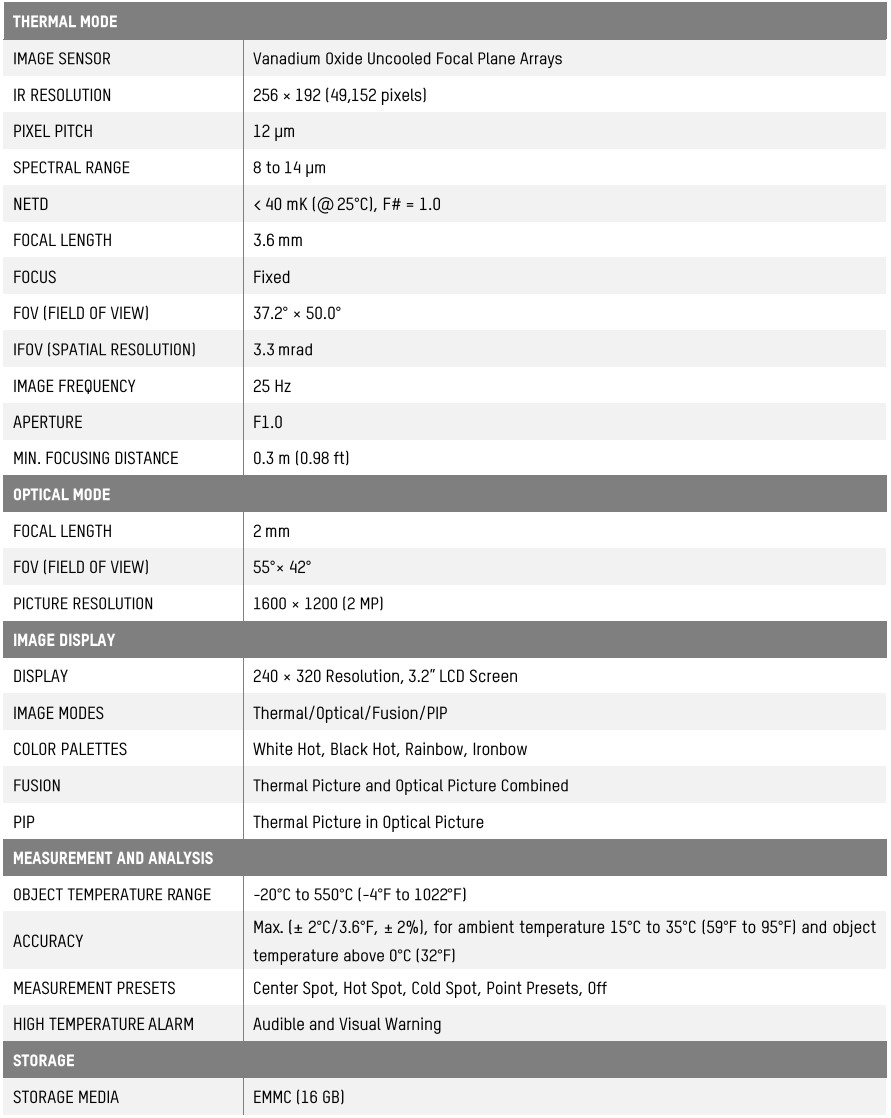

Description

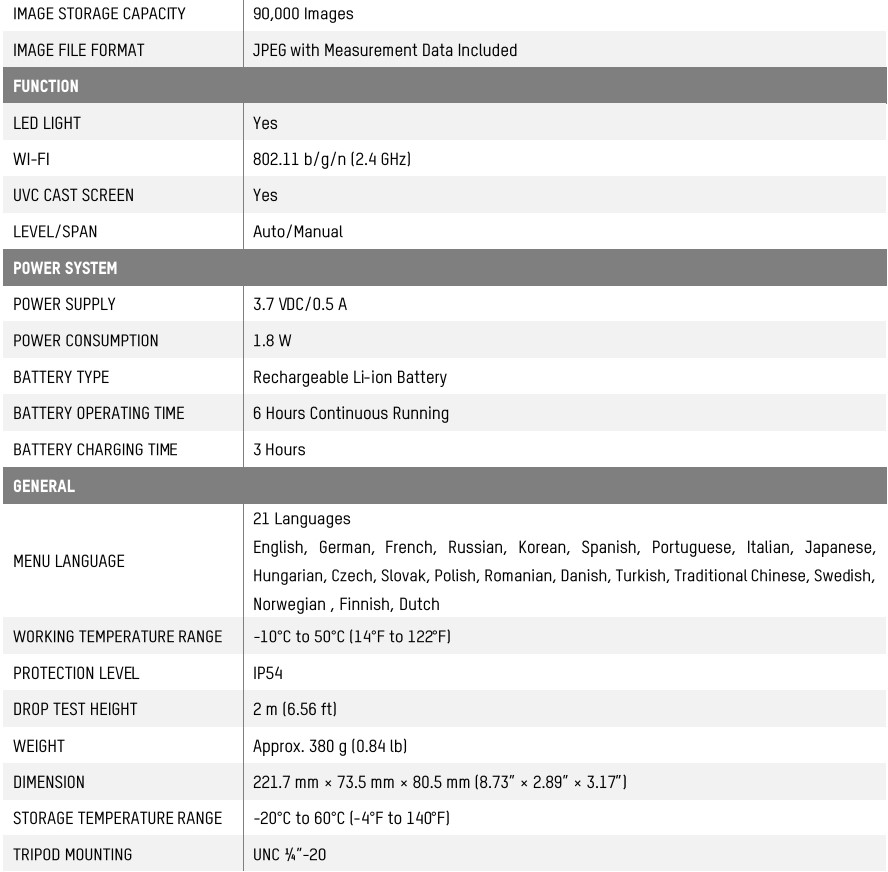

B20 Spec2.jpg

Connect to Android/ISO App

Connect to Windows Computer, not supporting MAC PC

Product Details
B20
