V-LD1-EVAL Evaluation Kit

• Easy evaluation of the digital radar sensor V-LD1
• Detachable plastic lens included
• Powerful control panel GUI included
• Real-time streaming and visualisation of all sensor data
• Data recording and playback including video support using a webcam
• Simple firmware update
• Saves time to market and reduces NRE costs

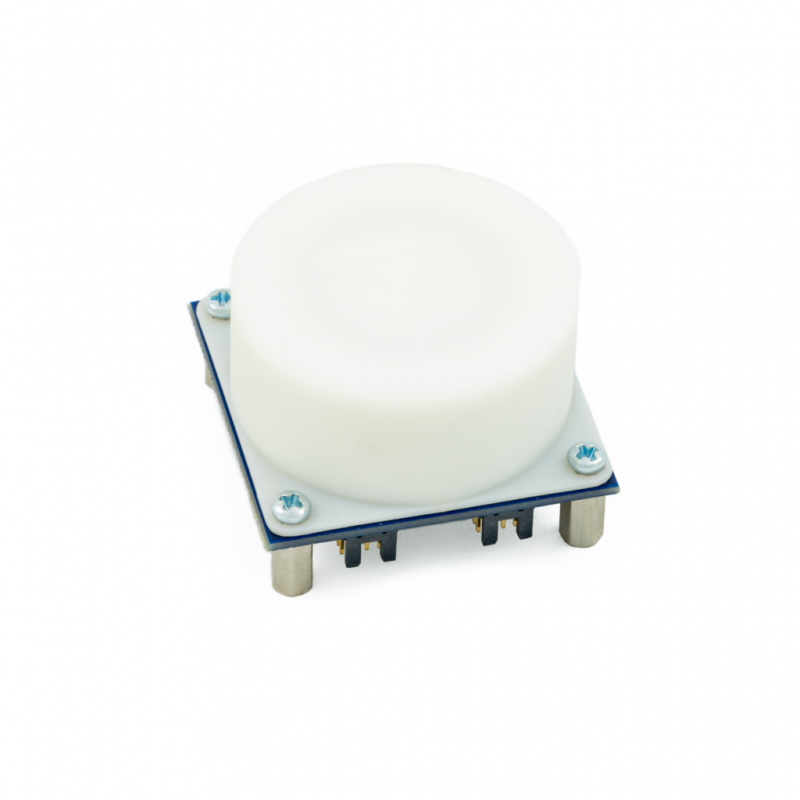

The V-LD1 evaluation kit is a powerful tool to evaluate the use of the V-LD1 for your application idea. The kit consists of a PCB with a mounted V-LD1 sensor in the centre. A detachable plastic lens is mounted on top of the sensor for focussing the radar beam to app. 8° to 8° for longer detection distances which is ideal for tank level gauging applications. Further it features an easy connection to a PC over a simple USB connection without the need of an external power supply.

With the supplied powerful Control Panel software, the development time is reduced drastically. All the sensor parameters can be modified using the Control Panel. The influence of changed parameters can be directly checked in the real-time views of the software. The control panel features a lot of different views to analyse the measured data in detail. Furthermore it is possible to record all measured data and replay it directly in the software to analyse different application scenarios offline without the sensor.
