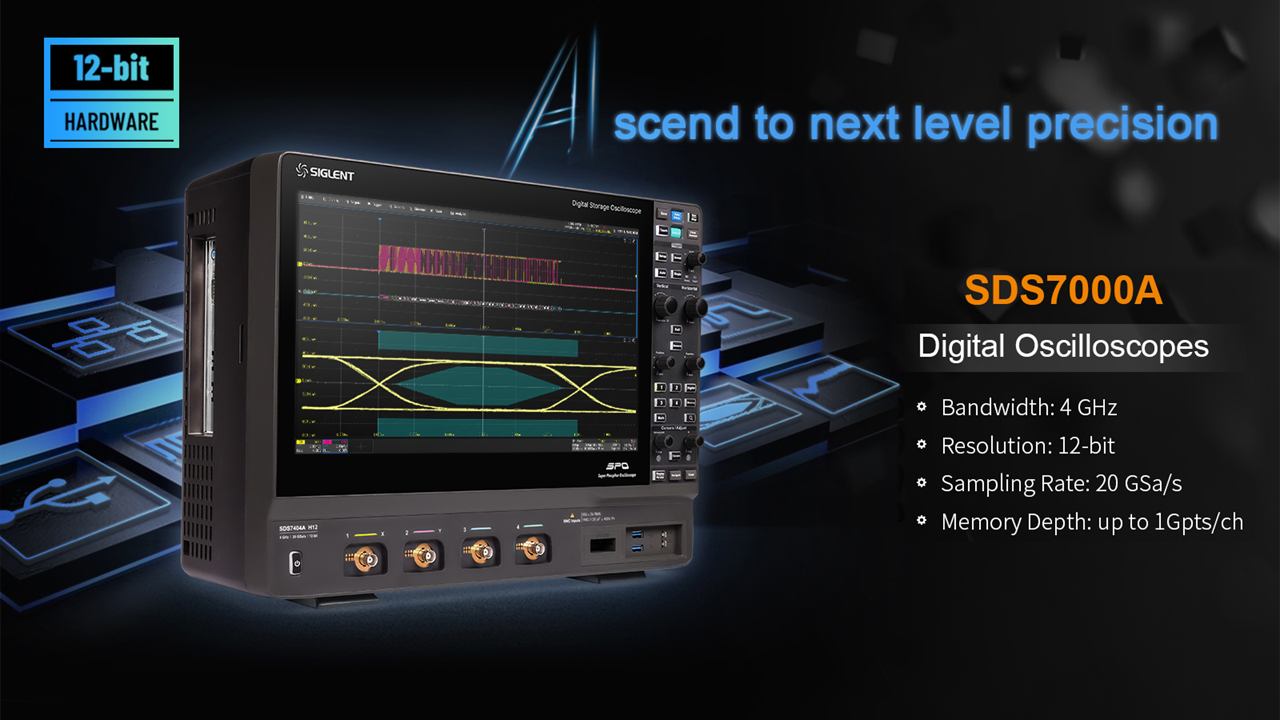

Siglent 4 channel 4GHz 12-bit 20 GSa/s Oscilloscope SDS7404A H12

3-year local warranty by the authorised distributor AppVision Australia

education discount available for the research and university institutes

The SDS7000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/ s, 256 level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis Eye /Jitter Analysis and Compliance Test allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS7000A The large 15 6 HD display capacitive touch screen supports multi touch gestures, with the addition of user friendly UI design, can greatly improve the operation al efficiency. It also supports mouse control, and remote web control over LAN.

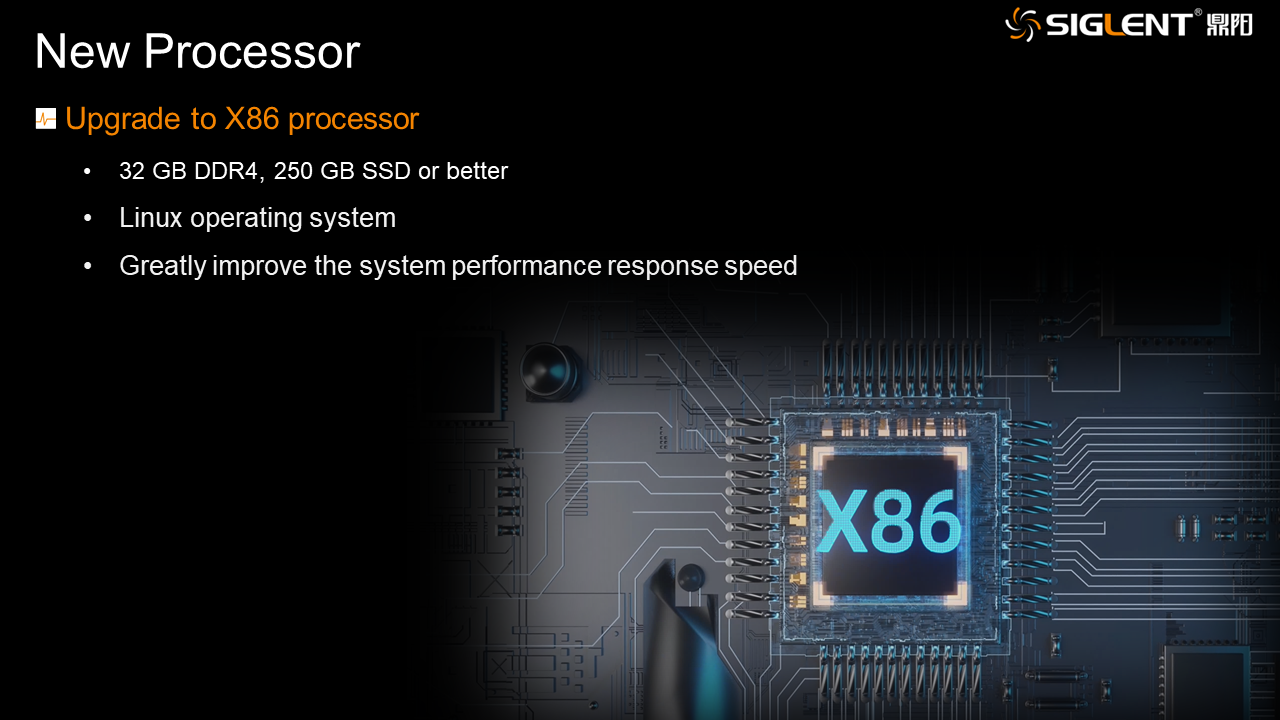

Siglent SDS7404A H12 Key Features

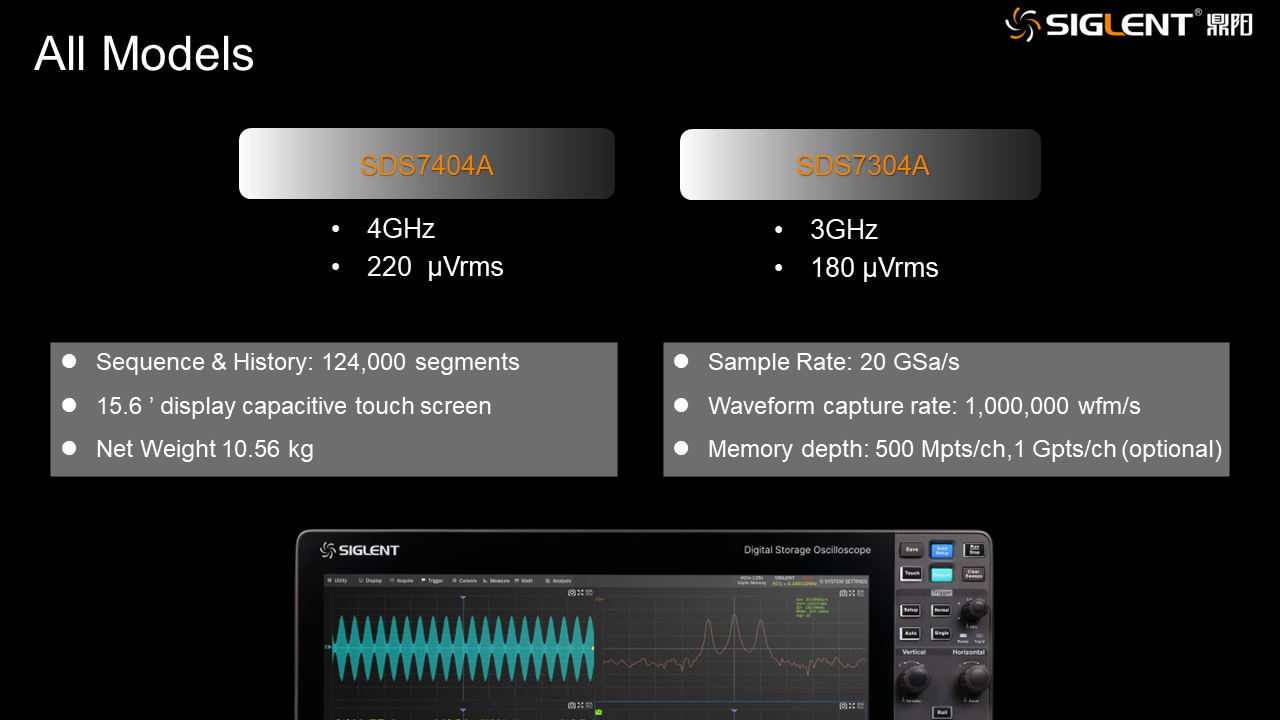

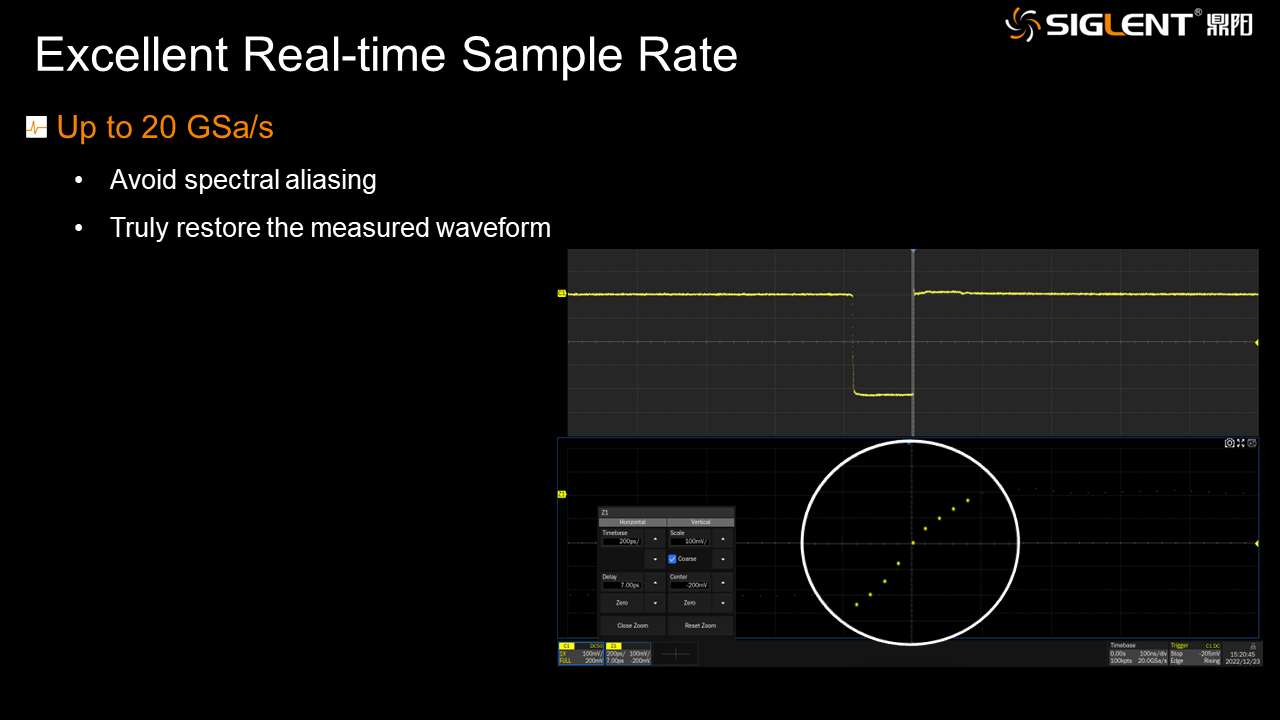

• 4 analog channels, up to 4 GHz bandwidth with up to 20 GSa/s sample rate.
• 12 bit ADC
• Low background noise : 220 μVrms @ 4 GHz bandwidth.
• SPO technology:
  - Waveform capture rates up to 1,00 0,000 wfm/s

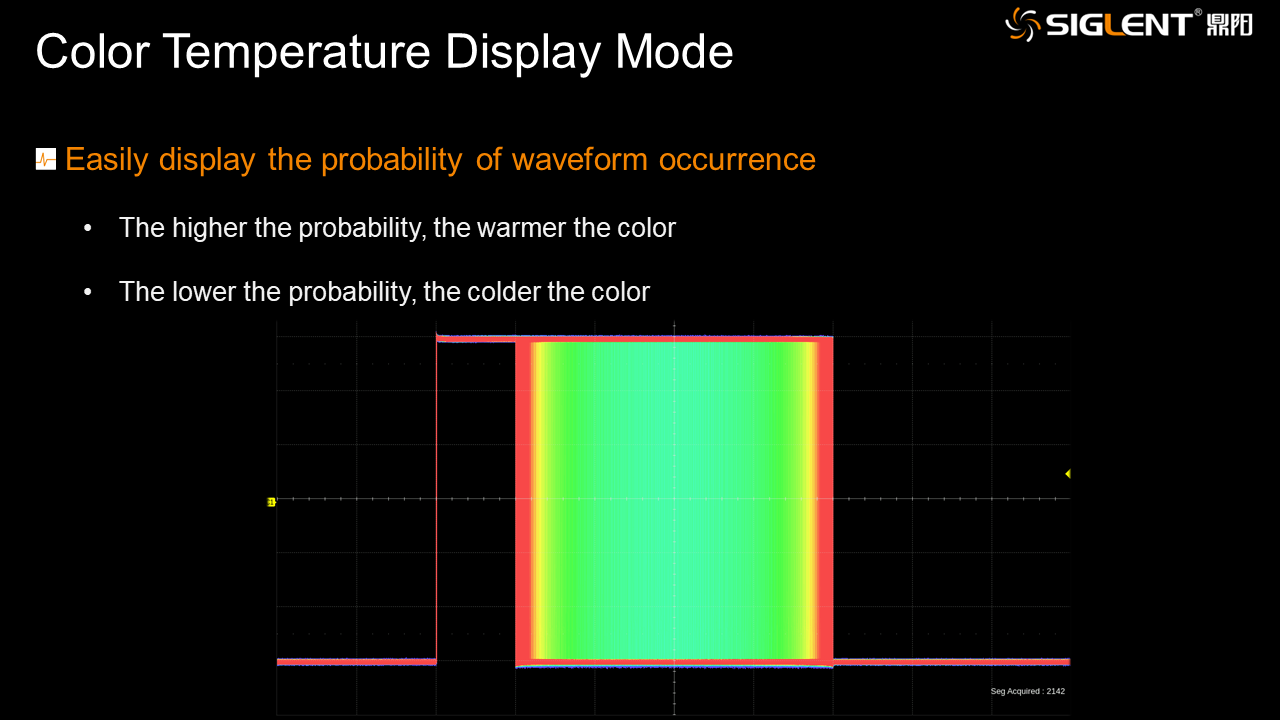

  - Supports 256 level intensity grading and color temperature       display modes.

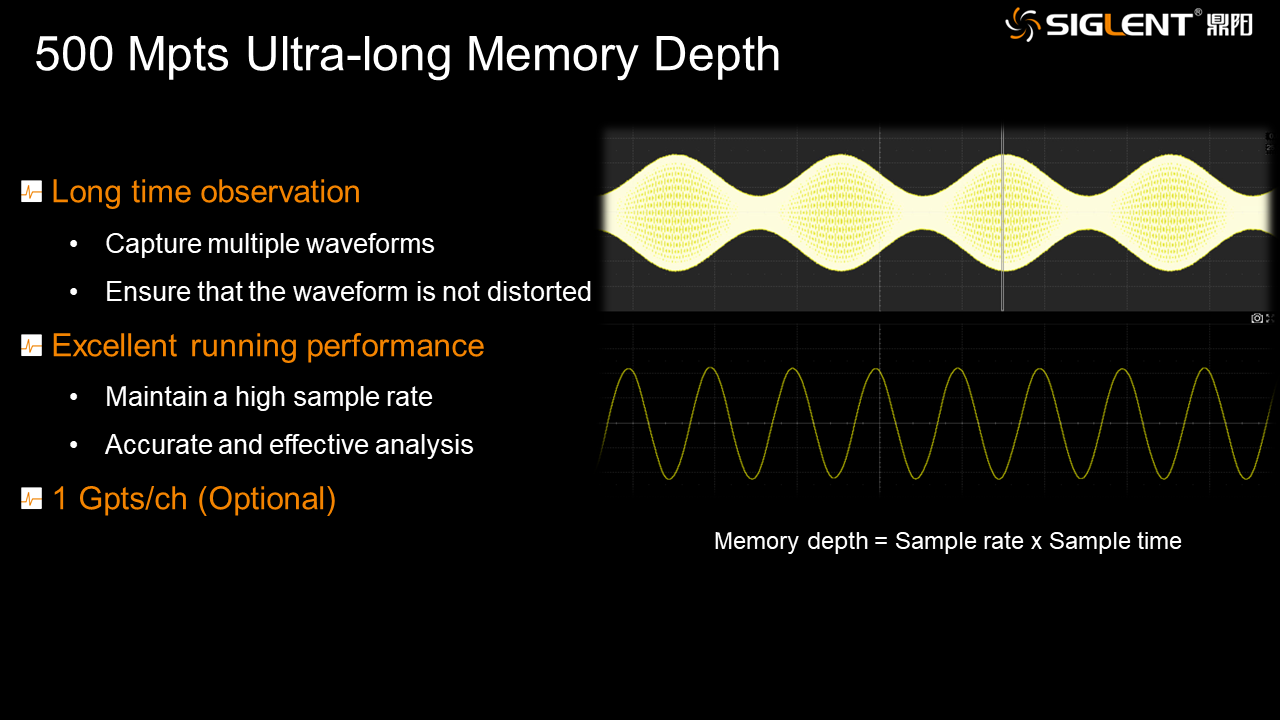

  - 500 Mpts/ch standard, 1 G pts /ch optional
  - Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt,
  Interval, Dropout, Pattern, Qualified, Nth edge,

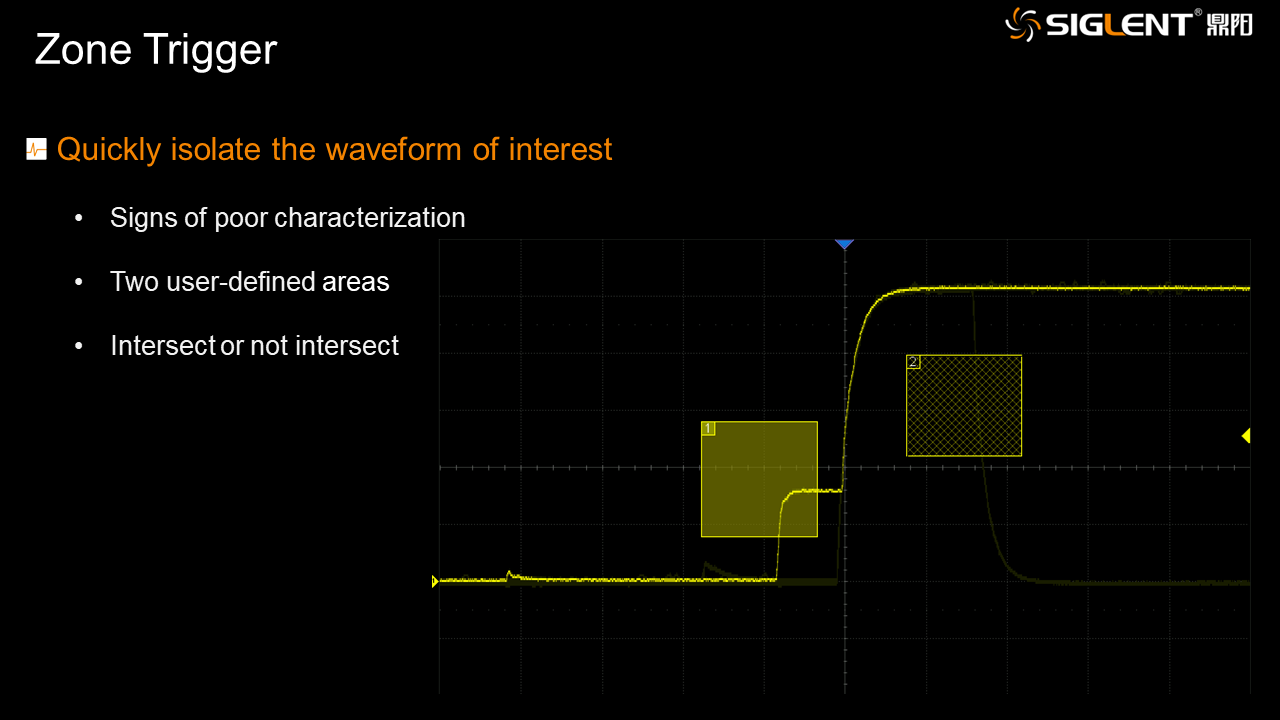

  Setup/hold, Delay and Video (HDTV supported). Zone
  Trigger simplif ies advanced triggering.

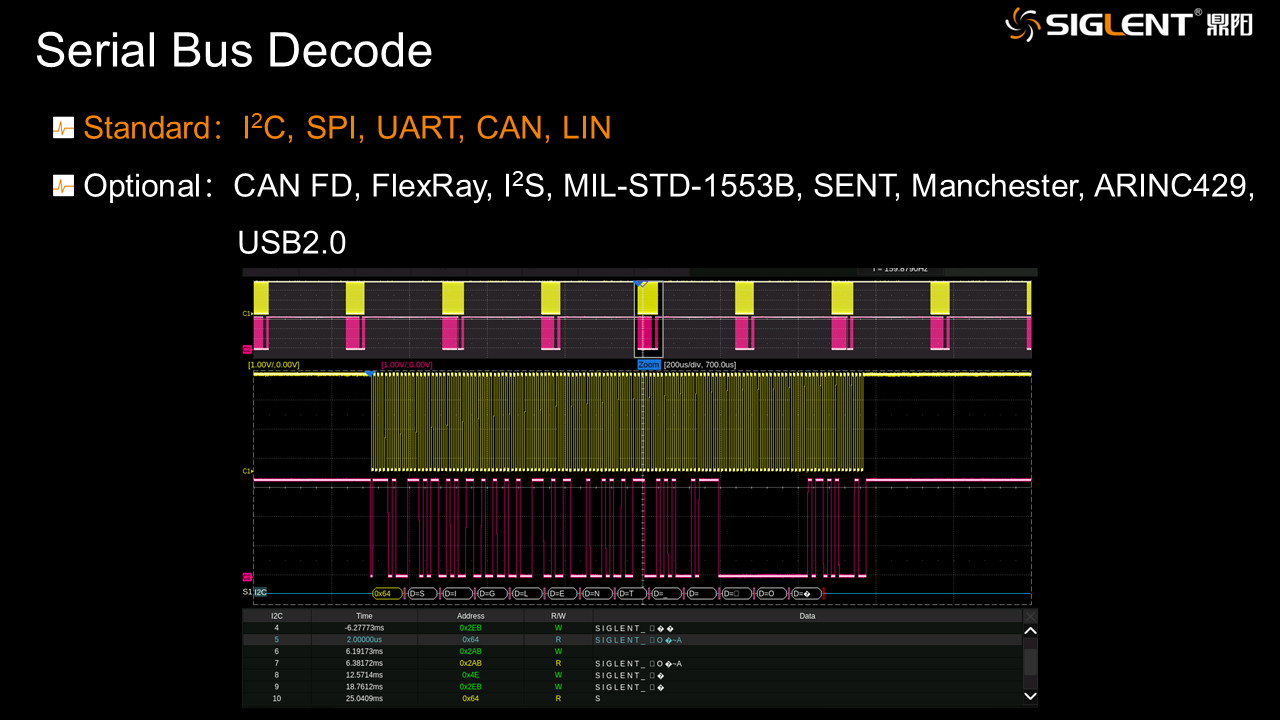

• Serial bus triggering and decoder, supports protocols I 2 C,
  SPI, UART, CAN, LIN, CAN FD, FlexRay, I 2 S, MIL STD
  1553B, SENT , Manchester , ARINC429 and USB 2.0

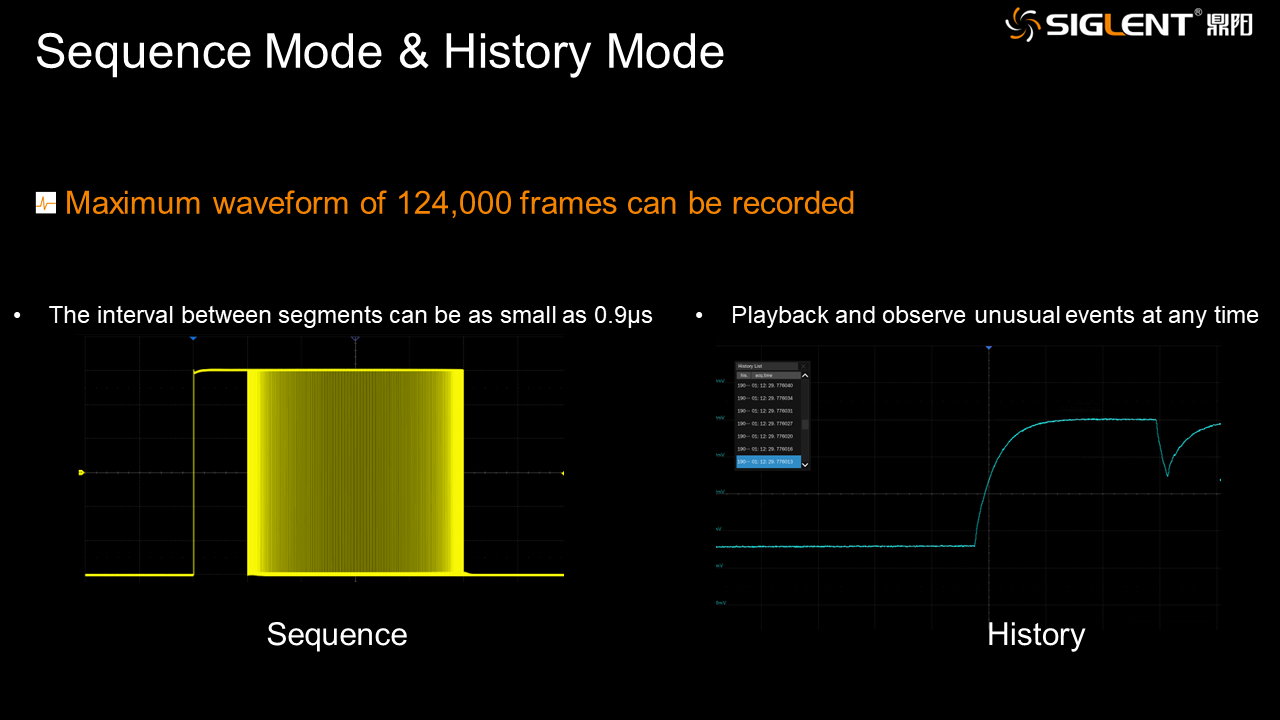

• Segmented acquisition (Sequence) mode, dividing the
  maximum record length into multiple segments (up to
  124 ,000), according to trigger conditions set by the user,
  with a very small dead time between segments to capture
  the qualifying event.
• History waveform record (History) function, the maximum
  recorded waveform length is 124 ,000 frames.

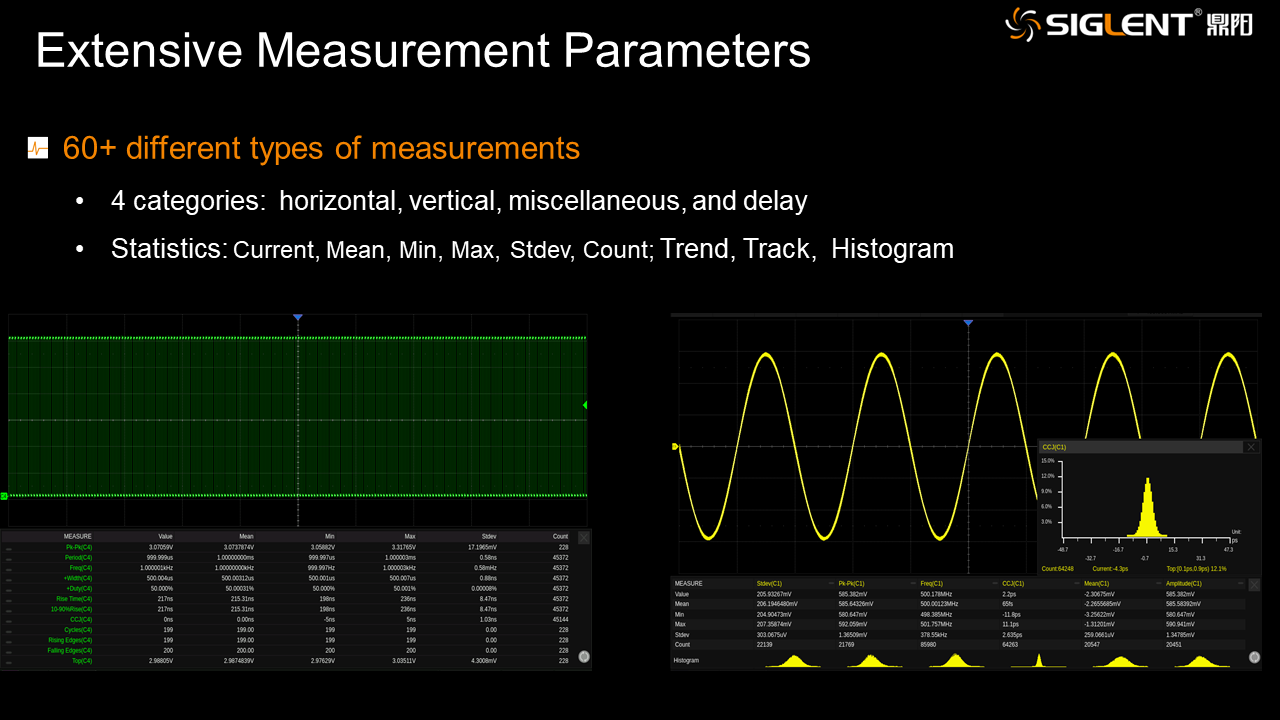

• Automatic measurement s on 50+ parameters, supports
  statistics with histogram, track, trend, Gating
  measurement, and measurements on Math, History and
  Memory traces.

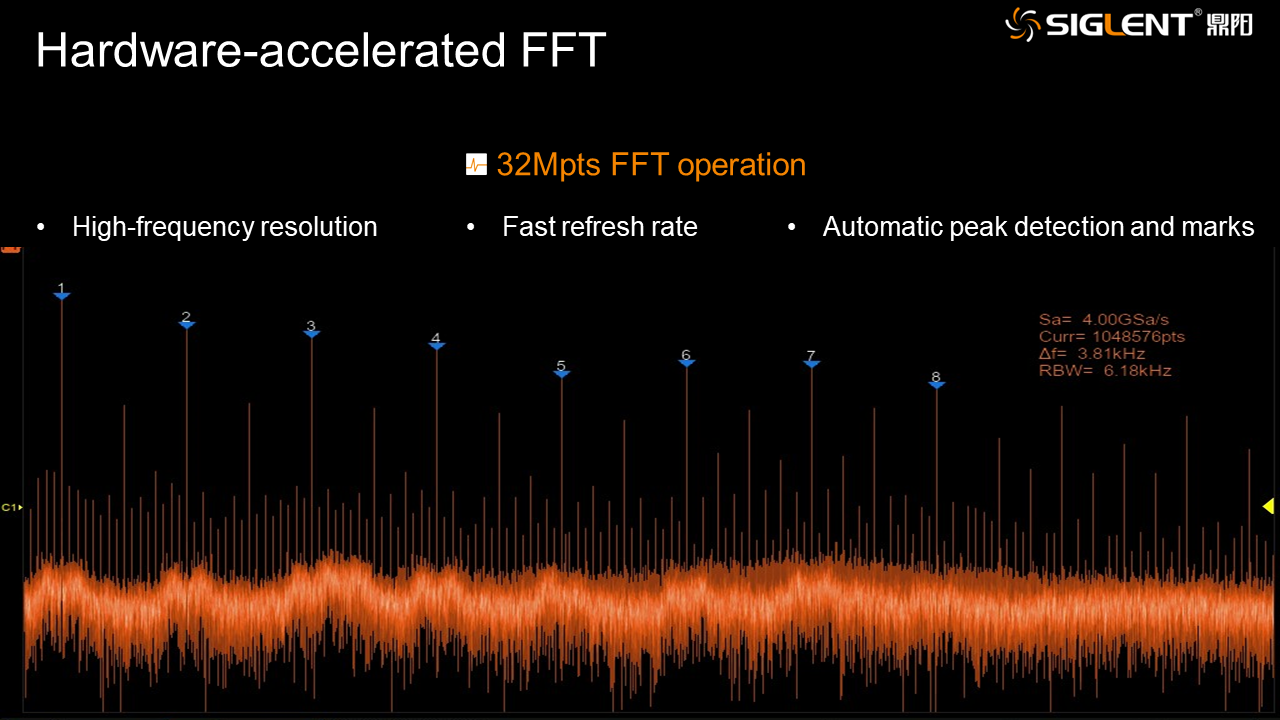

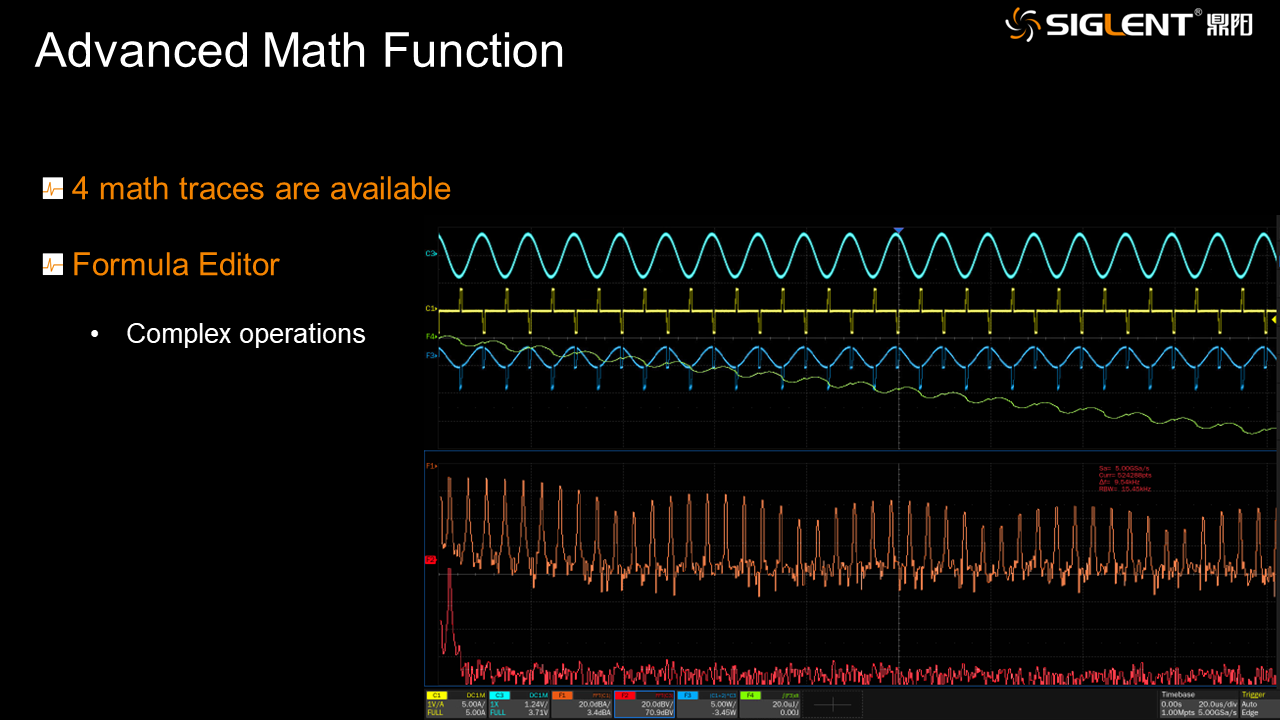

• 4 Math traces ( 32 Mpts FFT, Filter, addition, subtraction,
  multiplication, division, integration, differential, square
  root, etc.), supports formula editor.

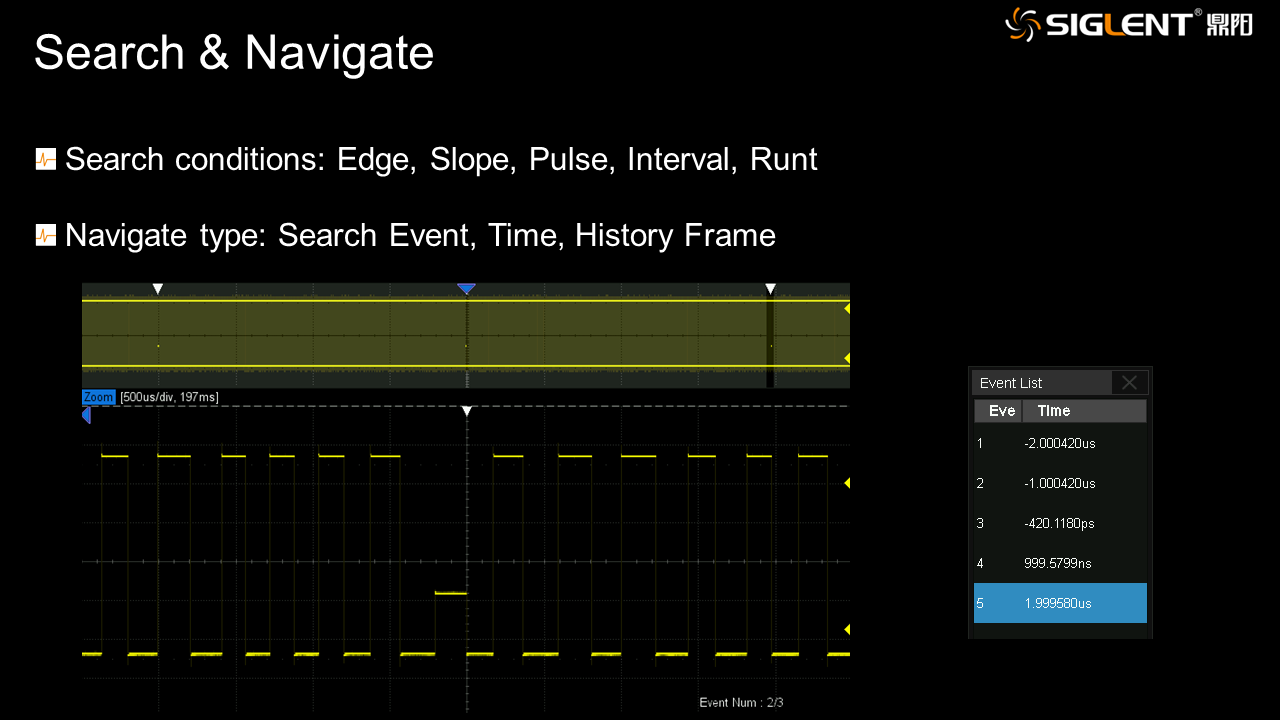

• Abundant data analysis functions such as Search,
  Navigate, SignalScan, Digital Voltmeter, Counter,

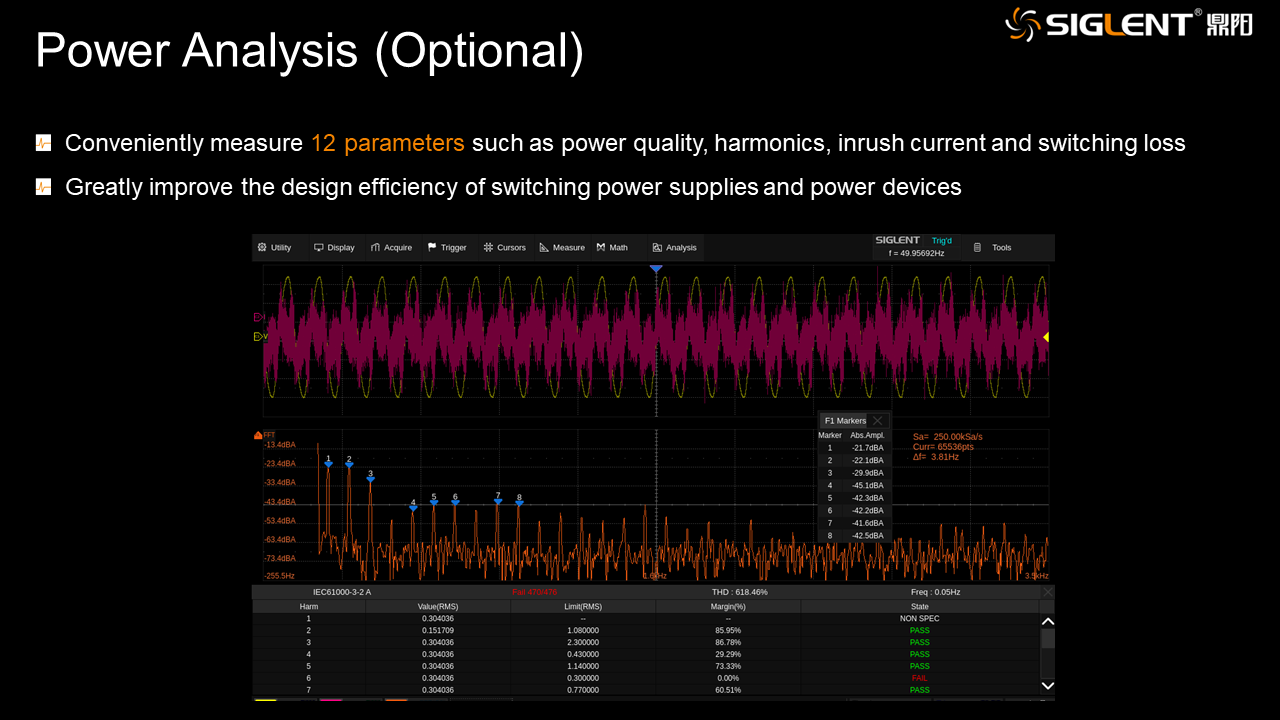

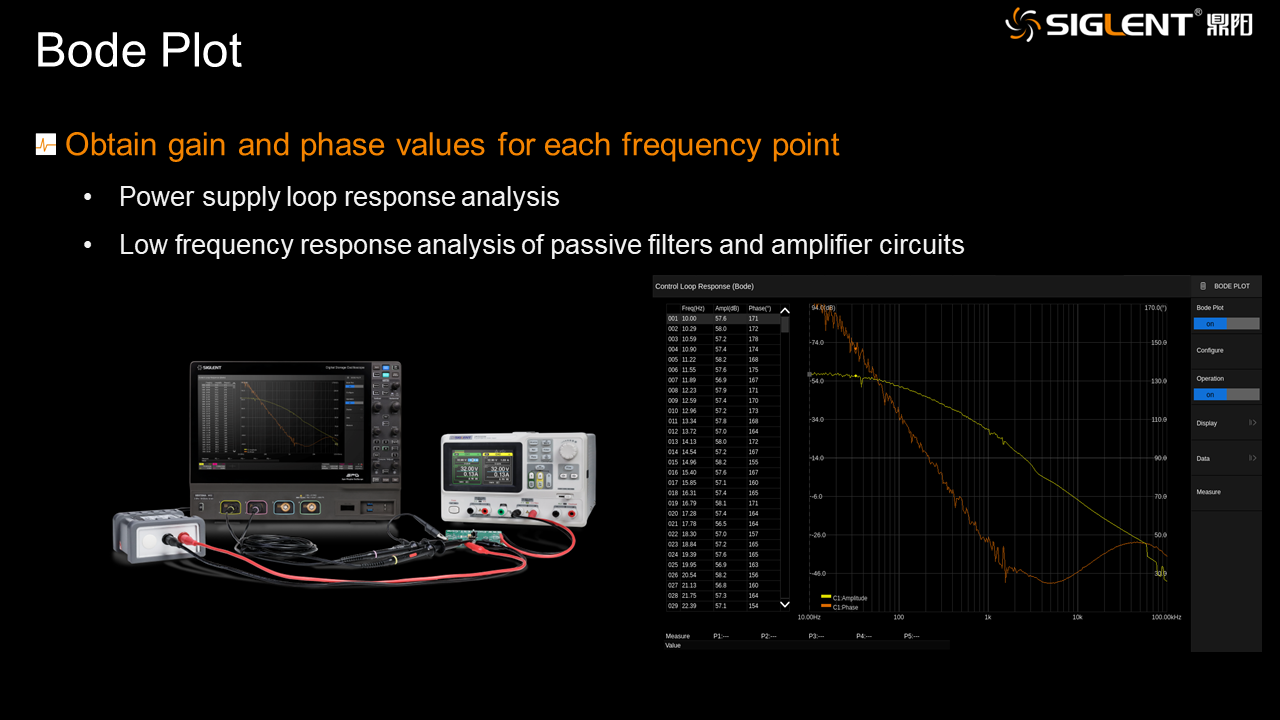

  Waveform Histogram, Bode plot, Power Analysis ,

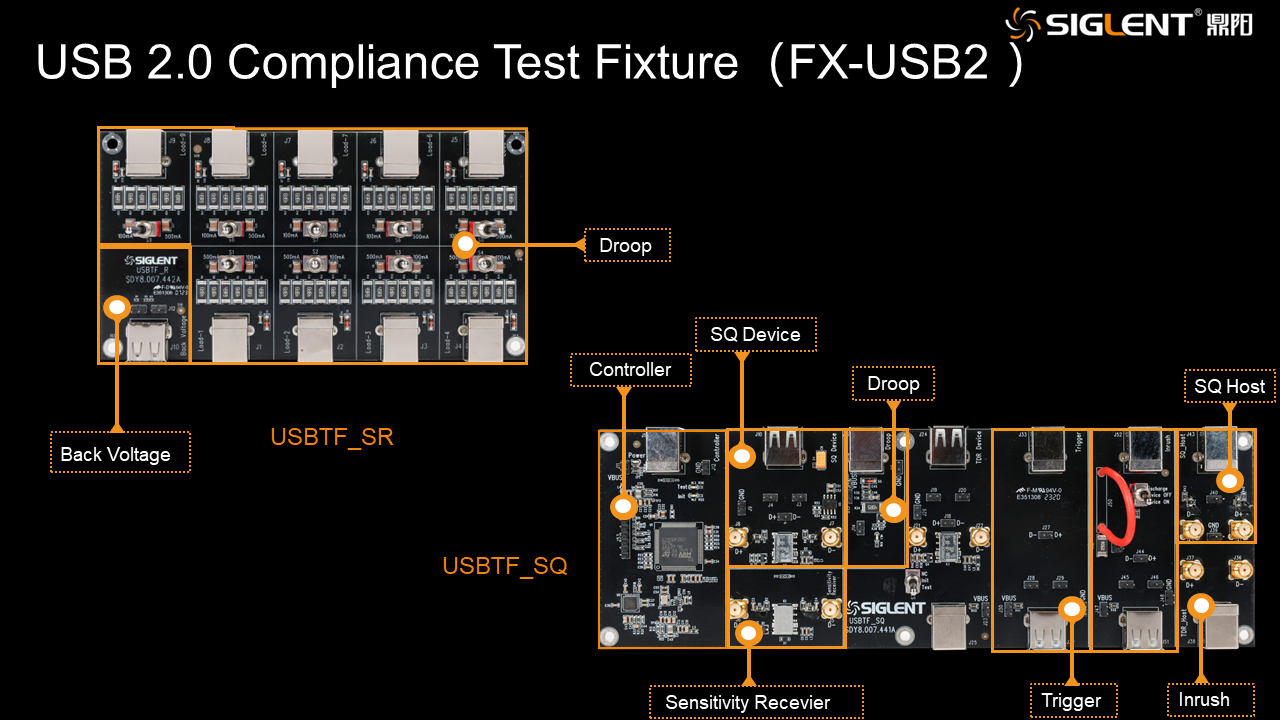

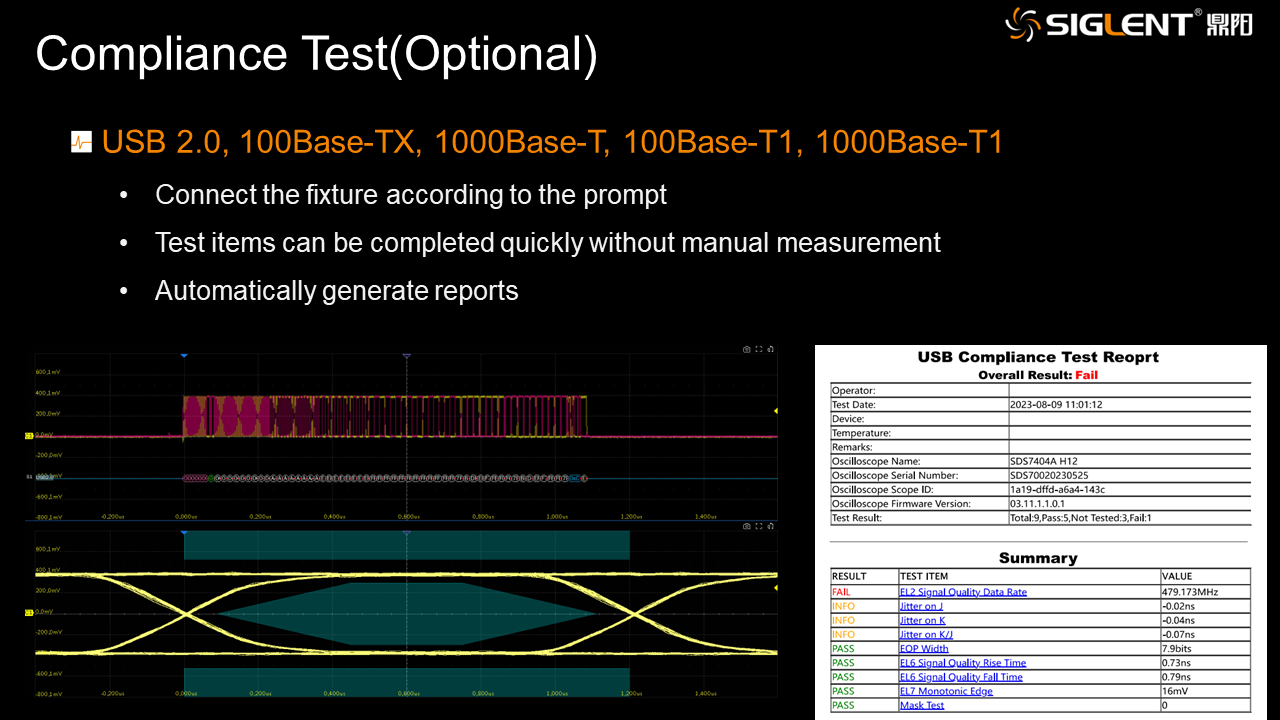

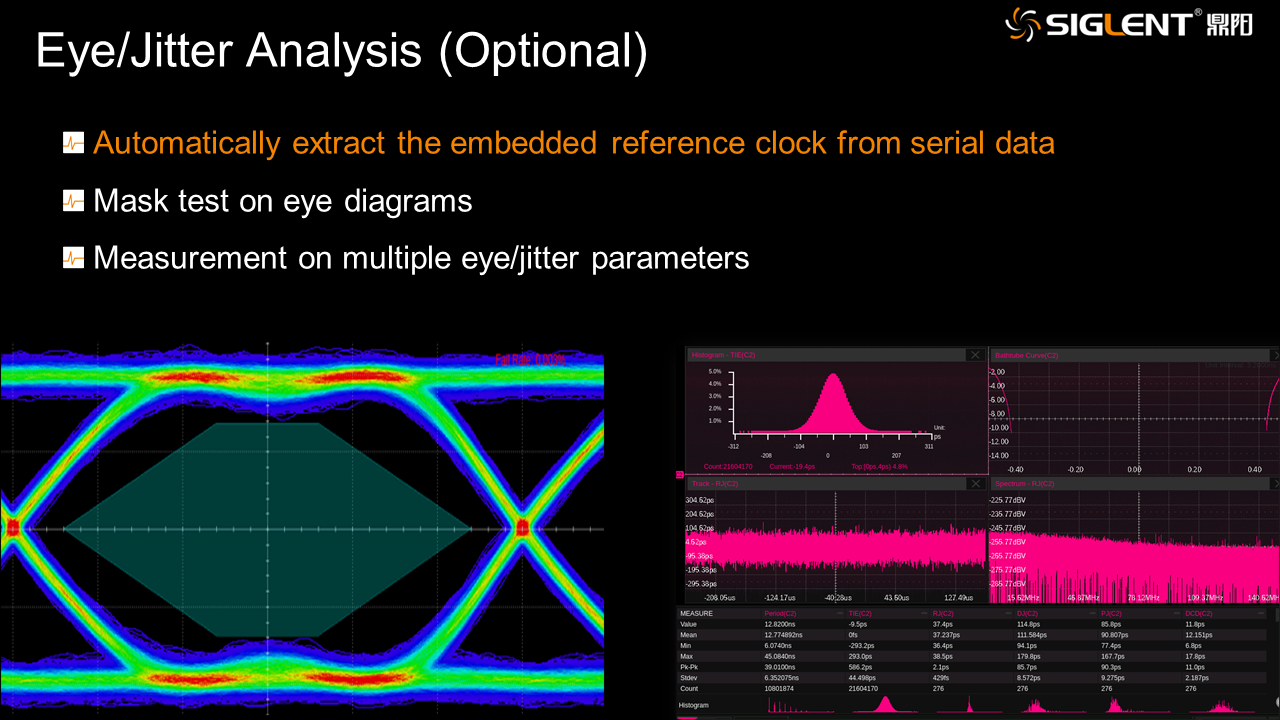

  Eye/Jitter Analysis and Compliance Test.

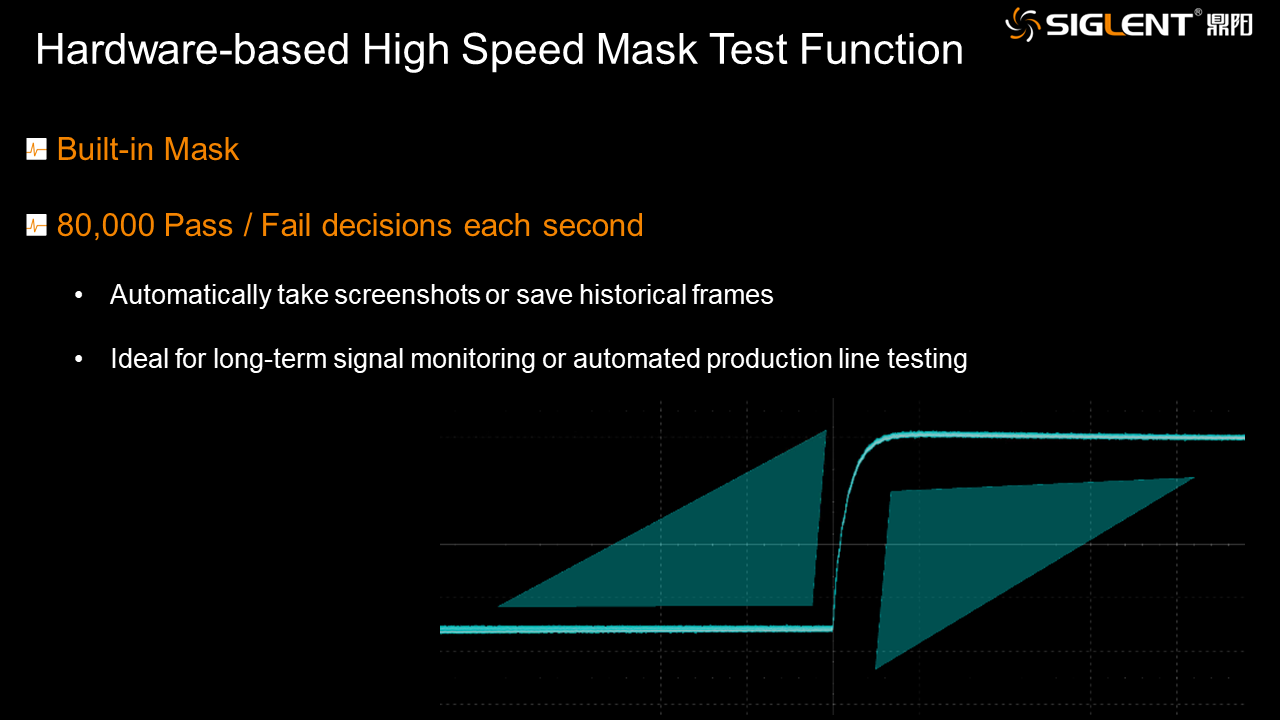

• High Speed hardware based Average, Hi Res ; High
  Speed hardware based Mask Test function, with Mask
  Editor tool for creating user defined masks.
• 16 digital channels (optional).

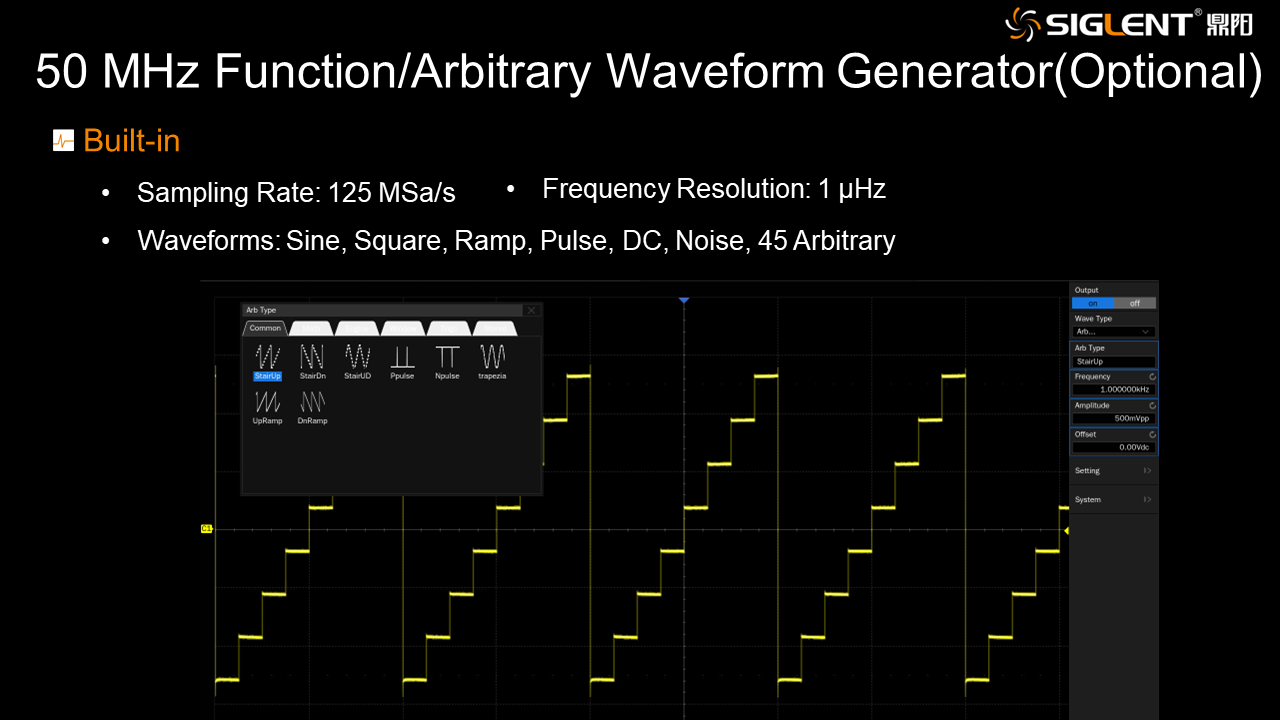

• Built in 50 MHz waveform generator

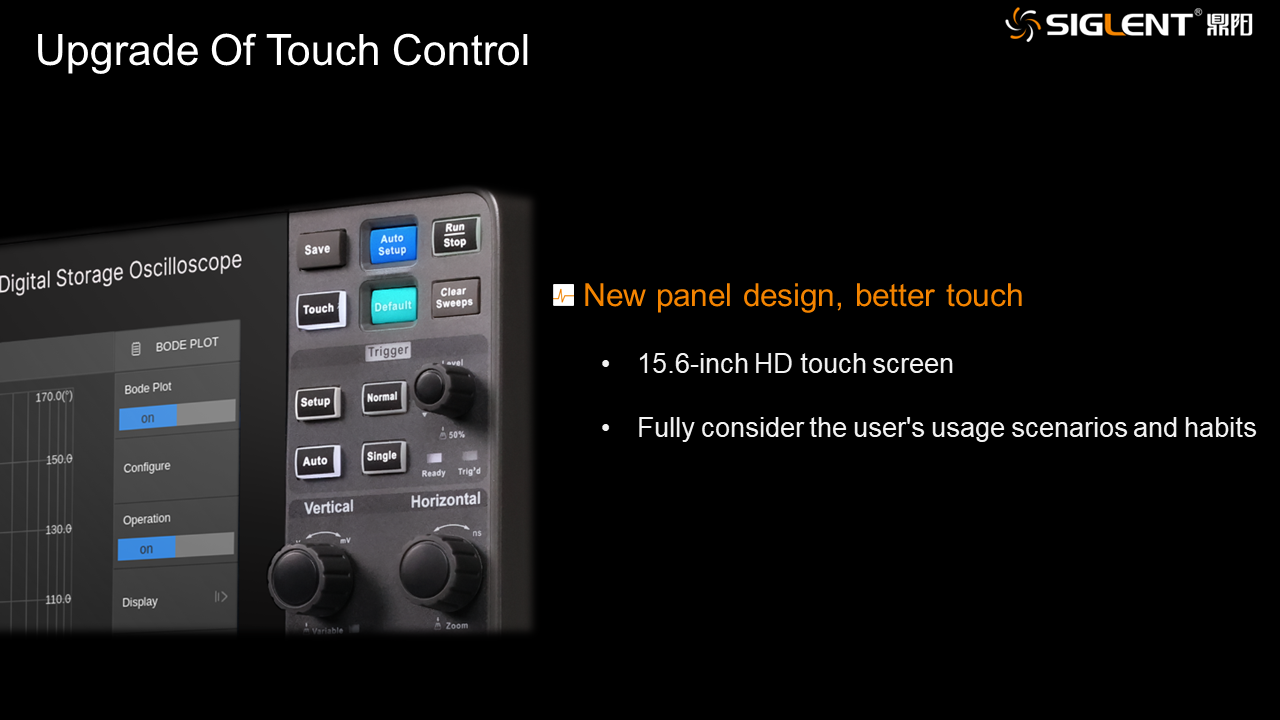

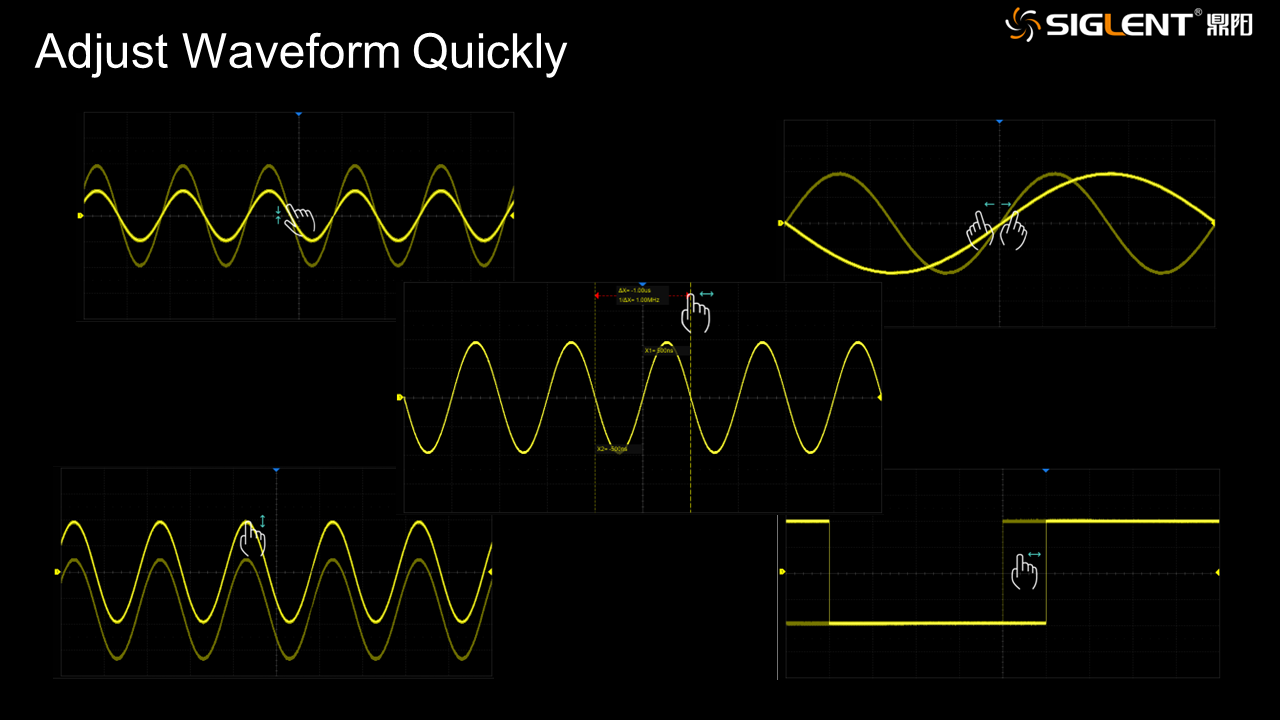

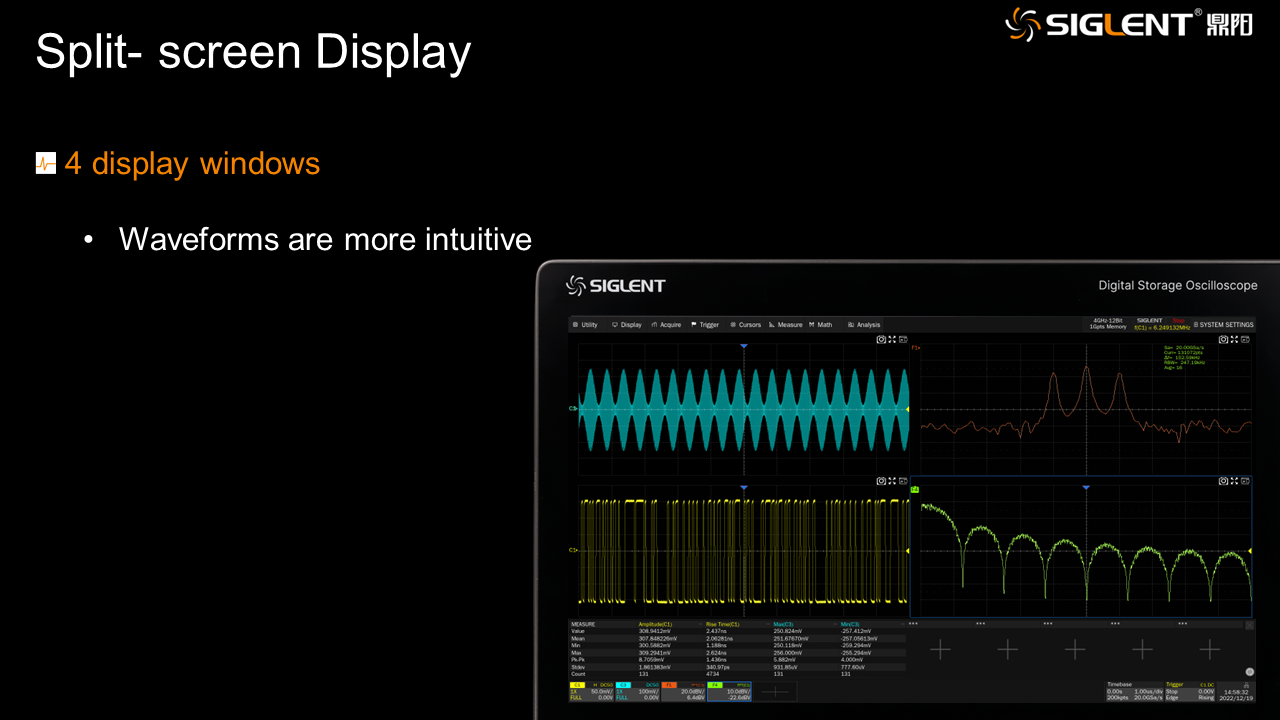

• Large 15.6 HD TFT LCD display with 1920 * 1080
  resolution; Capacitive touch screen supports multi touch
  gestures.

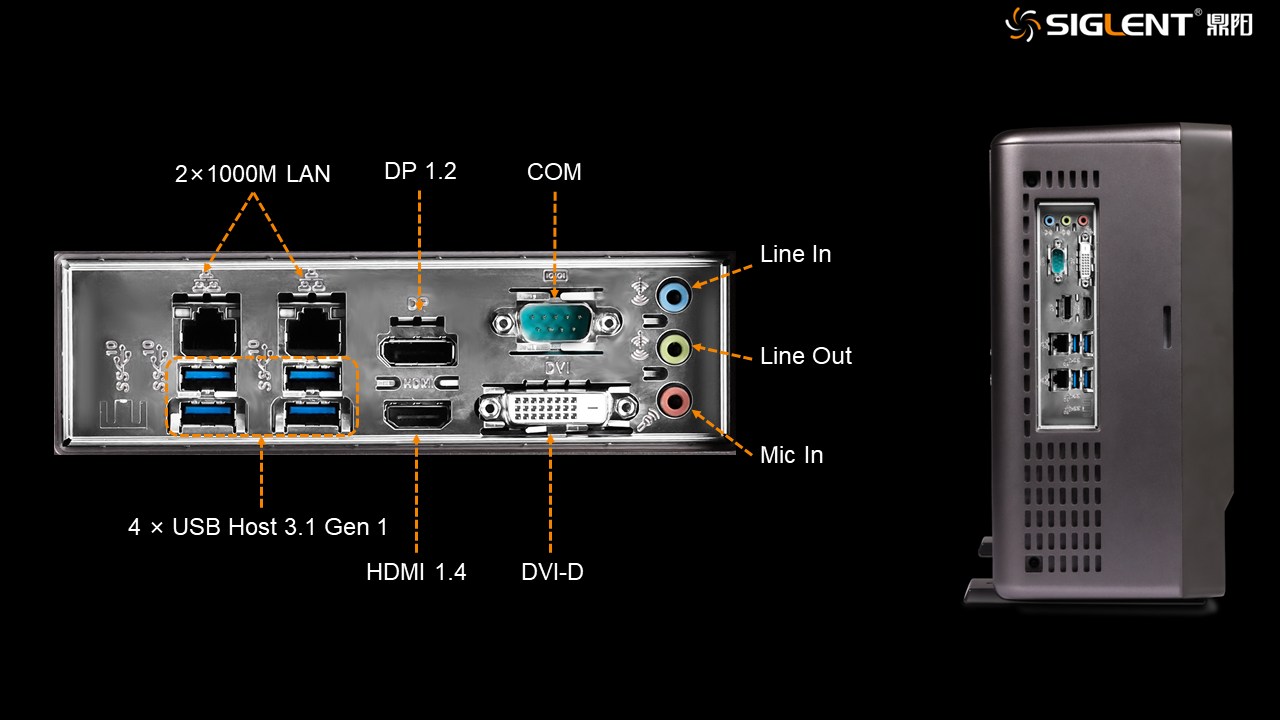

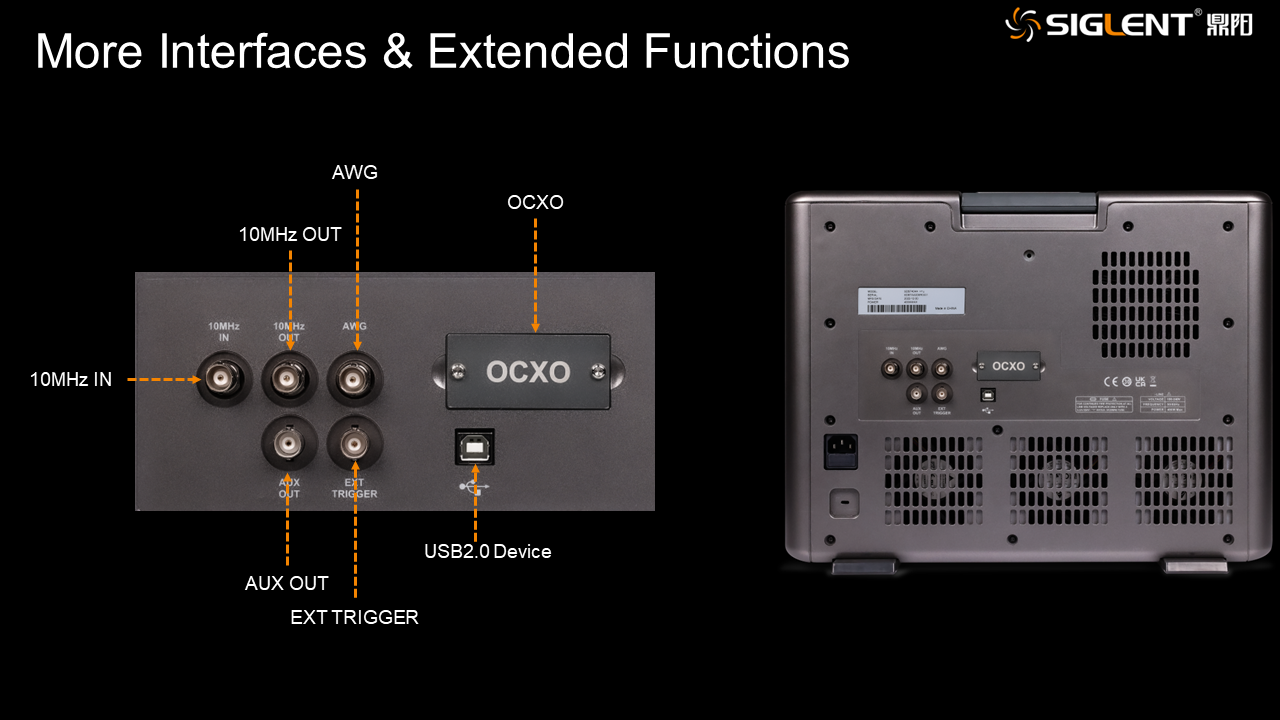

• Interfaces include : 4x USB Host 3.1 Gen 1 1，2x USB 3.0
  Host，USB 2.0 Device Device, 2x 1000M LAN LAN，DVI DD，DP 1.2 1.2，HDMI 1.4 1.4，Audio, External Triger In , Aux Out ( Pass/Fail, Trigger Out )), 10 MHz In In，10 MHz Out.
• Built in web server supports remote control over the LAN
  port using a web browser . Supports SCPI remote control
  commands . Supports external mouse and keyboard

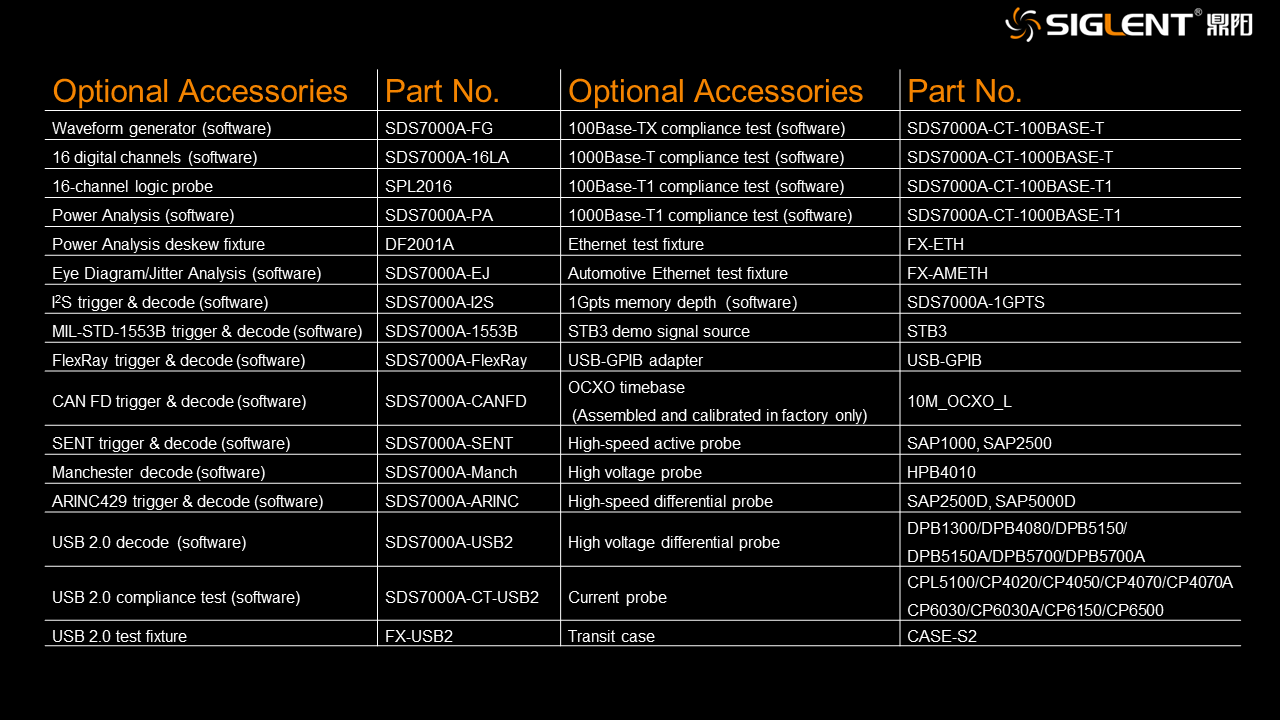

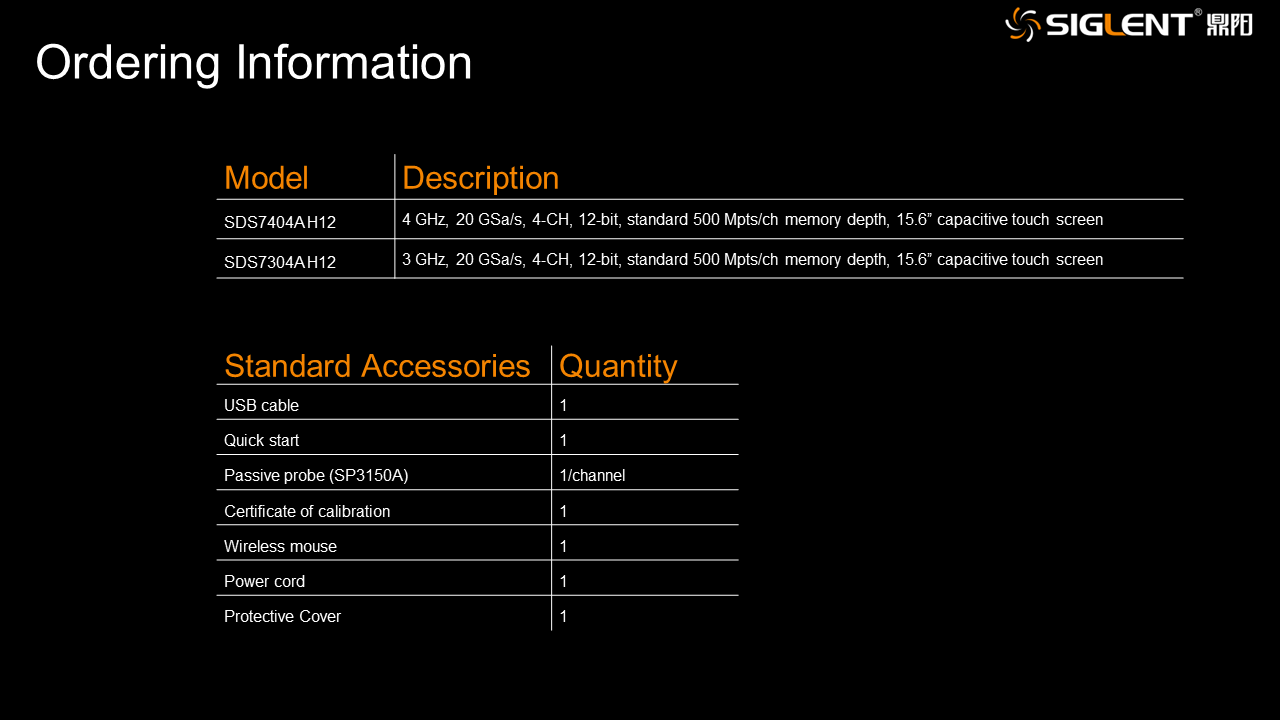

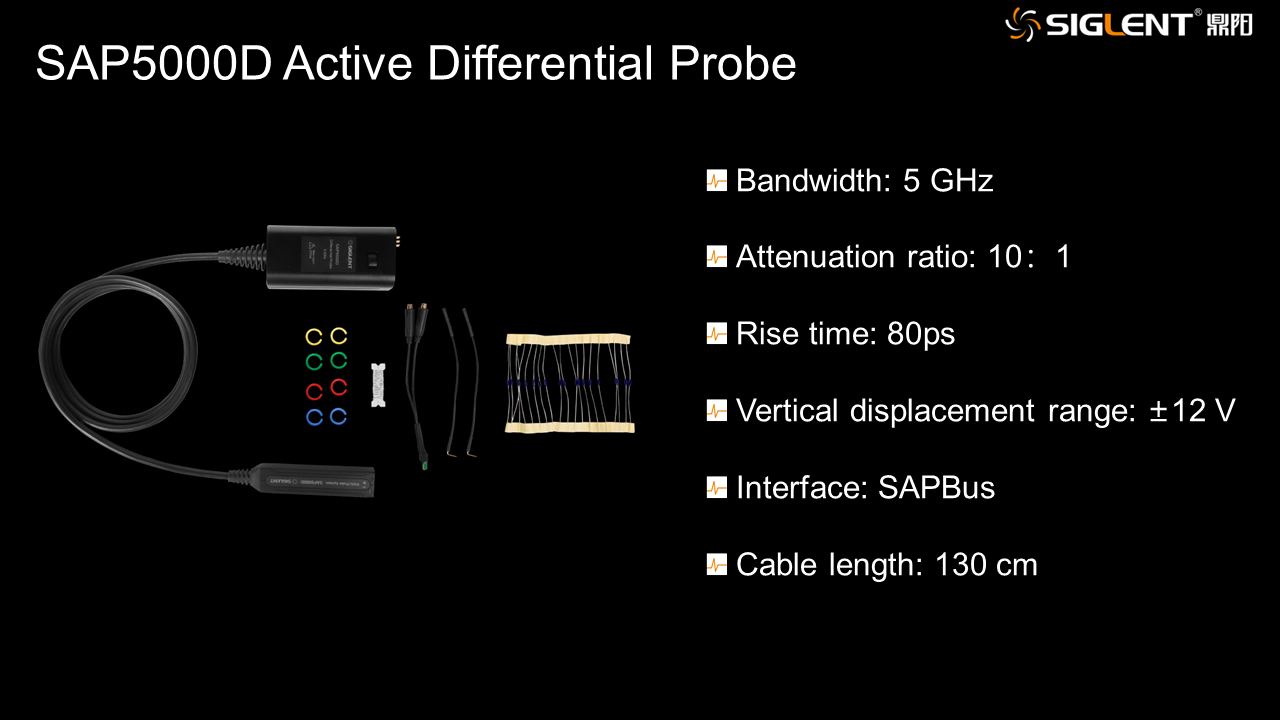

Accessories Included
