- Basic accuracy up to ±0.05%
- Automatic Level Control (ALC)
- Output impedance 25Ω/100Ω, switchable
- Support meter mode and list mode
- Ultra-high measuring speed < 3ms
- Open circuit/short circuit/load correction function
- Comparator function
- BIN classification function
- Built-in the Permeability-μr
- Built-in the Dielectric constant-εr

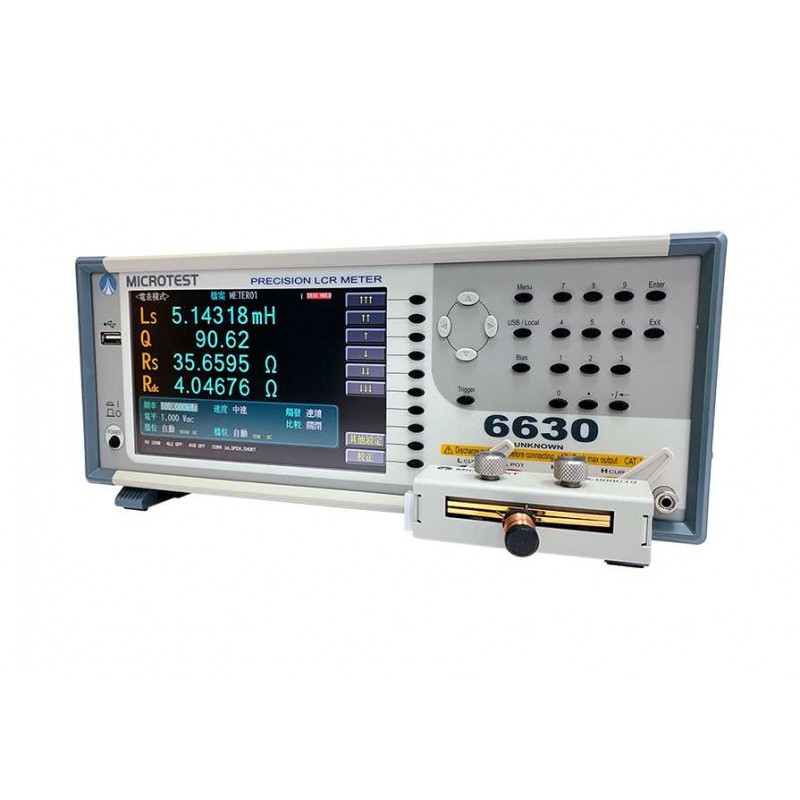

MICROTEST 6630 LCR Tester provides a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability). With a measurement speed of up to 3mS, it is an excellent choice for automated inductor testing. It supports LAN/USB Host/USB Device/RS-232 communication interfaces, making it compatible with automation equipment or human-machine interfaces (PLC).
Specifications
Selection
| 6630 Series |
| Model |
6630-1 |
6630-3 |
6630-5 |
6630-10 |
6630-20 |
6630-30 |
6630-50 |
| Frequency |
10Hz-
1MHz
|
10Hz-
3MHz
|
10Hz-
5MHz
|
10Hz-
10MHz
|
10Hz-
20MHz
|
10Hz-
30MHz
|
10Hz-
50MHz
|
SPEC
| Model |
6630 |
| Frequency Range |
10Hz-50MHz |
| Frequency Setting |
Continuity |
| Frequency Resolution |
±0.01% |
| Frequency Output Accuracy |
100mHz, 6-bit Frequency Input |
| Basic Accuracy |
typical ±0.05% |
| AC Drive Level |
Test Signal Voltage Level |
10mV - 2Vrms(100Ω)
10mV - 1Vrms(25Ω)
|
| Voltage Minimum Resolution |
1mV |
| Accuracy |
ALC ON：6％ * Voltage ±2mV
ALC OFF：10％ * Voltage ±2mV
|
| Test Signal Current Level |
200µA - 20mArms |
| Current Minimum Resolution |
10µA |
| Accuracy |
ALC ON：6％ * Current ± 20µA
ALC OFF：10％ * Current ± 20µA
|
| DC Drive Level |
1V (fixed) |
| Output Impedance |
25Ω/100Ω (switchable) |
| Measurement Mode |
Meter mode, list mode |
| Measurement Parameters |
|Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、ε and μr
|
| Test Time (Fastest) |
< 3mS |
Measurement Parameters
| Parameters |
Range |
| |Z| |
0.000 mΩ to 9999.99 MΩ |
| R, X |
± 0.000 mΩ to 9999.99 MΩ |
| |Y| |
0.00000 μS to 999.999 kS |
| G, B |
± 0.00000 μS to 999.999 kS |
| θRAD |
± 0.00000 to 3.14159 |
| θDEG |
± 0.000° to 180.000° |
| Cs, Cp |
± 0.00000 pF to 9999.99 F |
| Ls, Lp |
± 0.00 nH to 9999.99 kH |
| D |
0.00000 to 9999.99 |
| Q |
0.00 to 9999.99 |
| Δ |
± 0.00% to 9999.99% |
| Rdc |
0.00 mΩ to 99.9999 MΩ |
| εr' εr'' |
0 to 100000 |
| μr' μr'' |
0 to 100000 |
System
| Measurement Circuit |
Series/Parallel |
| Correction |
Open Circuit/Short Circuit/Load correction |
| Cable Compensation |
0 / 0.5 / 1 /2 (m) |
| BIN |
ABS、ΔABS、Δ%、OFF |
| Comparator |
9 |
| List Mode |
50 groups of Multi-steps setting (Each group contains up to 15 steps) |
| Bulit-in Storge |
100 sets LCR setting documents, 50 groups of list mode setting |
| USB Host Storge |
LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data |
| Trigger Test |
Auto, manual, RS-232, Handler |
| Power Supply |
Voltage：90-264Vac |
| Frequency：47-63Hz |
| Power consumption |
30VA |
| Environment |
Temperature：10℃-40℃ |
| Humidity：20-90%RH |
| Dimension |
336x147x340 mm (W*H*D) |
| Weight |
3 Kg |
| Interface |
RS-232、Handler、LAN、USB Host、USB Device |
| Display |
Color Screen, 7" TFT (800*480) |
Starting July 1, 2025, the 6630 and 6360 series will no longer include GPIB as a standard interface.
Please consider using LAN, USB, or RS-232 for control. We appreciate your understanding.
