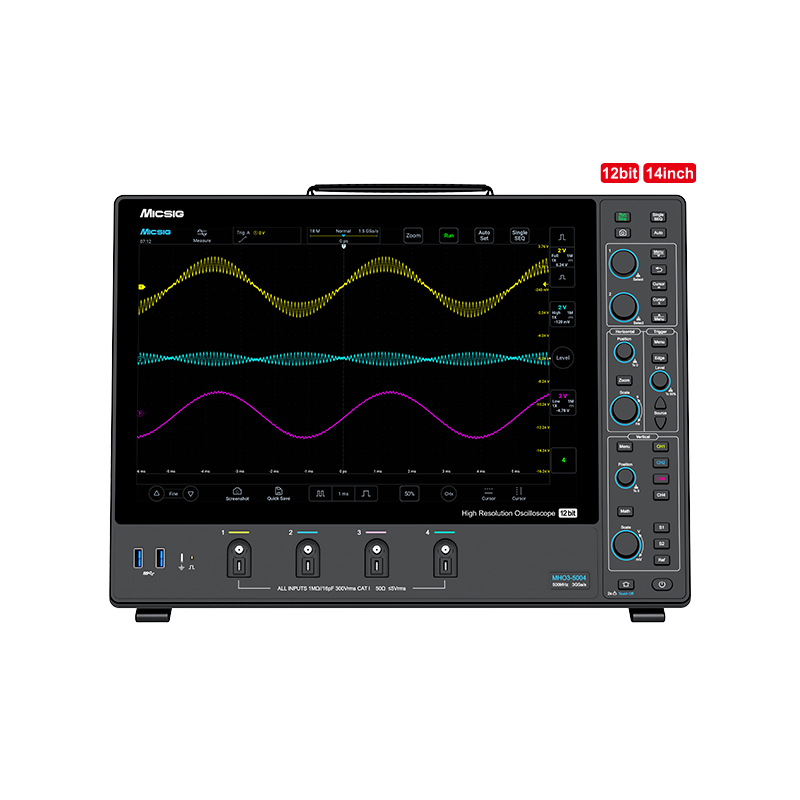

Micsig MHO3-3504 4-channel oscilloscope with 350 MHz bandwidth, 12-bit resolution

MHO3-3504
Micsig

High resolution 4-channel oscilloscope with 350 MHz bandwidth, 3 GSa/s sampling rate, 360 Mpts memory depth and 12-bit resolution

$4,851.00
Quantity
Buy now, get it in two-week

Description

The high-resolution 12-bit oscilloscopes of the MHO 3 series offer 4 analogue channels, 250, 350 or 500 MHz bandwidth, a 3 GSa/s sampling rate and a memory depth of 360 Mpts.

The Micsig MHO3-3504 has a 14 inch integrated touchscreen display with 1,920 x 1,200 pixels, combined with Micsig's 10+ years of experience in touch control technology the MHO series takes the touch experience to a new level.

The Micsig MHO3-3504 comes in a compact format and features comprehensive measurement and maths operation functions and supports triggering and decoding.

It is also equipped with digital hardware filter modules and other functions.

SpecificationsMHO3-2504MHO3-3504MHO3-5004
Channels 4 4 4
Bandwidth 250 MHz 350 MHz 500 MHz
Vertical resolution 12 bit 12 bit 12 bit
Real-time sampling rate 3 GSa/s 3 GSa/s 3 GSa/s
Max. waveform capture rate 230,000 wfms/s 230,000 wfms/s 230,000 wfms/s
Memory Depth 360 Mpts 360 Mpts 360 Mpts
Std. bus decoding RS-232/422/485/UART, CAN, CAN FD,
LIN, SPI, I²C, ARINC-429, MIL-STD-1553B		 RS-232/422/485/UART, CAN, CAN FD,
LIN, SPI, I²C, ARINC-429, MIL-STD-1553B		 RS-232/422/485/UART, CAN, CAN FD,
LIN, SPI, I²C, ARINC-429, MIL-STD-1553B

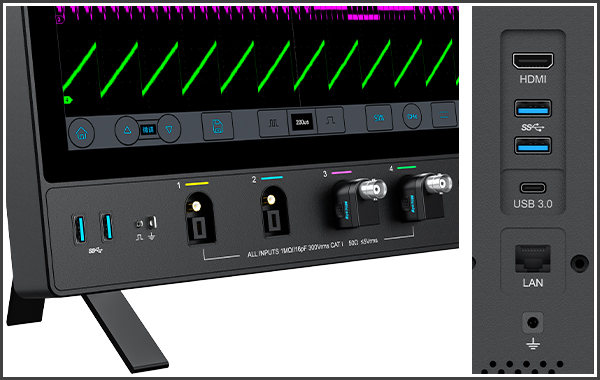

Interfaces USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out USB 3.0 Host, USB Typ C, LAN, HDMI, Trigger out
Display 14" full touch display, 1920 x 1200 resolution 14" full touch display, 1920 x 1200 resolution 14" full touch display, 1920 x 1200 resolution
Dimensions / Net Weight 400 x 280 x 35.8 mm / 4.3kg 400 x 280 x 35.8 mm / 4.3kg 400 x 280 x 35.8 mm / 4.3kg

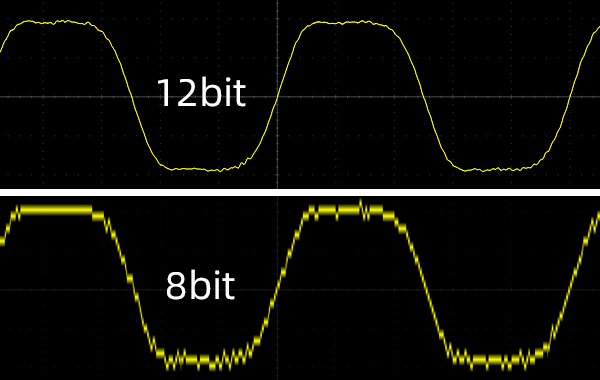

12-bit Vertical Resolution

The MHO 3 series has 12-bit high-resolution ADC with a quantization level of up to 4096, which is 16 times that of traditional 8-bit ADC, helping users to observe waveform details more comprehensively and clearly.

Comprehensive selection of probes

In addition to the standard passive probes, the MHO 3 series supports connection to all Micsig probes: optical-fiber isolated probe, high-voltage differential probes, and AC/DC current probes, such combination can maximize the performance of the probe and oscilloscope.

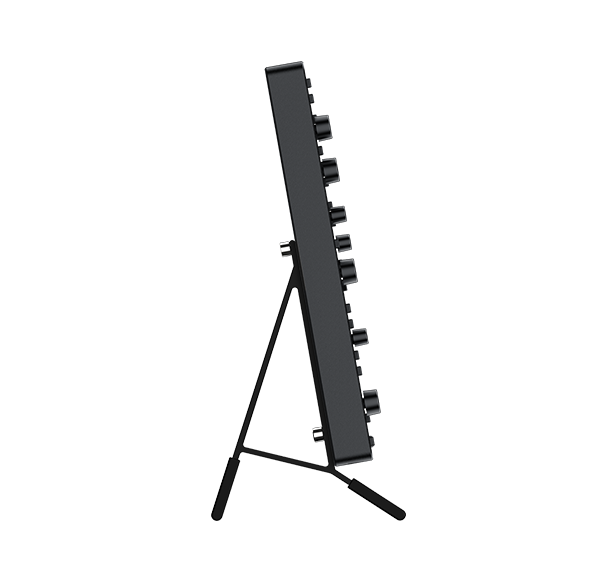

Space saving and universally mountable

Can be mounted with standard wall brackets or table stands thanks to VESA, takes up very little space on the table due to its shallow depth.


Product Details
MHO3-3504

Data sheet

Bandwidth
500MHz
