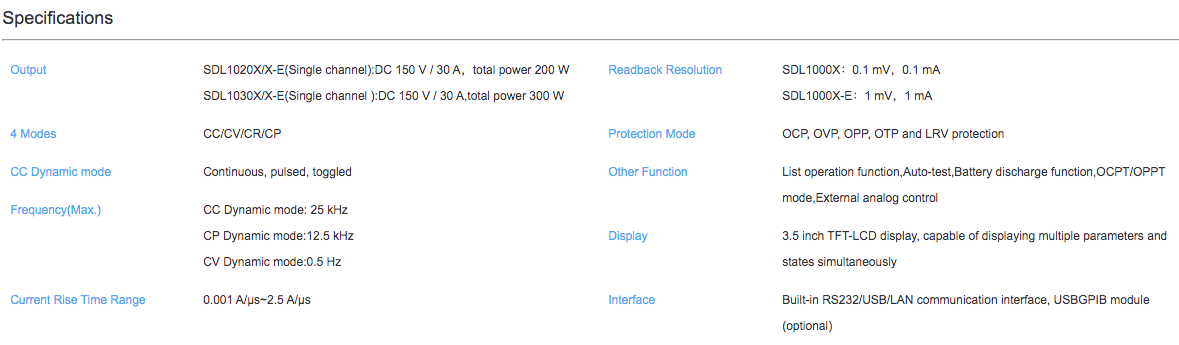

Main Features
CC Dynamic mode: Continuous, pulsed, toggled
CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
Measuring speed of voltage and current: up to 500 kHz
Adjustable current rise time range: 0.001 A/us~2.5 A/us
Siglent 3-year Standard Warranty

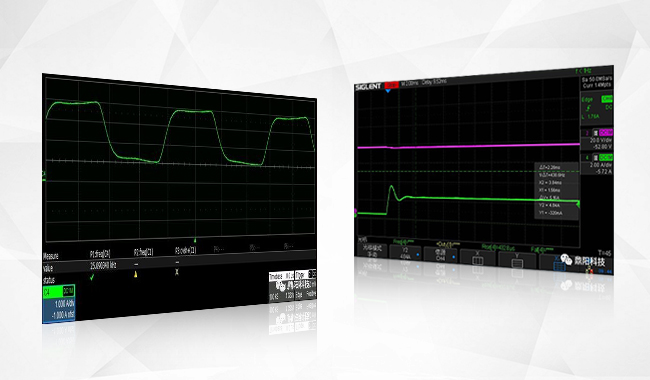

The dynamic test function allows the load to switch between the two set parameters according to the set rules, thereby testing the dynamic characteristics of the device under test. The SDL1000X can be set to a maximum frequency of 25 kHz in CC dynamic mode. The current probe can track current changes at high speed and analyze current waveforms. In CV mode, the voltage can be quickly and stably set to test the fast output capability of the power supply. If the instantaneous power exceeds the protection set value, it will enter the hiccup protection state.

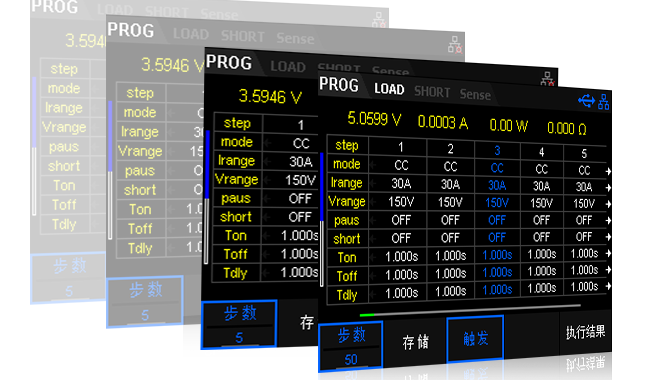

The Program function can simulate multiple tests such as CC, CV, CR, CP, LED, etc. A total of 10 test files can be edited, and each test file supports up to 50 steps.

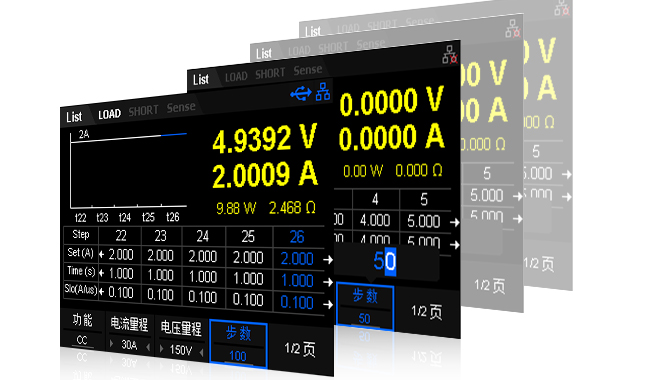

The List function supports load-built multi-step, timed, and test environments with different load states. By editing the step values, pulse widths, and slopes of a single step, the load can generate a variety of complex sequence combinations to meet different test needs.
Based on the traditional CR mode, the SDL1000X adds the turn-on voltage setting of the diode, which can simulate the working state of the real diode and measure the chopping current during the LED test.

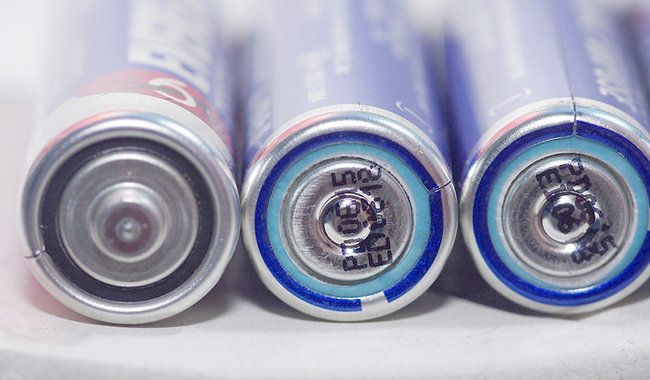

The battery test function can effectively reflect the reliability and remaining life of the battery. The battery was subjected to a discharge test by setting termination conditions such as termination voltage, discharge capacity, and discharge time using CC, CP, and CR modes.
Reference: M9713
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 600W 0-150V 0-120A
Reference: N8361
Brand: NGI
●Voltage Range:0~20V ●Current Range:-10A~+10A ●Single channel power up to 200W ●Voltage rise and fall time ≤50μs ●Current Accuracy up to 1μA ●High precision DVM ●Support front and rear outlet, easier for desktop & integration ●With digital I/O, supporting trigger test ●LAN/RS232/CAN Interface
Reference: M9717B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: N69200
Brand: NGI
N69200 series is a high performance high power programmable DC electronic load with high reliability, high precision and multi-function. N69200 series has three voltage specifications: 150V, 600V, and 1200V. A standard 19”3U chassis can be up to 6kW. It supports parallel control and can realize power expansion through master+master and master+slave....
Reference: EL33133A
Brand: Keysight
Outputs / inputs: 1; 2 isolated and independent inputs Maximum voltage: 0 to 150 V; 0 to 150 V per input Maximum current: 0 to 40 A; 0 to 60 A; 0 to 60 A per input; 120 A in parallel Input power: 250 W; 350 W; 300 W per input; 600 W total Operating modes: CC, CV, CR and CP Connectivity / interface: USB; LAN and USB Call for Price. Contact AppVision...
Reference: N3300A
Brand: Keysight
Slots / capacity by model: N3300A: 6; N3301A: 2 Maximum voltage by model: N3302A: 0 to 60 V; N3303A: 0 to 240 V; N3306A: 0 to 60 V; N3307A: 0 to 150 V Maximum current: 0 to 30 A; 0 to 10 A; 0 to 60 A; 0 to 120 A Input power: 150 W; 250 W; 500 W; 600 W Chassis format: Full rack; Half rack Call for Price. Contact AppVision Australia. N3300A N3301A N3302A...
Reference: N62400
Brand: NGI
N62400 series is developed based on NGI's years of experience in testing for fuel cell. It is with high accuracy, high reliability and high cost performance. N62400 can load high current under ultra-low voltage. The minimum operating voltage when loading 1200A can be low to 0.2V. It is designed in a 19 inch 3U chassis, which is available for benchtop use...
Reference: M9712C
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 300W 0-150V 0-60A
Reference: AC/DC Source and Load
Brand: BriPower
· Compact modular design, 15KVA in 4U · Bi-directional design · Output: AC, DC, AC+DC · Single unit: maximum 15KW, 450V L-N, 30A/ph, DC-1KHz output · Single phase, 3-phase, split phase, and multi-channel output · Various modes: Regenerative AC/DC source, regenerative AC/DC load, BiPolar DC source · Regenerative RLC load in full frequency range · True...
Reference: M9834
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Over-current, over-voltage, overpower, overheating, and polarity reversal protection Available with RS232/RS485/USB serial interfaces. Supports remote voltage compensation and multi-data storage 10 kW 0-150V 0-500A
Reference: M9718B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-500V 0-120A
Reference: DC Power Supply/E-Load
Brand: BriPower
· Output Power: 100kW/150kW/200kW/250kW/300kW · Output Voltage: 1000V/1500V/2000V · Output Current: *2 / *3 / *4 · Auto-Ranging Output · Soft start: effectively restrain the impulse current when power on · Seamless transition between source and sink modes · Current rise time (0% -90%) <5ms · CC/CV/CP/CR mode available · Regenerative DC load function
Reference: N61100
Brand: NGI
N61100 series is a multi-channel DC programmable electronic load, with high reliability, high integration, high cost performance and full features. It is tailored for integrated applications, featuring in high communication response speed and high stability. N61100 series is with 19-inch 3U size, up to 12 channels, and supports LAN, RS232, and RS485...
Reference: M9715
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-150V 0-240A
Reference: M9717
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 3600W 0-150V 0-240A
Reference: M9715B
Brand: Maynuo
Features: Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CV Battery test and short-circuit test functions Available with RS232/RS485/USB serial interfaces. 1800W 0-500V 0-120A
Main Features
CC Dynamic mode: Continuous, pulsed, toggled
CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz
Measuring speed of voltage and current: up to 500 kHz
Adjustable current rise time range: 0.001 A/us~2.5 A/us
Siglent 3-year Standard Warranty
